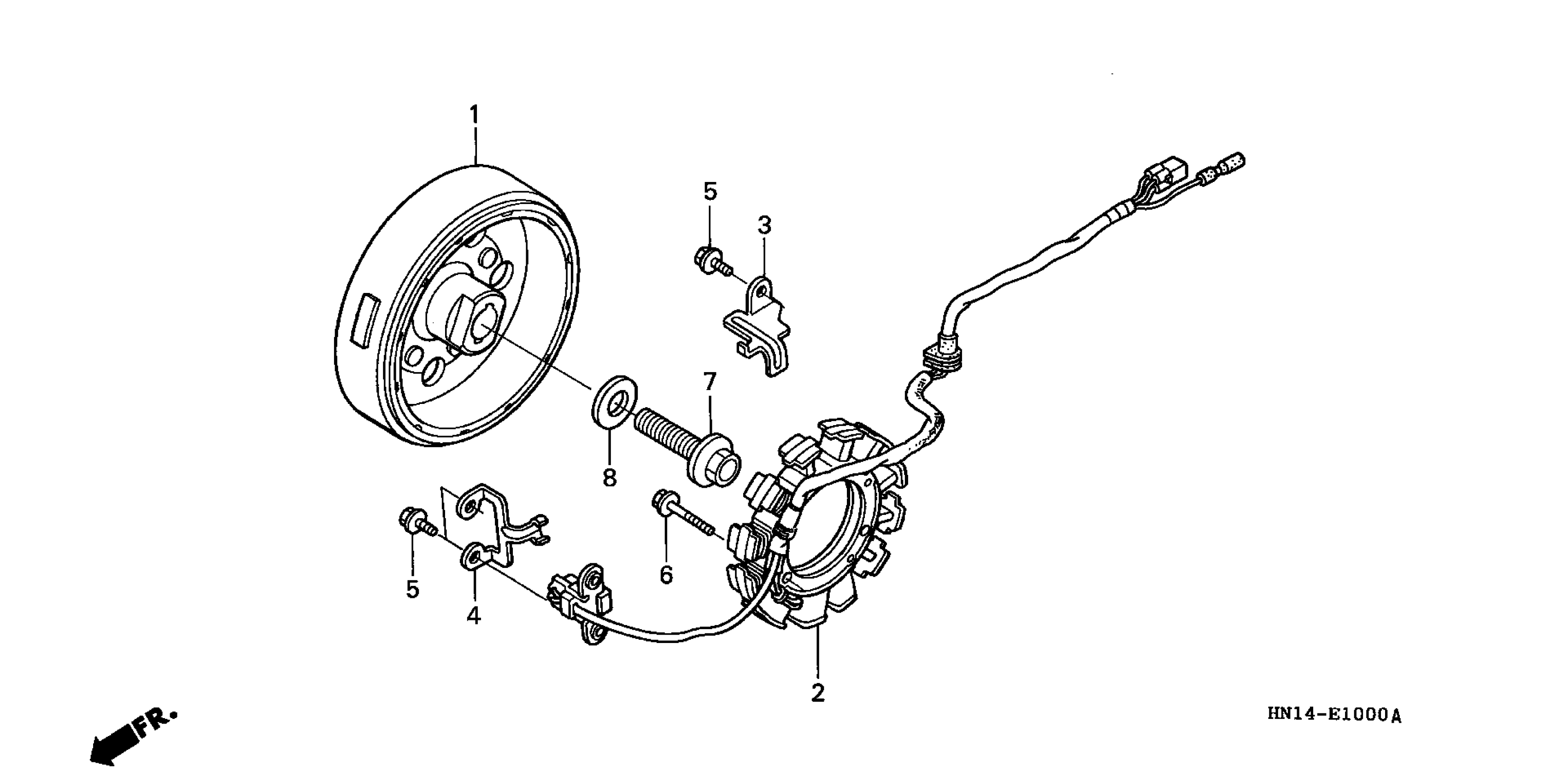

Honda TRX400EXA (06) SPORTRAX 400EX, USA, VIN# 1HFTE230-64600001 ALTERNATOR Diagram

#

Description

Price

1

FLYWHEEL

31110-HN1-003

$371.38

2

STATOR

31120-HN1-A41

$298.72

3

CLAMP, WIRE

32111-KCY-670

$8.61

4

CLAMP, PULSE GENERATOR WIRE

32112-KCY-670

$9.90

5

BOLT, FLANGE (6X16) (NSHF)

90004-GHB-630

$3.26

6

BOLT, FLANGE (6X28) (NSHF)

90004-GHB-680

$3.10

7

BOLT, FLANGE (12X50)

90023-471-000

$12.42

8

WASHER (12.5X30X5)

90401-KCY-670

$7.44
