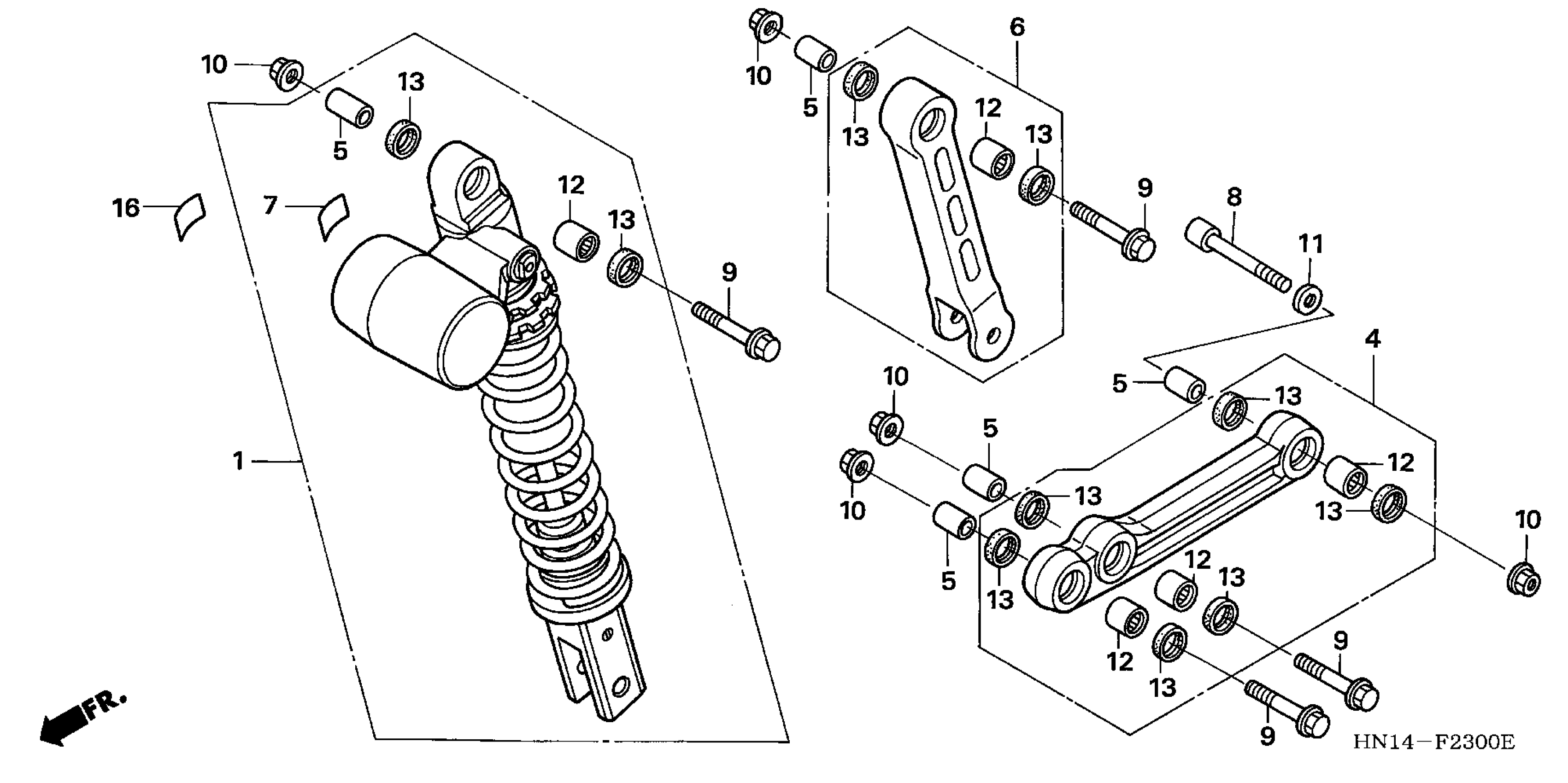

Honda TRX400EXA (04) SPORTRAX 400EX, USA, VIN# 478TE230-44400001 TO 478TE230-44499999 REAR SHOCK ABSORBER Diagram

#

Description

Price

1

SHOCK ABSORBER ASSY., RR.

52400-HN1-013

Unavailable

4

ARM SUB-ASSY., CUSHION This part replaces 52465-HN1-000.

52465-HN1-A40

$101.80

4

ARM SUB-ASSY., CUSHION

52465-HN1-A40

$101.80

5

COLLAR C, CUSHION ARM

52465-MY1-000

$5.50

6

ROD SUB-ASSY., CUSHION CONNECTING

52475-HN1-A20

$81.54

7

LABEL, RR. DAMPER

87516-KV6-610

$4.49

8

BOLT, RR. CUSHION

90105-KW6-840

$5.04

9

BOLT, SPECIAL FLANGE (10X58)

90153-965-000

$6.40

9

BOLT, SPECIAL FLANGE (10X58) This part replaces 90153-965-010.

90153-965-000

$6.40

10

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.80

11

WASHER, PLAIN (10MM)

90501-HN1-000

$2.87

12

BEARING, NEEDLE (17X24X17) (KOYO)

91071-MY1-005

$17.67

13

DUST SEAL (17X24X5) (ARAI)

91262-KV3-831

$5.77
