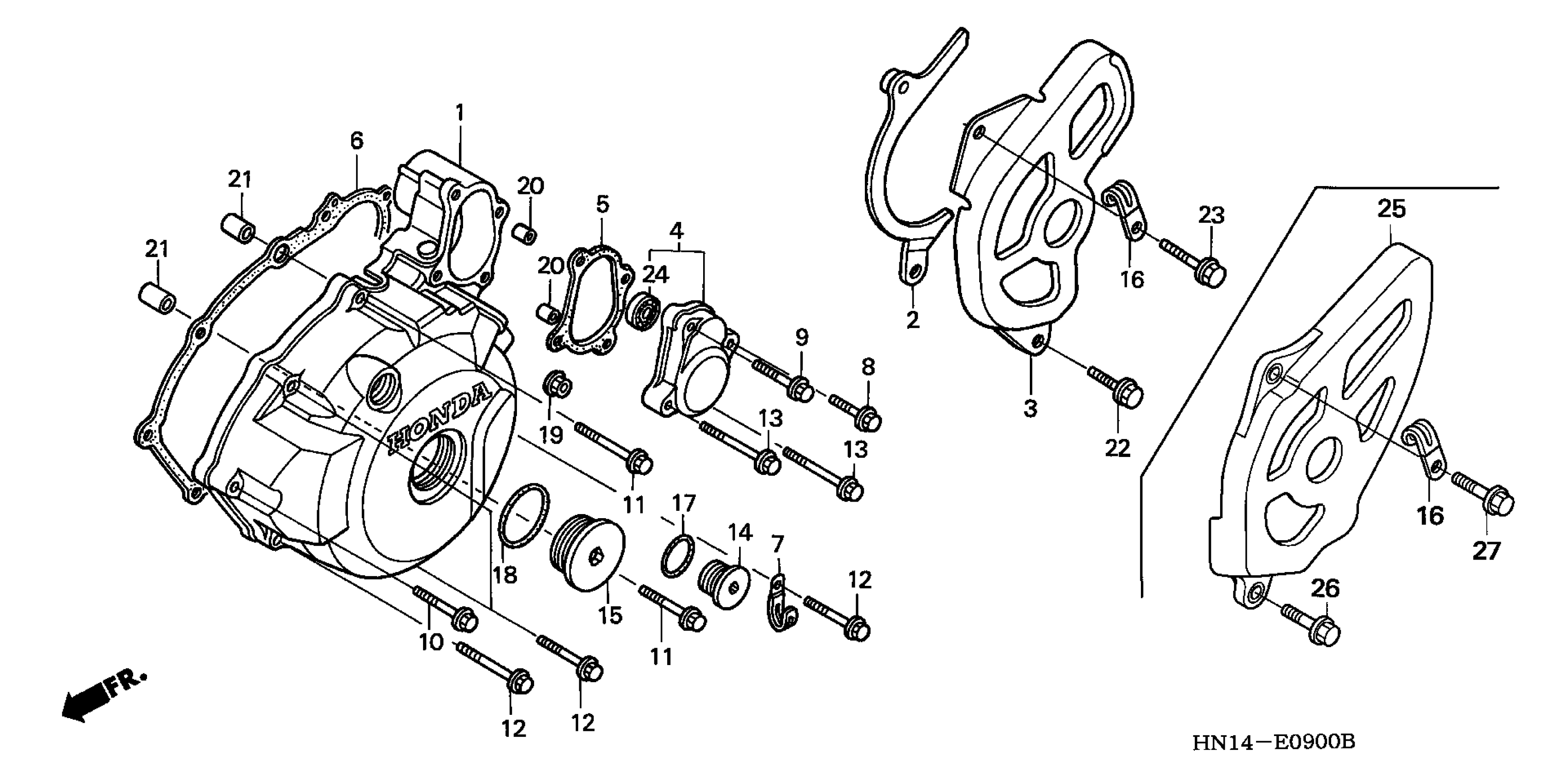

Honda TRX400EXA (04) SPORTRAX 400EX, USA, VIN# 478TE230-44400001 TO 478TE230-44499999 LEFT CRANKCASE COVER Diagram

COVER, L. CRANKCASE

11340-HN1-000

$191.84

GUIDE, DRIVE CHAIN

11352-HN1-000

Unavailable

COVER, DRIVE SPROCKET

11360-HN1-000

Unavailable

COVER, STARTER

11370-HN1-000

Unavailable

GASKET, STARTER COVER This part replaces 11377-HN1-000.

11377-HN1-010

$2.94

GASKET, L. COVER This part replaces 11395-KCY-671.

11395-KCY-673

$18.20

CLIP, PULSER WIRE

32925-958-000

$2.72

BOLT, FLANGE (6X28) (NSHF)

90004-GHB-680

$3.10

BOLT, FLANGE (6X35) (NSHF)

90004-GHB-700

$3.79

BOLT, FLANGE (6X40) (NSHF)

90004-GHB-710

$3.79

BOLT, FLANGE (6X50) (NSHF)

90004-GHB-730

$3.95

BOLT, FLANGE (6X60) (NSHF)

90004-GHB-750

$3.77

BOLT, FLANGE (6X65) (NSHF)

90004-GHB-760

$5.19

CAP (14MM)

90084-MN8-010

$11.50

CAP (30MM)

90087-HB5-000

$14.98

CLIP (4X50)

90601-KJ9-000

$2.87

O-RING (13.8X2.5)

91303-377-000

$3.18

O-RING (27X2) (ARAI)

91305-KF0-003

$2.80

NUT, FLANGE (6MM)

94050-06000

$0.59

PIN, DOWEL (8X14)

94301-08140

$2.04

PIN, DOWEL (10X20)

94301-10200

$2.32

BOLT, FLANGE (6X18)

96001-06018-07

$1.14

BOLT, FLANGE (6X32)

96001-06032-07

$1.41

BEARING, RADIAL BALL (6000)

96100-60000-00

$7.56
