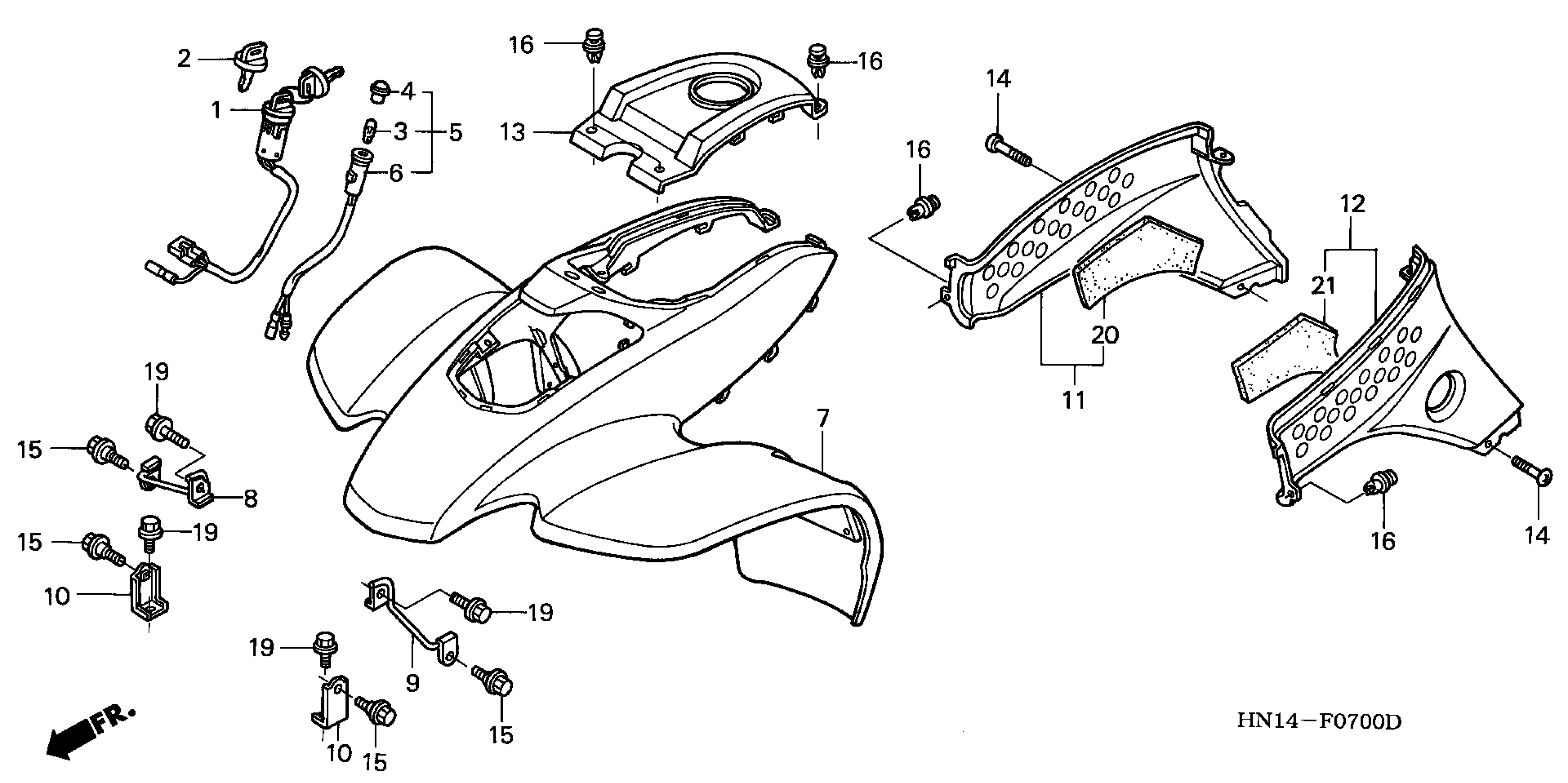

Honda TRX400EXA (04) SPORTRAX 400EX, USA, VIN# 478TE230-44400001 TO 478TE230-44499999 FRONT FENDER ('99-'04) Diagram

SWITCH ASSY., IGNITION

35100-HN1-000

$46.44

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional).

35121-HF1-881

$9.59

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional).

35122-HF1-881

$9.59

BULB (14V 3.4W) (NS) This part replaces 34908-GA7-701.

37237-SA5-003

$4.17

BULB (14V 3.4W) (NS) This part replaces 37102-567-009.

37237-SA5-003

$4.17

BULB (14V 3.4W) (NS)

37237-SA5-003

$4.17

BULB (14V 3.4W) (NS) This part replaces 37237-SA5-004.

37237-SA5-003

$4.17

LENS, NEUTRAL PILOT (GREEN)

37561-HF1-670

$10.74

INDICATOR ASSY., NEUTRAL

37570-HN1-000

Unavailable

WIRE

37572-HN1-000

Unavailable

FENDER, FR. *R134* (FIGHTING RED)

61100-HN1-000ZA

$238.25

FENDER, FR. *Y151R* (STARBURST YELLOW)

61100-HN1-000ZB

$248.05

STAY, R. FR. FENDER SUPPORT

61101-HN1-000

Unavailable

STAY, L. FR. FENDER SUPPORT

61102-HN1-000

$80.83

STAY, FR. FENDER

61103-HN1-000

$21.68

COVER ASSY., R. SIDE *NH1* (BLACK) This part replaces 83550-HN1-000ZA.

83550-HN1-A40ZA

$54.36

COVER ASSY., L. SIDE *NH1* (BLACK) This part replaces 83650-HN1-000ZA.

83650-HN1-A40ZA

$58.46

COVER, FUEL TANK TOP *R134* (FIGHTING RED)

83700-HN1-000ZA

$17.43

COVER, FUEL TANK TOP *Y151R* (STARBURST YELLOW)

83700-HN1-000ZB

$18.57

SCREW, SPECIAL (6X8)

90102-HN5-670

$1.49

BOLT, FLANGE (6MM)

90111-187-000

$5.59

CLIP, SPLASH GUARD

90653-HC4-900

$1.49

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

MAT, R. SIDE COVER

83506-HN1-300

$7.27

MAT, L. SIDE COVER

83606-HN1-300

Unavailable
