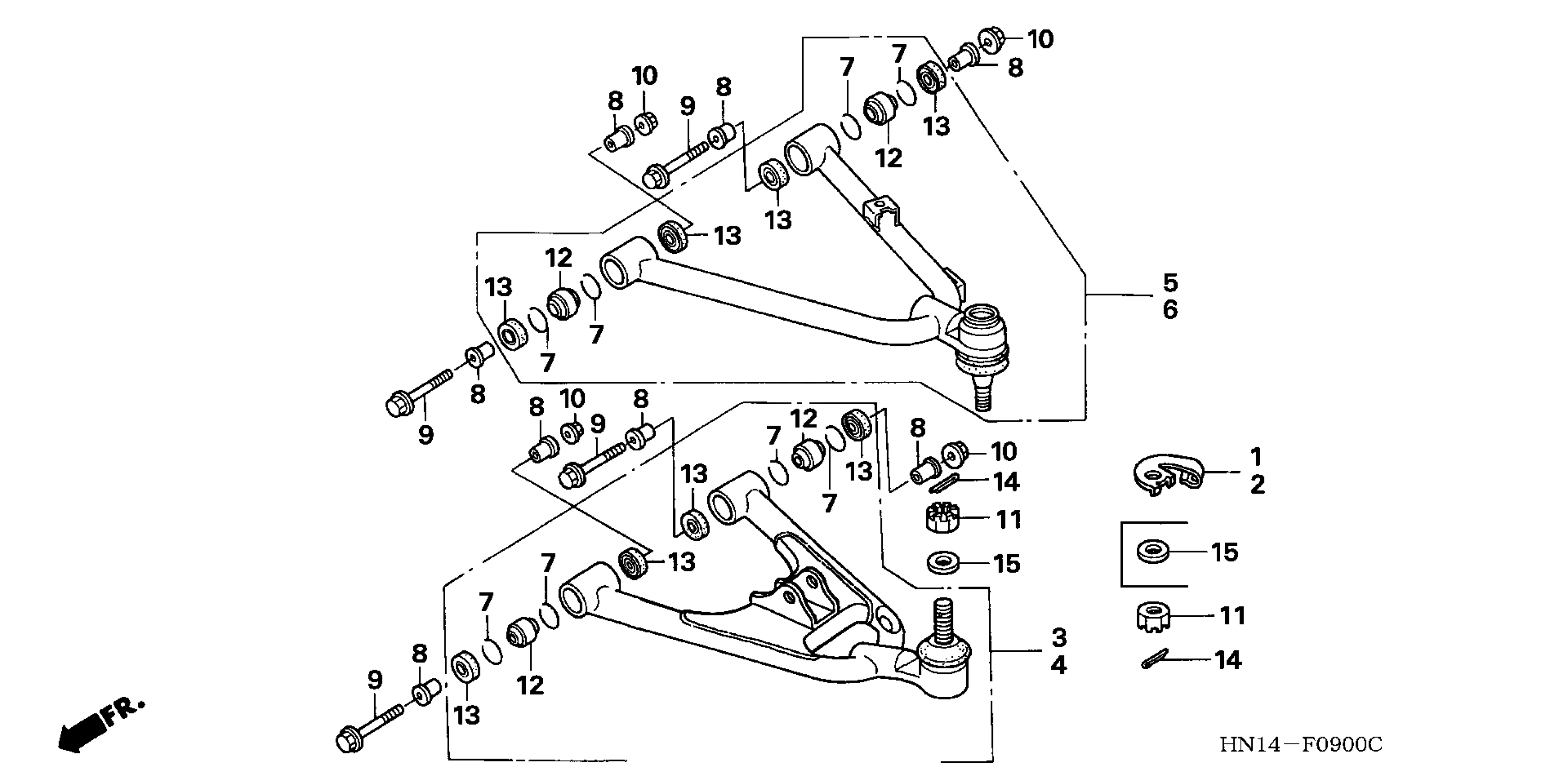

Honda TRX400EXA (04) SPORTRAX 400EX, USA, VIN# 478TE230-44400001 TO 478TE230-44499999 FRONT ARM Diagram

#

Description
Price

1

CLAMP A, R. FR. BRAKE HOSE

45462-HN1-000

Unavailable

2

CLAMP A, L. FR. BRAKE HOSE

45472-HN1-000

Unavailable

3

ARM SUB-ASSY., R. FR. (LOWER)

51355-HN1-003

Unavailable

4

ARM SUB-ASSY., L. FR. (LOWER)

51365-HN1-003

Unavailable

5

ARM SUB-ASSY., R. FR. (UPPER)

51375-HN1-003

Unavailable

6

ARM SUB-ASSY., L. FR. (UPPER)

51385-HN1-003

Unavailable

7

RING, STOPPER

51393-HB9-670

$4.64

8

COLLAR, FR. ARM PIVOT

51394-HC0-000

$10.12

9

BOLT, FLANGE (10X62)

90183-HC0-770

$9.41

10

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.80

11

NUT, CASTLE (12MM)

90310-HB9-000

$5.63

12

BEARING, SPECIAL (10MM) (THOMPSON)

91077-HB9-672

$34.40

13

DUST SEAL, FR. ARM PIVOT (ARAI)

91265-HB9-671

Unavailable

14

PIN, SPLIT (3.0X18)

94201-30180

$0.94

15

WASHER, PLAIN (12MM)

94102-12000

$1.12
