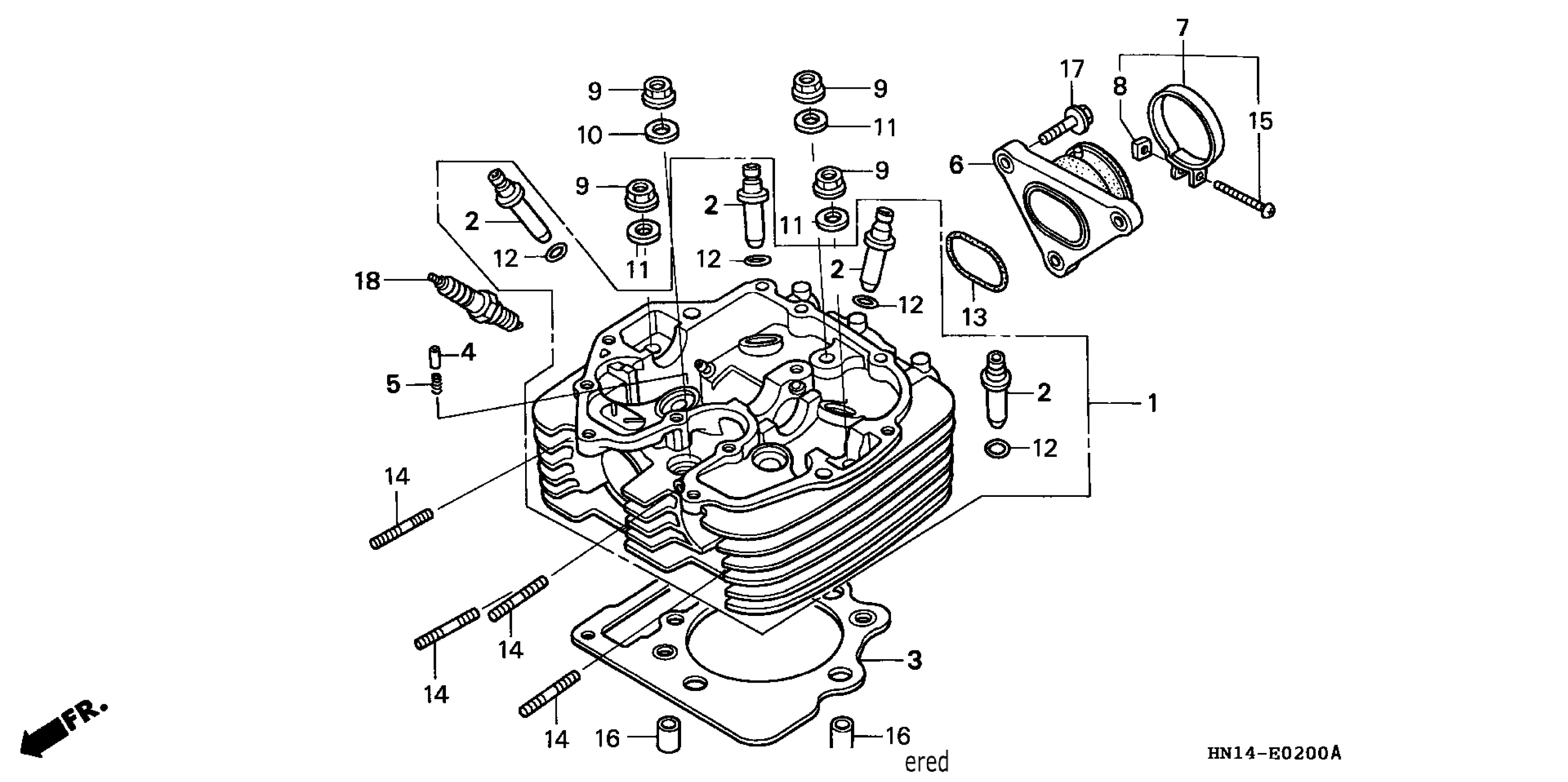

Honda TRX400EXA (04) SPORTRAX 400EX, USA, VIN# 478TE230-44400001 TO 478TE230-44499999 CYLINDER HEAD Diagram

CYLINDER HEAD

12200-KCY-670

Unavailable

GUIDE, VALVE

12231-KF0-305

$20.75

GUIDE, VALVE This part replaces 12231-KN5-305.

12231-KF0-305

$20.75

GASKET, CYLINDER HEAD

12251-HN1-003

$27.55

PLUNGER, CAM SETTING

14125-KV2-940

$15.85

SPRING, PLUNGER

14126-KV2-940

$3.62

INSULATOR, CARBURETOR

16211-HN1-010

Unavailable

BAND, INSULATOR

16217-HN1-000

$8.50

NUT, SQUARE WELDING (4MM)

94061-04001

$0.71

NUT, CAP (10MM)

90201-HA0-000

$5.99

NUT, CAP (10MM) This part replaces 90202-HA0-000.

90201-HA0-000

$5.99

WASHER (10X25X4)

90453-KAS-900

$5.42

WASHER, PLAIN (10MM)

90453-KCY-670

$3.86

O-RING (10X1.6)

91301-200-000

$2.80

O-RING (45X2.5)

91303-397-000

$4.66

BOLT, STUD (8X22)

92900-08022-0B

$1.94

SCREW, PAN (4X25)

93500-04025-0G

$0.59

PIN, DOWEL (12X20)

94301-12200

$2.25

BOLT, FLANGE (6X25) (NSHF)

90004-GHB-670

$2.77

SPARK PLUG (DPR8Z) (NGK)

98061-58616

$2.70

SPARK PLUG (X24GPR-U) (DENSO)

98061-58626

$3.06

SPARK PLUG (DPR9Z) (NGK) | (Optional).

98061-59616

$2.91

SPARK PLUG (X27GPR-U) (DENSO) | (Optional).

98061-59626

$3.06
