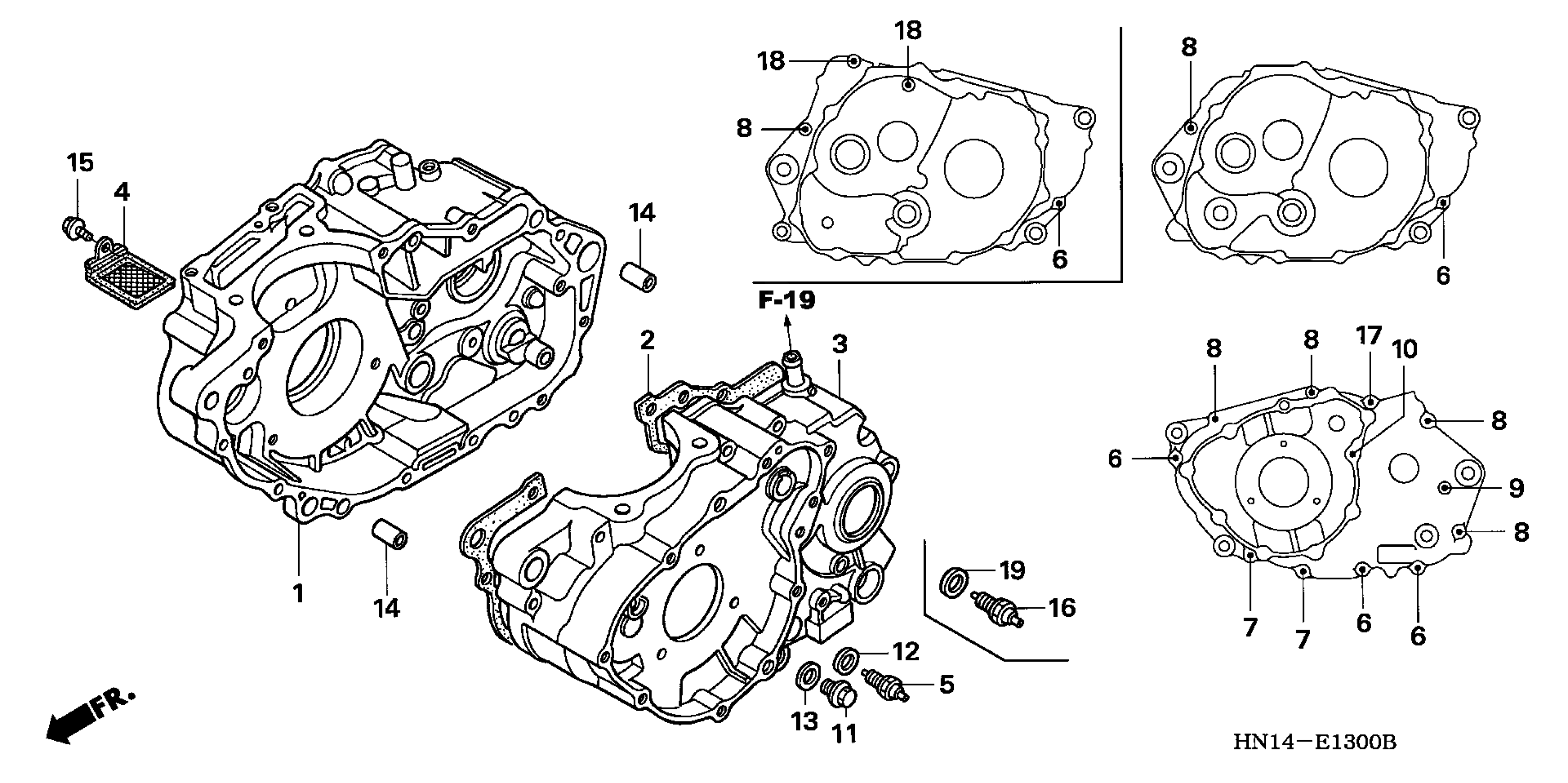

Honda TRX400EXA (04) SPORTRAX 400EX, USA, VIN# 478TE230-44400001 TO 478TE230-44499999 CRANKCASE Diagram

CRANKCASE, R.

11100-HN1-000

Unavailable

GASKET, CRANKCASE

11191-HN1-000

Unavailable

CRANKCASE, L.

11200-HN1-010

Unavailable

SCREEN, OIL FILTER (KOYO)

15421-MN1-671

$11.02

SWITCH ASSY., NEUTRAL (TOYO)

35600-HA0-003

$18.90

BOLT, FLANGE (6X35) (NSHF)

90004-GHB-700

$4.07

BOLT, FLANGE (6X50) (NSHF)

90004-GHB-730

$4.25

BOLT, FLANGE (6X65) (NSHF)

90004-GHB-760

$5.57

BOLT, FLANGE (6X80) (NSHF)

90004-GHB-790

$5.54

BOLT, SPECIAL STUD

90011-HN1-000

$7.16

BOLT, DRAIN PLUG (12X15) This part replaces 90131-883-000.

90131-896-650

$3.98

BOLT, DRAIN PLUG (12X15)

90131-896-650

$3.98

WASHER, OIL BOLT

90545-300-000

$3.99

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

PIN, DOWEL (10X16)

94301-10160

$2.28

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

BOLT, FLANGE (6X50) (NSHF)

90004-GHB-730

$4.25
