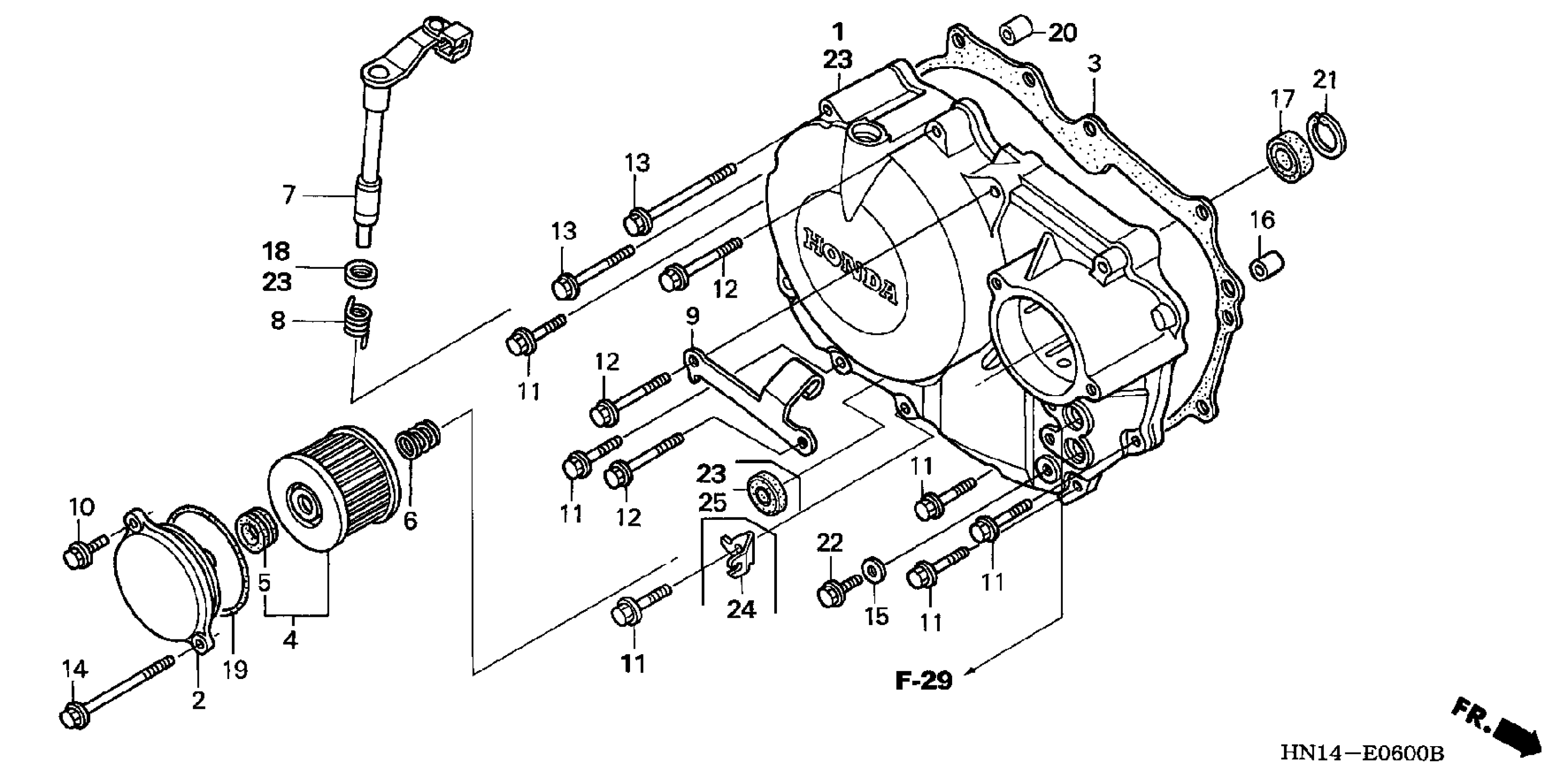

Honda TRX400EXA (01) SPORTRAX 400EX, USA, VIN# 478TE230-14100001 TO 478TE230-14199999 RIGHT CRANKCASE COVER Diagram

COVER, R. CRANKCASE

11330-HN1-000

Unavailable

COVER, OIL FILTER

11333-KCY-670

Unavailable

GASKET, R. COVER This part replaces 11394-KCY-671.

11394-KCY-673

$20.82

ELEMENT, OIL FILTER

15412-HM5-A10

$5.50

RUBBER, FILTER

15413-MC8-000

$3.35

SPRING, OIL FILTER ELEMENT SETTING

15414-KF0-000

$4.24

LEVER, CLUTCH This part replaces 22810-HN1-010.

22810-HN1-020

Unavailable

LEVER, CLUTCH

22810-HN1-020

Unavailable

SPRING, CLUTCH LEVER

22815-KM7-700

$4.17

RECEIVER, CLUTCH CABLE

22838-HN1-000

$9.41

BOLT, FLANGE (6X16) (NSHF)

90004-GHB-630

$3.51

BOLT, FLANGE (6X28) (NSHF)

90004-GHB-680

$3.33

BOLT, FLANGE (6X50) (NSHF)

90004-GHB-730

$4.25

BOLT, FLANGE (6X70) (NSHF)

90004-GHB-770

$5.44

BOLT, FLANGE (6X75) (NSHF)

90004-GHB-780

$3.12

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

PIN, DOWEL (6X19)

91101-KF0-000

$3.71

OIL SEAL (14X22X5) (ARAI)

91201-HM3-A61

$2.99

OIL SEAL (14X22X5) (ARAI) This part replaces 91201-KF0-003.

91201-HM3-A61

$2.99

OIL SEAL (12X18X5) (ARAI)

91204-KK0-003

$5.05

O-RING (54X2.4) (ARAI)

91302-KF0-003

$3.47

PIN, DOWEL (8X14)

90704-KL4-000

Unavailable

CIRCLIP (INNER) (24MM)

94520-24000

$1.49

BOLT, FLANGE (6X12)

95701-06012-00

$1.62
