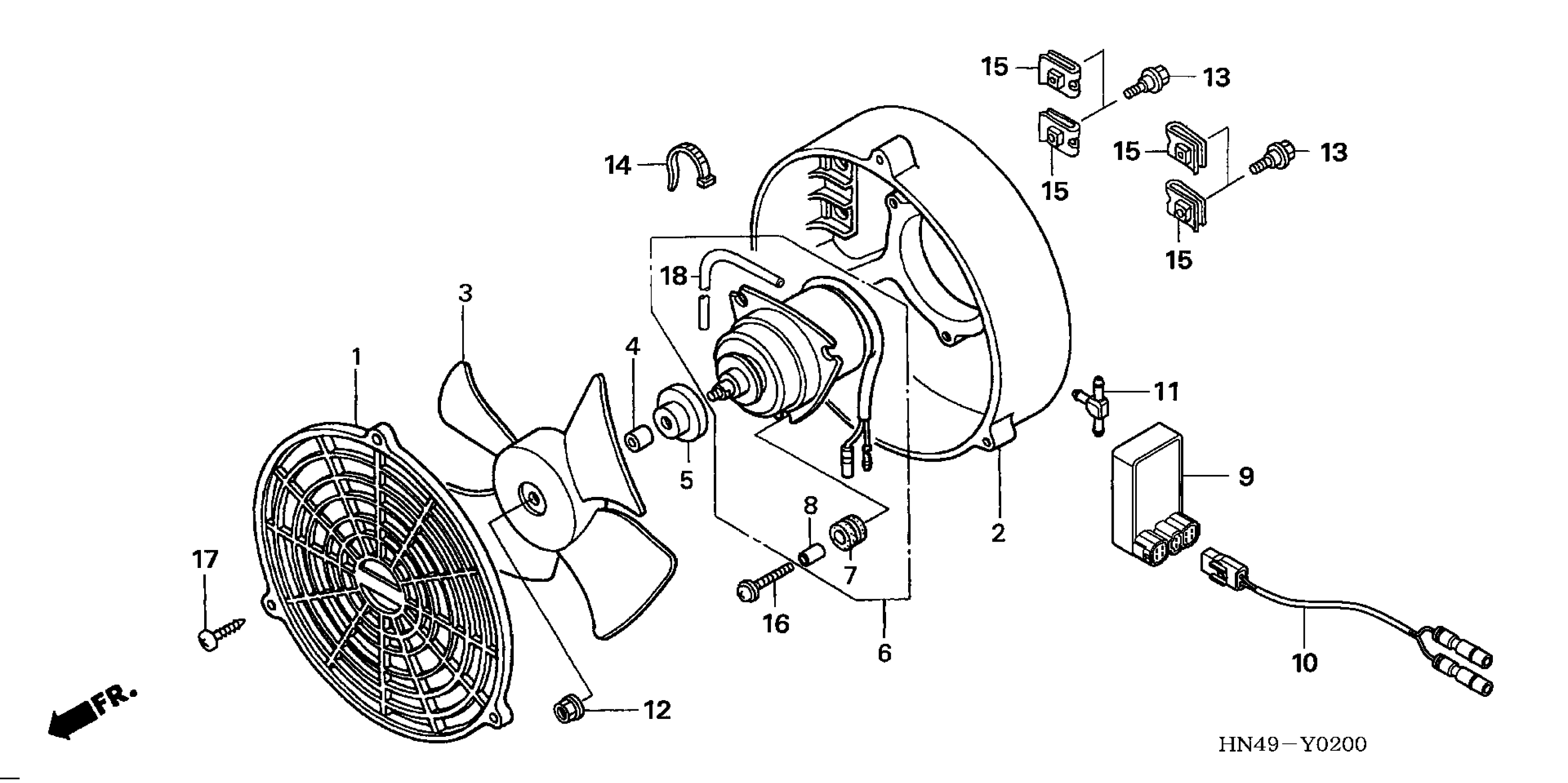

Honda TRX350TMA (06) FOURTRAX RANCHER, USA, VIN# 1HFTE240-64500001 COOLING FAN KIT (TRX350TM) (OPTIONAL) Diagram

COVER, SHROUD

19014-HM7-000

$15.60

SHROUD, COOLING FAN

19015-HM7-000

$28.69

FAN, COOLING

19020-HM7-000

$45.62

SPACER, FAN

19021-HC4-000

$4.88

CUP, WASHER

19021-VM5-305

$18.75

MOTOR, COOLING FAN

19030-HM7-003

$337.36

GROMMET

19031-HA7-671

$4.10

COLLAR

19032-HA7-671

$3.01

MODULE, IGNITION CONTROL (CDI)(DC)

30410-HN5-N01

$102.39

SUB-WIRE (C.D.I.)

30450-HN4-M60

$12.53

JOINT, TUBE This part replaces 38581-671-003.

38581-679-003

Unavailable

JOINT, TUBE

38581-679-003

Unavailable

NUT, HEX. (5MM) (MITSUBA)

90041-PG6-004

$5.15

BOLT, FLANGE (6MM)

90111-197-890

$3.40

BAND, WIRE HARNESS

90650-MA6-720

$5.40

NUT, CLIP (6MM)

90673-SB2-000

$7.01

SCREW-WASHER (4X20)

93894-04020-00

$0.81

SCREW, TAPPING (4X16) (PO)

93913-24480

$0.90

BULK HOSE, VINYL (4X7X8000) (4X7X540)

95003-07008-60M

$30.47
