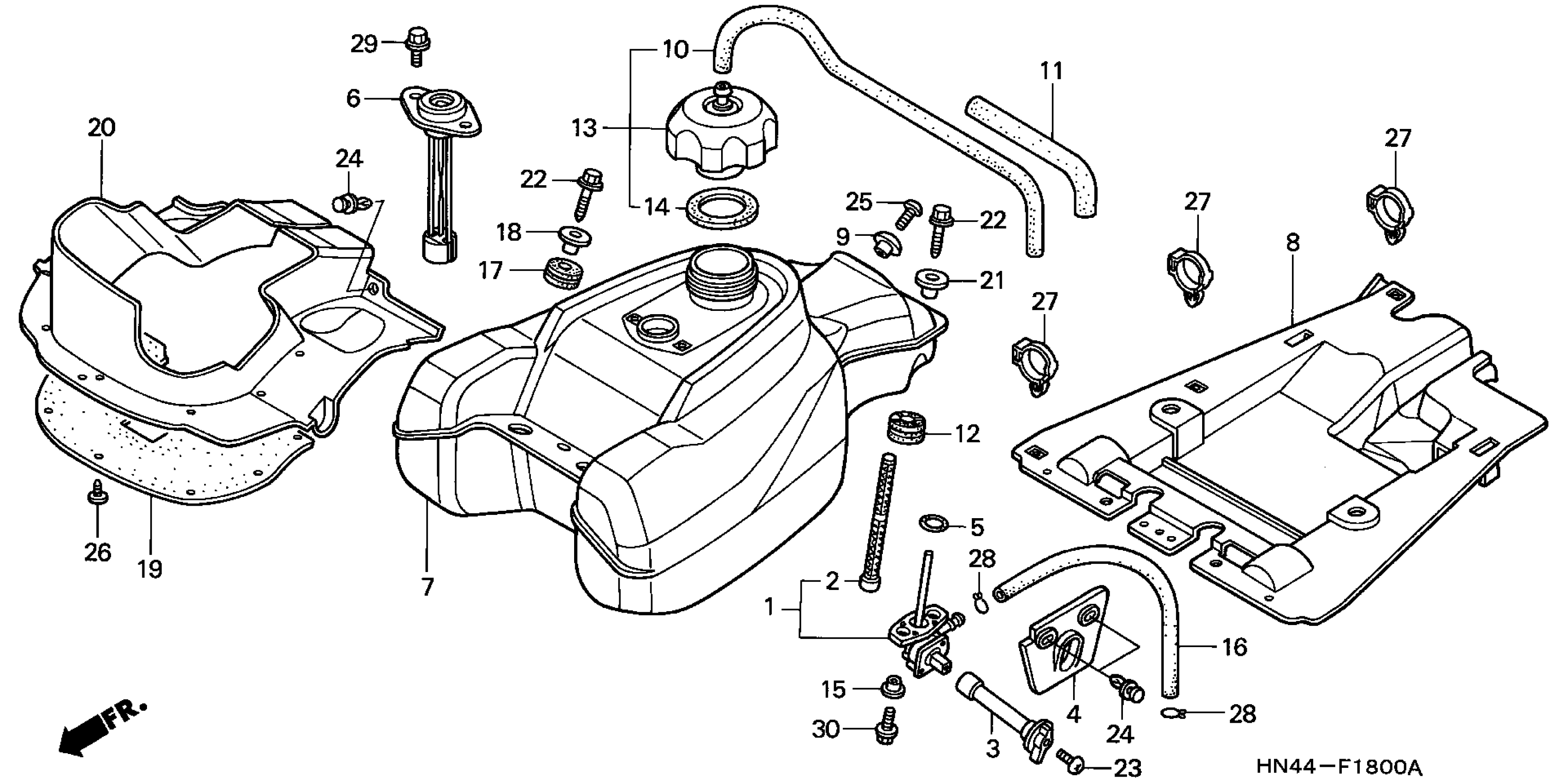

Honda TRX350TMA (01) FOURTRAX RANCHER, USA, VIN# 478TE240-1A100001 FUEL TANK Diagram

PETCOCK ASSY.

16950-HM8-003

$97.35

SCREEN SET, FUEL STRAINER

16952-HM8-003

$23.67

LEVER, PETCOCK

16963-HN5-670

$23.01

PLATE, FUEL MARK

16965-HN5-670

Unavailable

O-RING (11.8X3.55)

16997-467-000

$2.11

METER ASSY., FUEL

17504-HN5-671

Unavailable

TANK, FUEL

17510-HN5-670

$1,292.84

HEAT PROTECTOR, TANK (LOWER)

17515-HN5-670

Unavailable

COLLAR, FR. SEAT

17518-KZ4-710

$5.80

TUBE, FUEL CAP BREATHER

17521-HA2-670

$6.99

CUSHION, RR. FUEL TANK

17613-176-000

$7.64

CAP ASSY., FUEL TANK

17620-HF7-000

$55.16

GASKET, FUEL CAP

17624-HF7-000

$7.81

COLLAR, FUEL TANK SETTING

17626-467-000

$4.76

TUBE, FUEL

17681-HN5-670

$3.50

RUBBER, MUFFLER

18334-KA3-830

$3.89

COLLAR, RADIATOR MOUNTING This part replaces 19052-MN8-000.

19052-MGH-640

$2.48

RUBBER, SNORKEL AIR GUIDE

61720-HN5-670

$4.77

PLATE, SNORKEL AIR GUIDE

61725-HN5-670

$23.20

COLLAR, SEAT MOUNTING

77207-464-000

$7.63

BOLT, SPECIAL (6X32)

90101-HM8-000

$4.39

SCREW, L. HANDLEBAR LEVER PIVOT

90116-GF8-000

$3.58

CLIP, SPLASH GUARD

90653-HC4-900

$1.49

SCREW, SPECIAL (5MM)

91422-MT8-770

$2.90

CLIP, WASHER MOUTH

91504-SD5-901

$4.39

CLIP, WIRE HARNESS (BLACK)

91556-SK7-003

$5.44

CLIP, TUBE (B12)

95002-02120

$2.00

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X16)

96001-06016-00

$1.49
