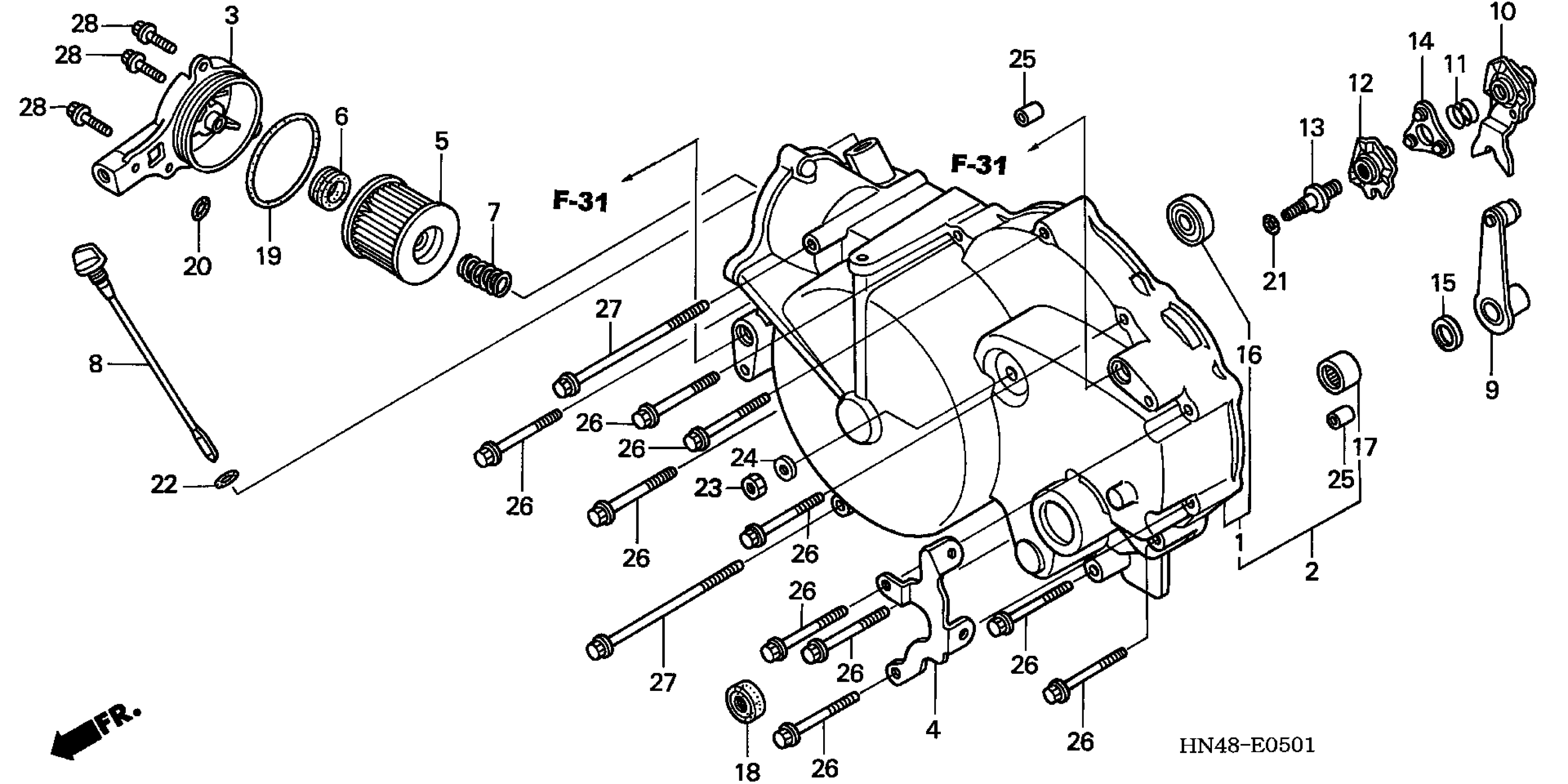

Honda TRX350TM2A (04) FOURTRAX RANCHER, USA, VIN# 478TE240-44300001 FRONT CRANKCASE COVER (TM/FM) Diagram

COVER, FR. CRANKCASE

11330-HN4-A60

Unavailable

COVER, OIL FILTER

11333-HN5-670

$48.70

STAY, L. FR. ENGINE COVER

11380-HN5-670

Unavailable

ELEMENT, OIL FILTER

15412-HM5-A10

$5.50

RUBBER, FILTER

15413-MC8-000

$3.35

SPRING, OIL FILTER ELEMENT SETTING

15414-KF0-000

$4.24

DIPSTICK, OIL

15650-HN5-670

Unavailable

LEVER, CLUTCH

22810-HM7-700

$87.24

PLATE, CLUTCH CAM

22820-HN5-670

Unavailable

SPRING, CAM PLATE SIDE

22825-HN0-671

$3.73

PLATE, CLUTCH LIFTER

22830-HN5-670

Unavailable

BOLT, CLUTCH ADJUSTING

22841-HC4-000

$7.95

RETAINER, BALL

22860-HB3-000

$7.81

WASHER (10X21.5)

90413-GE0-000

$3.90

BEARING, RADIAL BALL (15X32X9)

91009-HF1-671

$22.40

O-RING (54X2.4) (ARAI)

91302-KF0-003

$3.47

O-RING (12.7X1.9)

91304-HN5-670

$2.20

O-RING (8.2X1.5)

91308-MC7-000

$2.31

O-RING (8.4X2.4)

91316-MJ8-003

$2.61

NUT, HEX. (8MM)

94030-08000

$1.49

WASHER, PLAIN (8MM)

94102-08800

$1.49

PIN, DOWEL (8X14)

94301-08140

$2.25

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.06

BOLT, FLANGE (6X45)

95701-06045-07

$2.06

BOLT, FLANGE (6X105)

95701-06105-00

$3.09

BOLT, FLANGE (6X18)

96001-06018-00

$1.80
