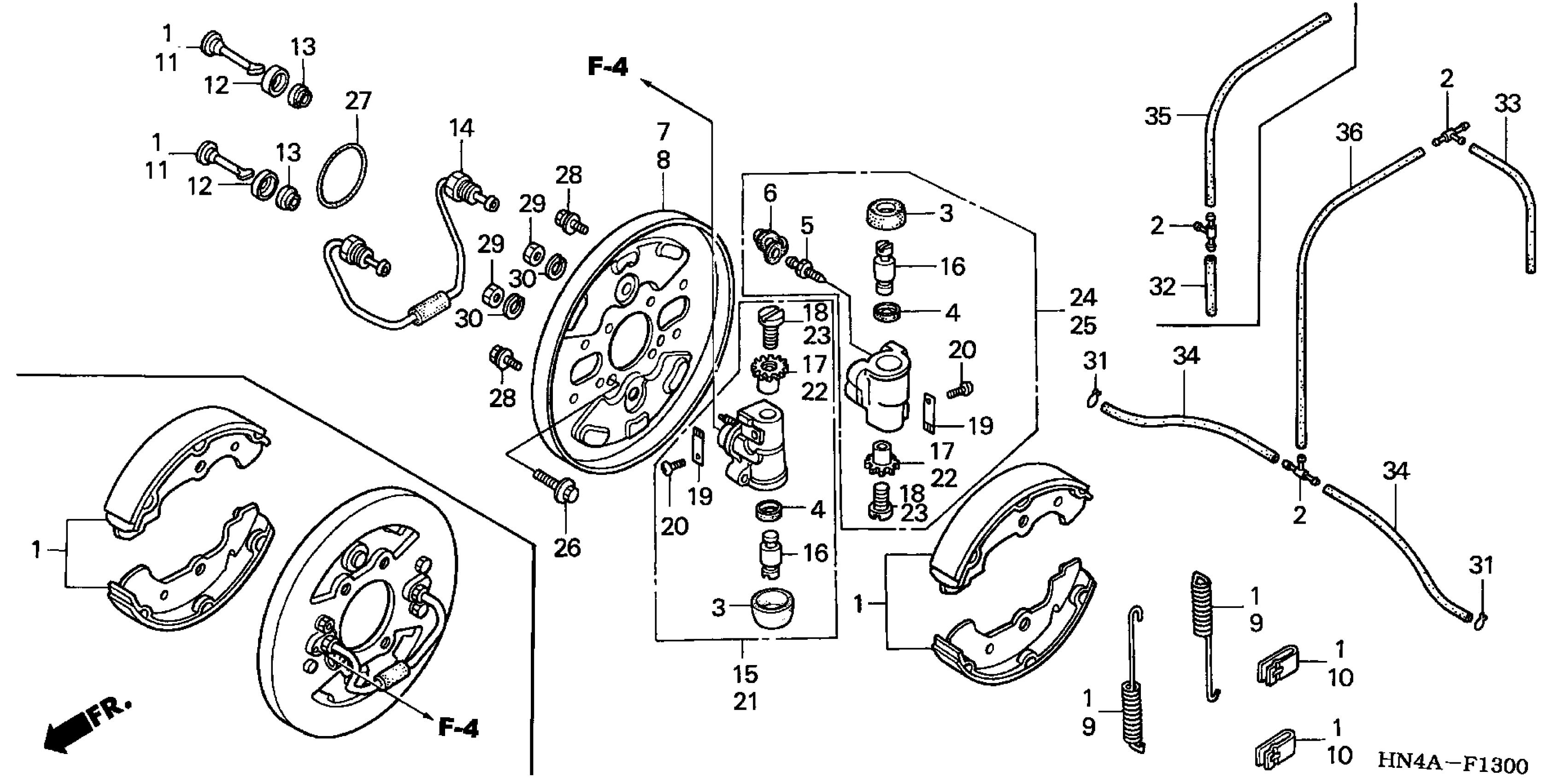

Honda TRX350TM2A (03) FOURTRAX RANCHER, USA, VIN# 478TE240-34200001 FRONT BRAKE PANEL Diagram

SHOE SET, BRAKE

06450-HN5-671

$45.27

JOINT, TUBE This part replaces 38581-671-003.

38581-679-003

$13.22

JOINT, TUBE

38581-679-003

$13.22

COVER, DUST

43315-SN4-003

$4.95

COVER, DUST This part replaces 43315-671-631.

43315-SN4-003

$4.95

CUP, PISTON

43341-602-003

$4.91

SCREW, BLEEDER (NISSIN)

43352-HC5-971

$3.93

CAP, BLEEDER

43353-461-771

$4.70

PLATE, R. BACK

45110-HN5-671

$143.62

PLATE, L. BACK

45120-HN5-671

$143.62

SPRING, BRAKE

45171-HN5-671

$3.30

SPRING, SHOE CLAMP

45172-S04-003

$1.59

PIN, TENSION

45175-HC4-006

$3.71

CAP, PIN (NISSIN)

45176-HM5-A81

$6.70

SEAL, PIN (NISSIN)

45177-HA7-651

$6.41

PIPE, FR. WHEEL CYLINDER

45181-HC5-006

$17.77

CYLINDER ASSY. A, R. FR. WHEEL

45310-HC5-006

$29.57

PISTON

45314-HC5-006

$16.54

NUT, R. ADJUSTER

45316-VM0-003

$7.90

SCREW, R. ADJUSTING

45317-634-013

$5.16

LOCK, SPRING

45318-HA7-671

$5.47

SCREW-WASHER (4X6)

45319-634-003

$2.26

CYLINDER ASSY. A, L. FR. WHEEL

45330-HC5-006

$27.41

NUT, L. ADJUSTER

45336-VM0-003

$8.25

SCREW, L. ADJUSTING

45337-634-013

$5.39

CYLINDER ASSY. B, R. FR. WHEEL (NISSIN)

45350-HC5-971

$32.34

CYLINDER ASSY. B, L. FR. WHEEL (NISSIN)

45370-HC5-971

$31.07

BOLT, FLANGE (8X20)

90115-HA7-651

$4.35

O-RING (64.6X1.7)

91357-HM7-003

Unavailable

BOLT-WASHER (6X12)

93402-06012-08

$1.48

NUT, HEX. (8MM)

94001-08000-0S

$1.19

NUT, HEX. (8MM) This part replaces 94001-08080-0S.

94001-08000-0S

$1.19

NUT, HEX. (8MM) This part replaces 94001-08080-05.

94001-08000-0S

$1.19

NUT, HEX. (8MM) This part replaces 94001-08200-0S.

94001-08000-0S

$1.19

WASHER, SPRING (8MM)

94111-08800

$0.90

CLIP, TUBE (C6.5)

95002-35000

$0.68

BULK HOSE, VACUUM (3.5X1000) (3.5X250)

95005-35001-30M

$7.74

BULK HOSE, VACUUM (3.5X1000) (3.5X590)

95005-35001-30M

$7.74

BULK HOSE, VACUUM (3.5X1000) (3.5X900)

95005-35001-30M

$7.74
