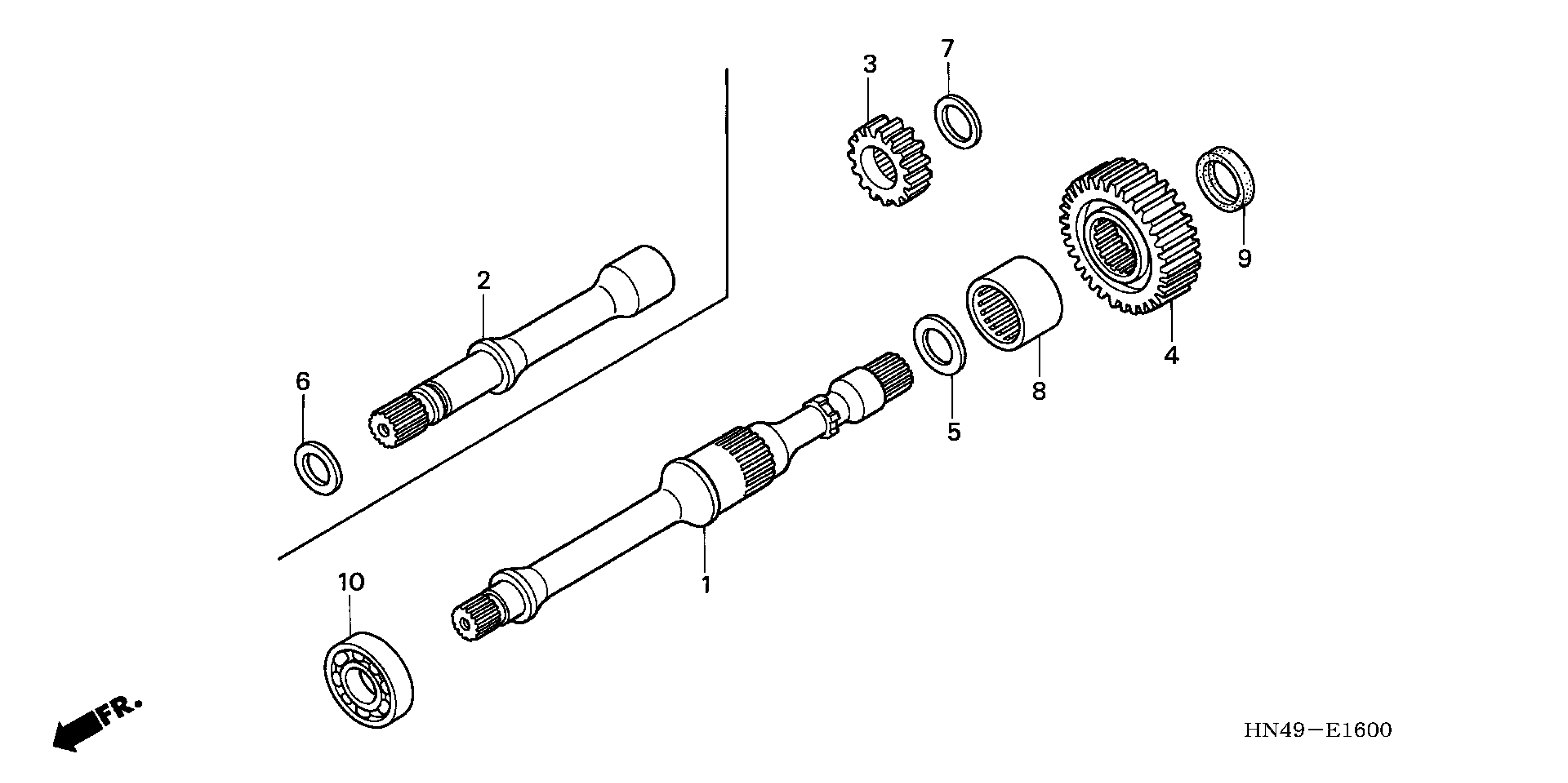

Honda TRX350TEA (06) FOURTRAX RANCHER ES, USA, VIN# 1HFTE244-64500001 FINAL SHAFT Diagram

SHAFT A, FINAL

23611-HN5-670

$64.77

GEAR, FINAL DRIVE (15T)

23621-HN5-670

$31.00

GEAR, FINAL DRIVE (29T)

23631-HN5-670

$50.18

WASHER, THRUST (28X44X1.5)

90403-KN7-670

$9.56

WASHER A, THRUST (20MM)

90453-107-000

$2.25

BEARING, NEEDLE (28X37X20)

91012-HN5-671

Unavailable

OIL SEAL (24X34X5.5) This part replaces 91203-HN5-671.

91203-HN7-003

$5.30

OIL SEAL (24X34X5.5)

91203-HN7-003

$5.30

BEARING, RADIAL BALL (6004)

96100-60040-00

$15.58
