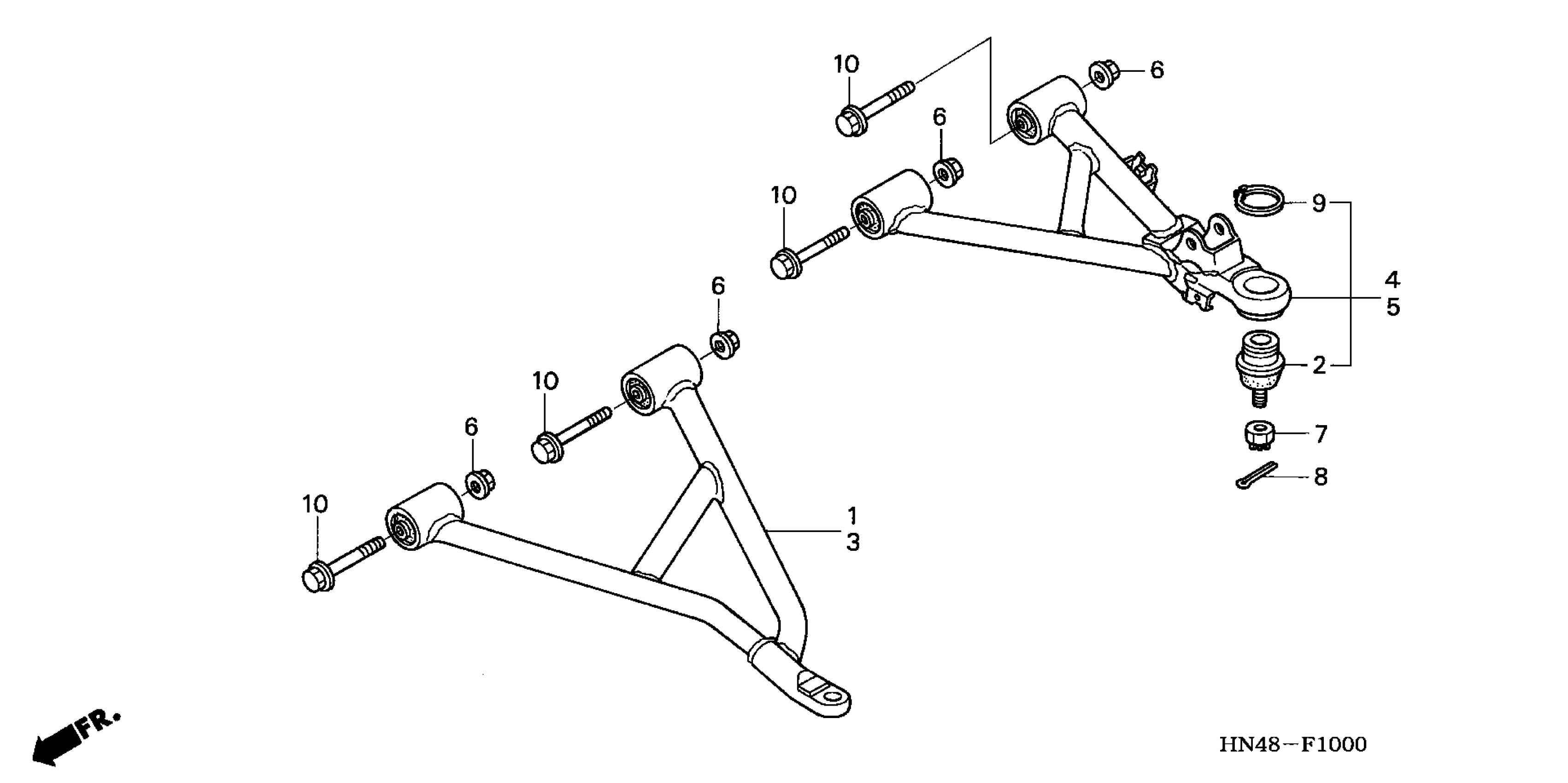

Honda TRX350TEA (05) FOURTRAX RANCHER ES, USA, VIN# 1HFTE244-54400001 FRONT ARM (2WD) Diagram

#

Description

Price

1

ARM ASSY., R. (LOWER)

51350-HN4-670

$84.95

2

JOINT A, ARM BALL This part replaces 51355-HN0-A01.

51375-HP5-601

$20.53

2

JOINT A, ARM BALL

51375-HP5-601

$20.53

3

ARM ASSY., L. (LOWER)

51360-HN4-670

$87.08

4

ARM ASSY., R. (UPPER)

51370-HN4-670

Unavailable

5

ARM ASSY., L. (UPPER)

51380-HN4-670

Unavailable

6

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.99

7

NUT, CASTLE (12MM)

90310-HB9-000

$6.05

8

PIN, SPLIT (3.0X18)

94201-30180

$1.49

9

CIRCLIP (OUTER) (34MM)

94514-34000

$1.85

10

BOLT, FLANGE (10X62)

90151-HC5-000

$7.99

10

BOLT, FLANGE (10X62) This part replaces 95801-10065-00.

90151-HC5-000

$7.99
