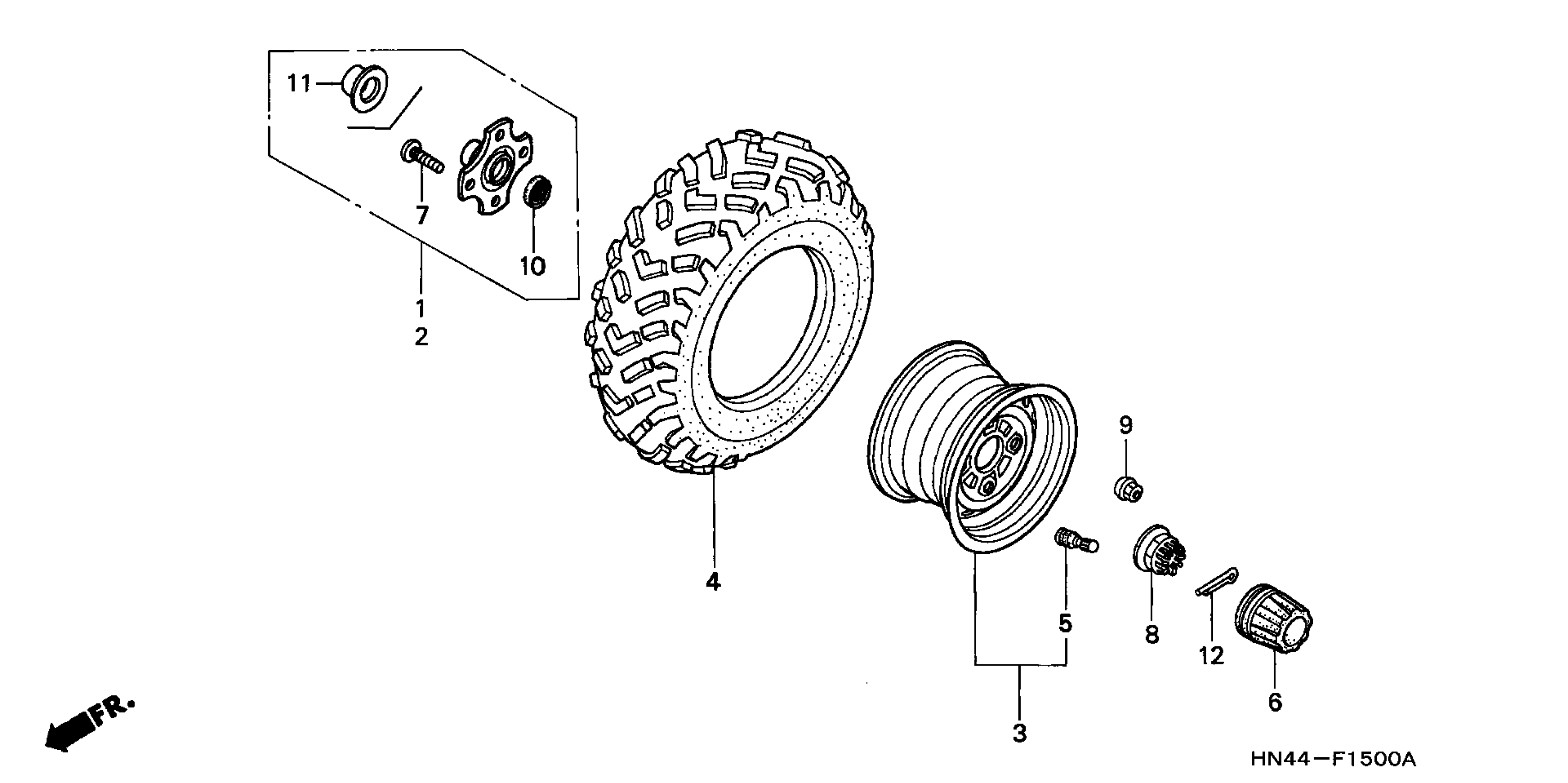

Honda TRX350TEA (01) FOURTRAX RANCHER ES, USA, VIN# 478TE244-1A100001 REAR WHEEL Diagram

#

Description

Price

1

HUB, R. RR. This part replaces 42610-HM7-610.

42610-HN0-670

$120.20

1

HUB, R. RR.

42610-HN0-670

$120.20

2

HUB, L. RR. This part replaces 42620-HM7-610.

42620-HN0-670

Unavailable

2

HUB, L. RR.

42620-HN0-670

Unavailable

3

WHEEL SUB-ASSY., RR.

42650-HN4-670

Unavailable

4

TIRE, RR. (25X11-10) (CST) (MUST BUY 2 TO REPLACE REAR TI RES AS A SET. PIB# MPB 13897)

42711-HN4-007

$120.23

5

VALVE, RIM (TR412)

42753-HF1-670

$4.85

6

CAP, WHEEL CENTER

44732-HC4-000

$20.95

7

BOLT, WHEEL (10X32)

90103-HN0-A60

$5.44

8

NUT, AXLE (20MM)

90304-HM7-A10

$10.51

9

NUT, WHEEL

90314-HM5-A10

$3.06

10

DUST SEAL (21.4X28.2X5) (ARAI)

91255-HM7-003

$7.10

11

RING, SIDE SEAL

91265-HA8-003

$24.87

12

PIN, SPLIT (4.0X40)

94201-40400

$0.61
