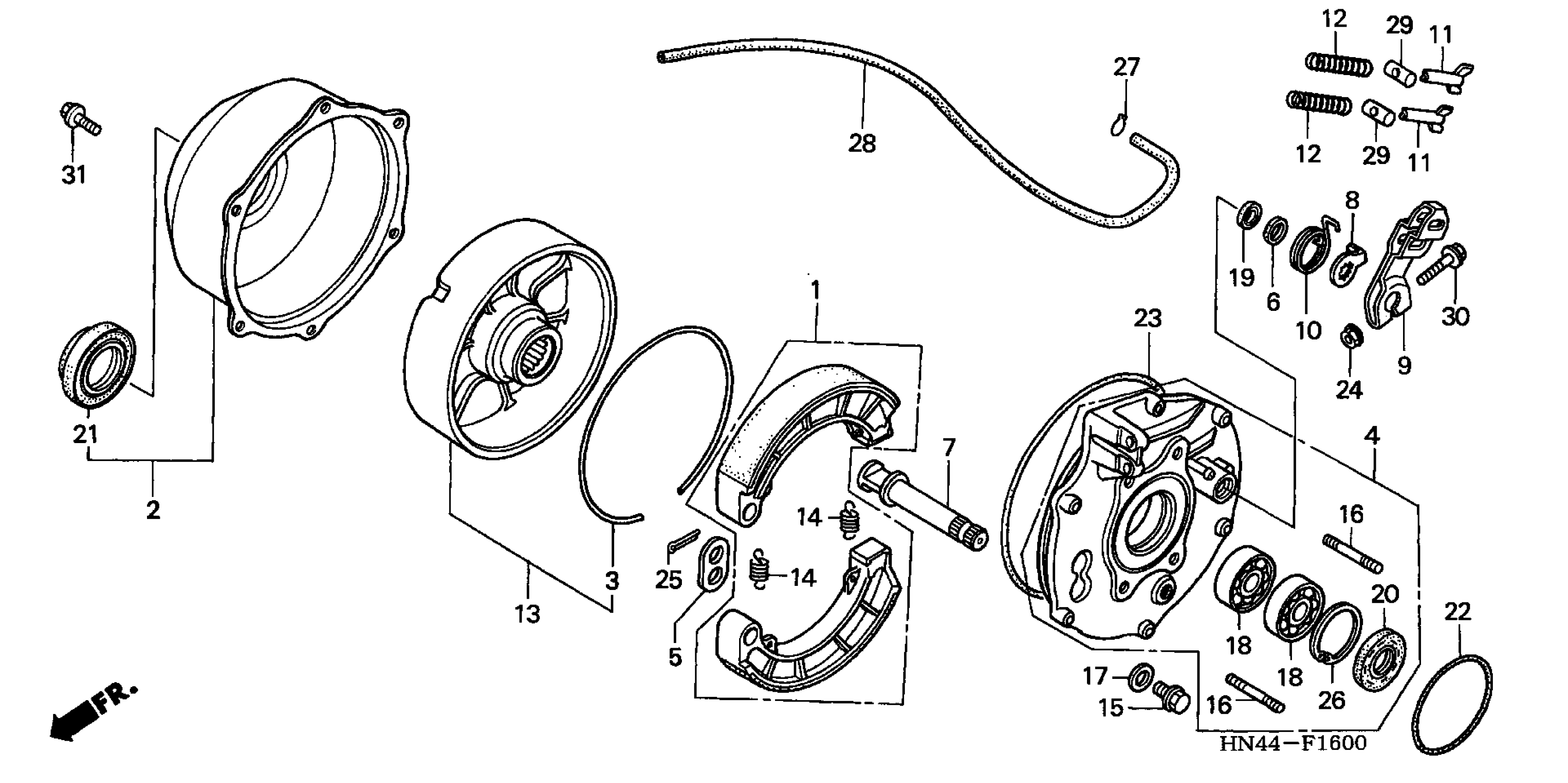

Honda TRX350TEA (01) FOURTRAX RANCHER ES, USA, VIN# 478TE244-1A100001 REAR BRAKE PANEL Diagram

#

Description
Price

1

SHOE SET, BRAKE (ASK)

06430-HN0-A20

$42.16

1

SHOE SET, BRAKE (JB)

06430-HN0-A30

$53.36

2

COVER ASSY., DRUM

40520-HM7-610

Unavailable

3

RING, DAMPER

42624-HC4-000

$24.06

4

PANEL SET, RR. BRAKE

43010-HN5-670

$278.62

5

WASHER, ANCHOR PIN

43102-319-000

$5.91

6

DUST SEAL, BRAKE CAM

43134-300-000

$2.03

7

CAM, RR. BRAKE

43141-HN5-670

$31.32

8

INDICATOR, BRAKE

43145-HA7-670

$5.39

9

ARM, RR. BRAKE

43410-HN5-670

$21.20

10

SPRING, RR. BRAKE ARM

43415-HM7-000

$6.86

11

NUT, BRAKE ADJUSTING

43459-HM5-A10

$8.75

12

SPRING, RR. BRAKE ROD (NA USE ALT:95014-73100)

43467-HA0-000

Unavailable

13

DRUM ASSY., RR. BRAKE

43620-HN0-A00

$272.37

14

SPRING, FR. BRAKE SHOE

45133-329-000

$2.66

15

BOLT, SEALING (8MM)

90109-371-000

$2.50

16

BOLT, STUD (10X25)

90151-HA7-670

$5.95

17

GASKET (8MM)

90471-580-000

$2.80

18

BEARING, RADIAL BALL (28X58X16)

91057-HA0-681

Unavailable

18

BEARING, RADIAL BALL (28X58X16) This part replaces 91057-HA8-004.

91057-HA0-681

Unavailable

19

DUST SEAL (17X23X3) (NOK)

91206-968-003

$3.52

20

OIL SEAL (34X58X6) (ARAI)

91252-HM7-003

$13.62

21

DUST SEAL (41X76X19) (ARAI)

91253-HM7-003

$16.47

22

O-RING (75X3.2) (NOK)

91320-HM7-702

$2.74

23

O-RING (181X3.1) (ARAI)

91355-HC4-003

$14.67

24

NUT, FLANGE (8MM)

94050-08000

$0.87

25

PIN, SPLIT (2.5X30) This part replaces 94201-25200.

94201-25300

$0.96

25

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$0.96

25

PIN, SPLIT (2.5X30)

94201-25300

$0.96

26

CIRCLIP (INNER) (58MM)

94520-58000

$3.71

27

CLIP, TUBE (C6.5)

95002-35000

$0.69

28

BULK HOSE, VACUUM (3.5X1000) (3.5X880)

95005-35001-30M

$10.08

29

JOINT B, BRAKE ARM

95015-32001

$0.87

30

BOLT, FLANGE (8X45)

95701-08045-00

$1.35

31

BOLT, FLANGE (6X16)

96001-06016-07

$0.97
