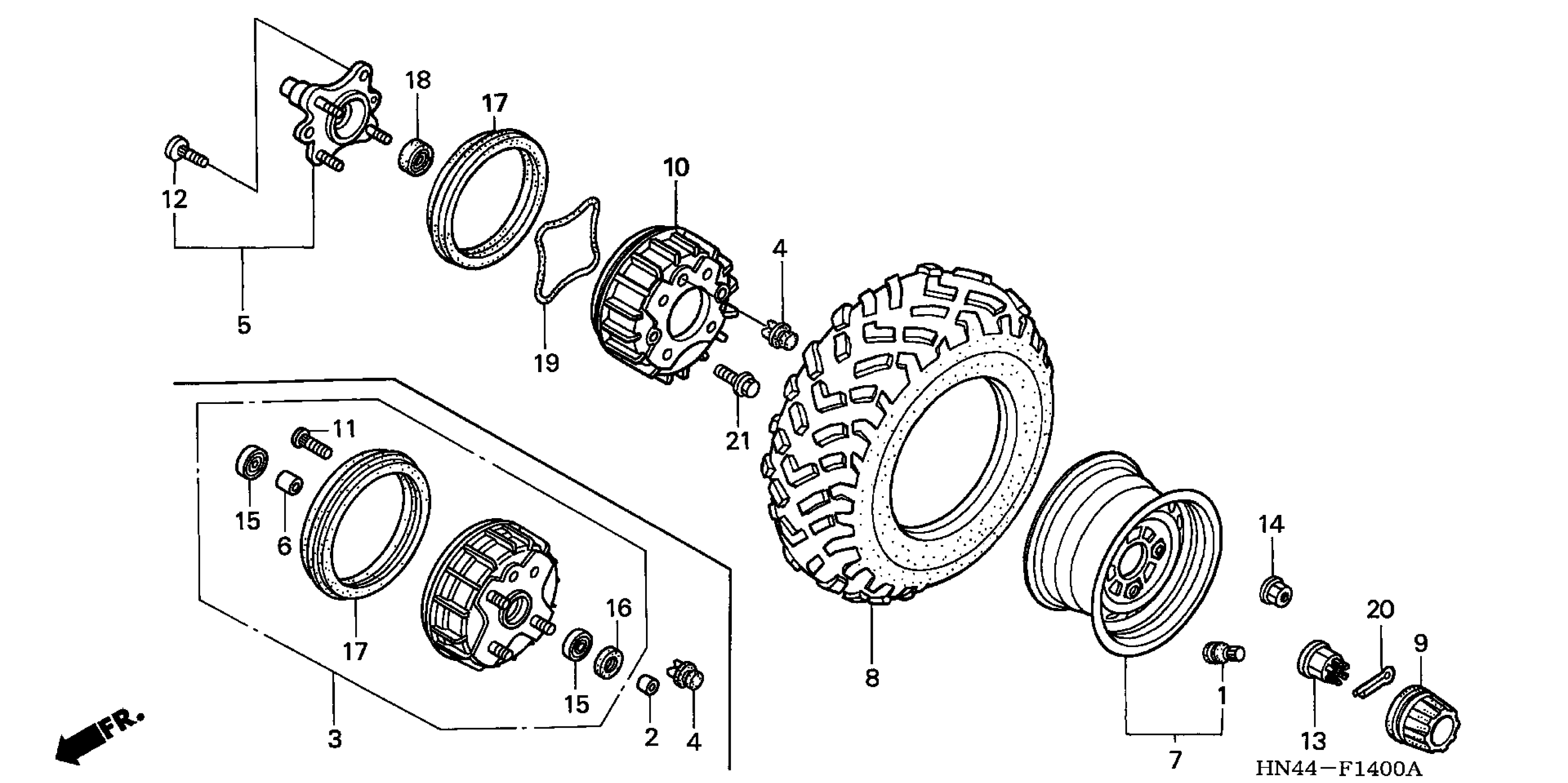

Honda TRX350TEA (01) FOURTRAX RANCHER ES, USA, VIN# 478TE244-1A100001 FRONT WHEEL Diagram

VALVE, RIM (TR412)

42753-HF1-670

$5.37

COLLAR, FR. WHEEL

44312-HC4-840

$2.92

HUB ASSY., FR. WHEEL MSDS

44600-HN4-670

$622.64

PLUG, ADJUSTING HOLE

44602-HM5-A10

$4.10

COLLAR, FR. DISTANCE

44620-HN4-670

$12.17

WHEEL SUB-ASSY., FR.

44650-HN4-670

$63.44

TIRE (24X8-12) (MAXXIS) This part replaces 44711-HP5-601.

44711-HR3-WH1

$89.12

CAP, WHEEL CENTER

44732-HC4-000

$24.03

BOLT, WHEEL (10X33)

90103-HA0-300

$7.88

NUT, CASTLE (18MM)

90304-HM5-A80

$7.30

NUT, WHEEL

90314-HM5-A10

$3.39

BEARING, RADIAL BALL (6004)

91053-HC4-000

$19.94

BEARING, RADIAL BALL (6004) This part replaces 91053-HC4-003.

91053-HC4-000

$19.94

DUST SEAL (28X42X8) (NOK)

91257-MAY-003

$9.16

DUST SEAL, FR. BRAKE

91261-HN5-671

$38.76

PIN, SPLIT (4.0X30)

94201-40300

$1.49
