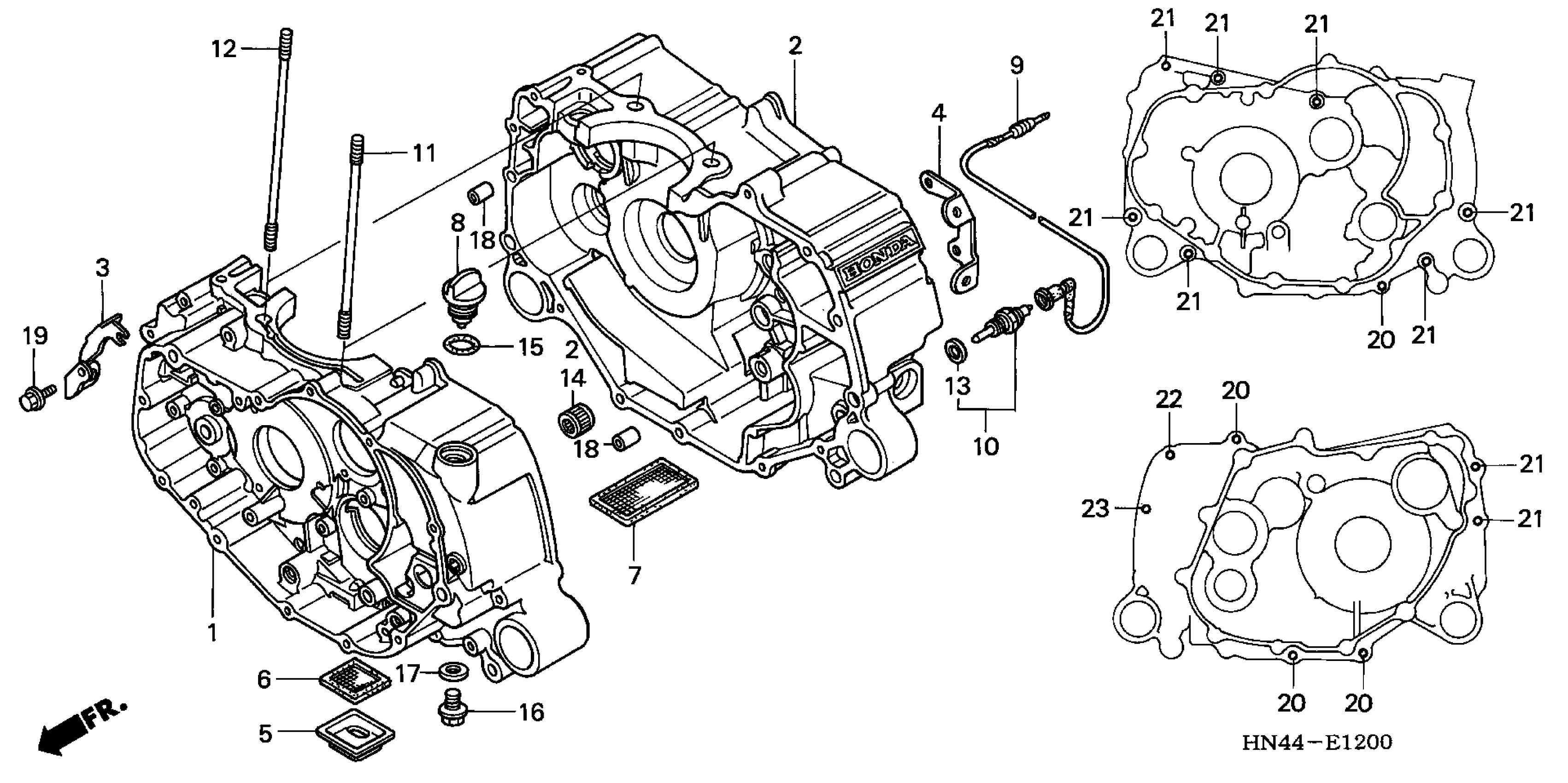

Honda TRX350TEA (01) FOURTRAX RANCHER ES, USA, VIN# 478TE244-1A100001 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE, FR.

11100-HN5-670

$566.25

2

CRANKCASE, RR.

11200-HN5-M00

Unavailable

2

CRANKCASE, RR. This part replaces 11200-HN5-671.

11200-HN5-M00

Unavailable

3

STAY, R. FR. ENGINE COVER

11360-HN5-670

Unavailable

4

STAY, L. RR. ENGINE COVER

11390-HN5-670

Unavailable

5

STRAINER, OIL

15153-HN5-670

$5.98

6

SCREEN, OIL FILTER This part replaces 15421-HC4-005.

15421-HR3-A40

$11.99

7

SCREEN, OIL FILTER

15421-HN5-671

Unavailable

8

CAP, OIL FILLER

15655-HN5-670

$9.85

9

SUB-WIRE, THERMO SENSOR

32850-HN5-670

$17.55

10

SENSOR ASSY., THERMOSTAT OIL (TOYO)

37750-HC4-751

$62.59

11

BOLT, STUD (10X166)

90031-HC0-000

$11.54

12

BOLT, STUD (10X206)

90031-HM7-000

Unavailable

13

WASHER, SEALING

90401-HA8-000

$3.81

13

WASHER, SEALING This part replaces 90401-HC4-750.

90401-HA8-000

$3.81

15

O-RING (18X3) (ARAI)

91307-KF0-003

$2.92

16

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

17

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

18

PIN, DOWEL (8X14)

94301-08140

$2.25

19

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

20

BOLT, FLANGE (6X40)

95701-06040-00

$1.80

21

BOLT, FLANGE (6X75)

95701-06075-00

$2.30

22

BOLT, FLANGE (6X105)

95701-06105-00

$3.09

23

BOLT, FLANGE (6X115)

95701-06115-00

$3.09
