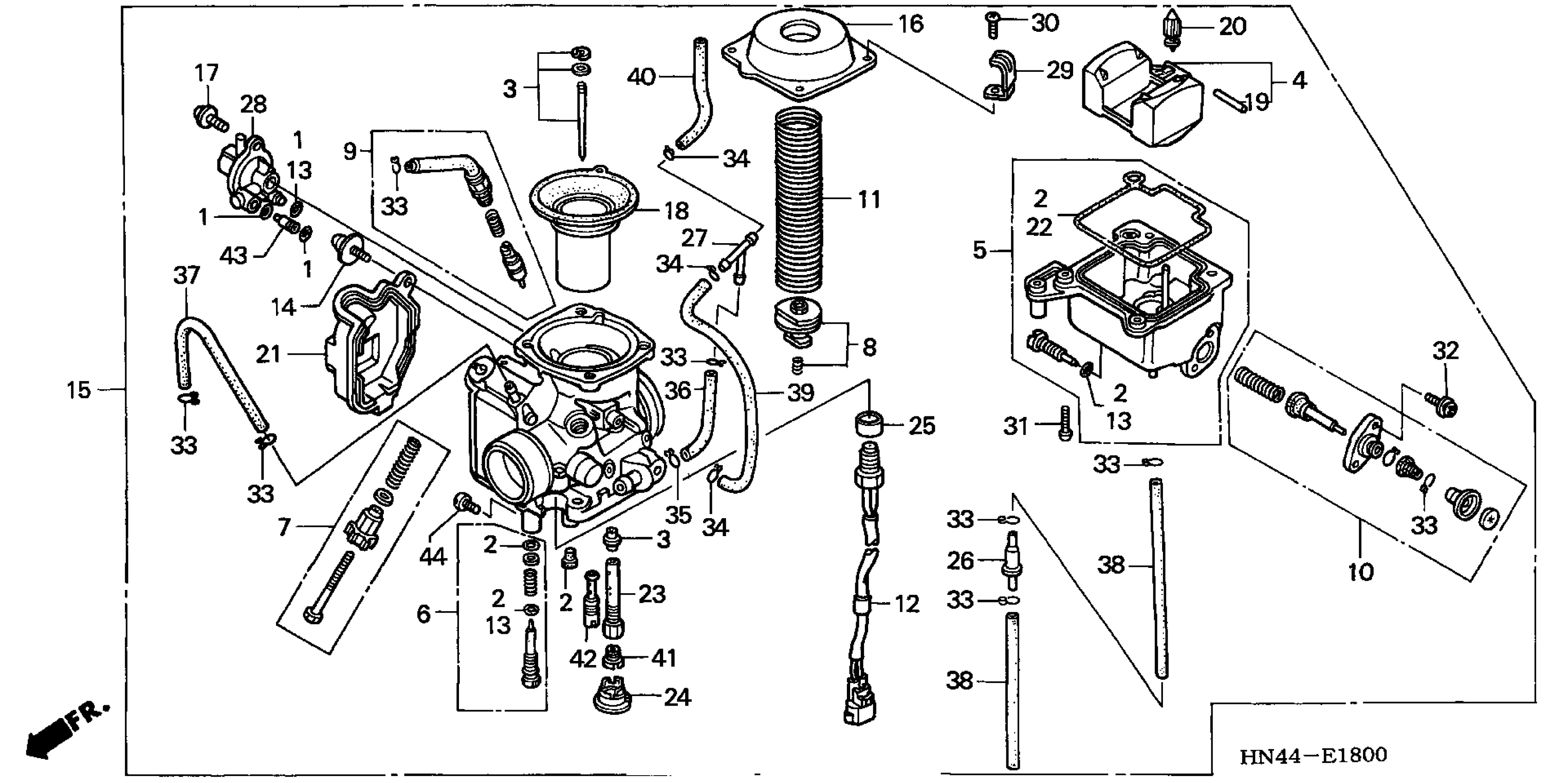

Honda TRX350TEA (01) FOURTRAX RANCHER ES, USA, VIN# 478TE244-1A100001 CARBURETOR Diagram

#

Description
Price

1

GASKET SET C This part replaces 16010-HM7-670.

16041-MZ5-600

$18.02

2

GASKET SET

16010-HM7-700

$24.92

3

NEEDLE SET, JET

16012-HN5-671

Unavailable

4

FLOAT SET

16013-HN5-671

$43.09

5

CHAMBER SET, FLOAT

16015-HM7-700

Unavailable

6

SCREW SET

16016-HM3-L00

Unavailable

7

SCREW SET

16028-HM5-730

$17.08

8

PLATE SET, VALVE

16037-HM5-L00

$19.00

9

VALVE SET, STARTER

16046-HM5-730

$67.50

10

PUMP SET This part replaces 16048-HM7-700.

16048-HN7-003

$87.67

11

SPRING, COMPRESSION COIL

16050-HM5-L00

$11.90

12

HEATER ASSY. This part replaces 16070-HN5-671.

16070-HN5-672

$61.73

12

HEATER ASSY.

16070-HN5-672

$61.73

13

O-RING (1.3X4.3)

16075-GHB-640

$2.92

14

SCREW-WASHER

16080-HC0-003

$4.15

15

CARBURETOR ASSY. (VE94A C) This part replaces 16100-HN5-672.

16100-HN5-673

$371.85

15

CARBURETOR ASSY. (VE94A C)

16100-HN5-673

$371.85

16

TOP

16107-KM3-702

Unavailable

17

SCREW

16108-MW0-750

$2.51

18

PISTON, VACUUM

16111-HM7-670

$92.68

19

PIN, ARM This part replaces 16152-HN5-671.

16152-HN8-003

$4.08

19

PIN, ARM

16152-HN8-003

$4.08

20

VALVE, FLOAT This part replaces 16155-KJ9-751.

16155-413-751

$32.50

20

VALVE, FLOAT

16155-413-751

$32.50

21

COVER, BODY This part replaces 16157-HC4-003.

16157-HN8-003

$27.51

21

COVER, BODY

16157-HN8-003

$27.51

22

GASKET, FLOAT CHAMBER

16163-HM7-700

$10.04

23

HOLDER, NEEDLE JET This part replaces 16165-HC4-840.

16165-HN5-B01

$35.53

23

HOLDER, NEEDLE JET

16165-HN5-B01

$35.53

24

HOLDER, JET

16168-HC4-003

$12.24

25

COLLAR, SETTING

16172-HN0-A00

Unavailable

26

VALVE, ONE-WAY

16180-HC4-003

$18.02

27

JOINT

16180-ML6-671

$15.97

28

VALVE ASSY., AIR CUT

16510-MBW-601

$123.89

29

CLIP, PLATE

17191-MN5-740

Unavailable

30

SCREW, PAN (4X8)

93500-04008-0H

$1.49

30

SCREW, PAN (4X8) This part replaces 93500-04008-1H.

93500-04008-0H

$1.49

31

SCREW, PAN (4X14)

93500-04014-0H

$1.49

31

SCREW, PAN (4X14) This part replaces 93500-04014-1H.

93500-04014-0H

$1.49

32

SCREW-WASHER (4X12)

93892-04012-08

$1.49

32

SCREW-WASHER (4X12) This part replaces 93892-04012-18.

93892-04012-08

$1.49

33

CLIP, TUBE (B7)

95002-02079

$1.49

34

CLIP, TUBE (B8)

95002-02089

$1.49

35

CLIP, TUBE (B6.5)

95002-02659

$1.49

36

BULK HOSE, VACUUM (3.5X1000) (3.5X100)

95005-35001-50M

$13.72

37

BULK HOSE, VACUUM (3.5X1000) (3.5X100)

95005-35001-20M

$9.67

38

BULK HOSE, VACUUM (3.5X1000) (3.5X140)

95005-35001-50M

$13.72

39

BULK HOSE, VACUUM (4.5X1000) (4.5X170)

95005-45001-50M

$7.00

40

BULK HOSE, VACUUM (4.5X1000) (4.5X480)

95005-45001-50M

$7.00

41

JET, MAIN (#125) | (Optional). This part replaces 99101-GHB-1250.

99101-443-1250

$5.78

41

JET (#130) This part replaces 99101-GHB-1300.

99101-MEG-1300

$10.62

41

JET (#130)

99101-MEG-1300

$10.62

41

JET, MAIN (#125) | (Optional).

99101-443-1250

$5.78

42

JET, SLOW (#42) This part replaces 99103-HN5-0420.

99104-HN5-0420

$11.28

42

JET, SLOW (#42)

99104-HN5-0420

$11.28

43

JET (#140)

99108-HM7-1400

$14.57

44

JET (#75)

99110-HN5-0750

$13.13

44

JET (#75) This part replaces 99112-HN5-0750.

99110-HN5-0750

$13.13
