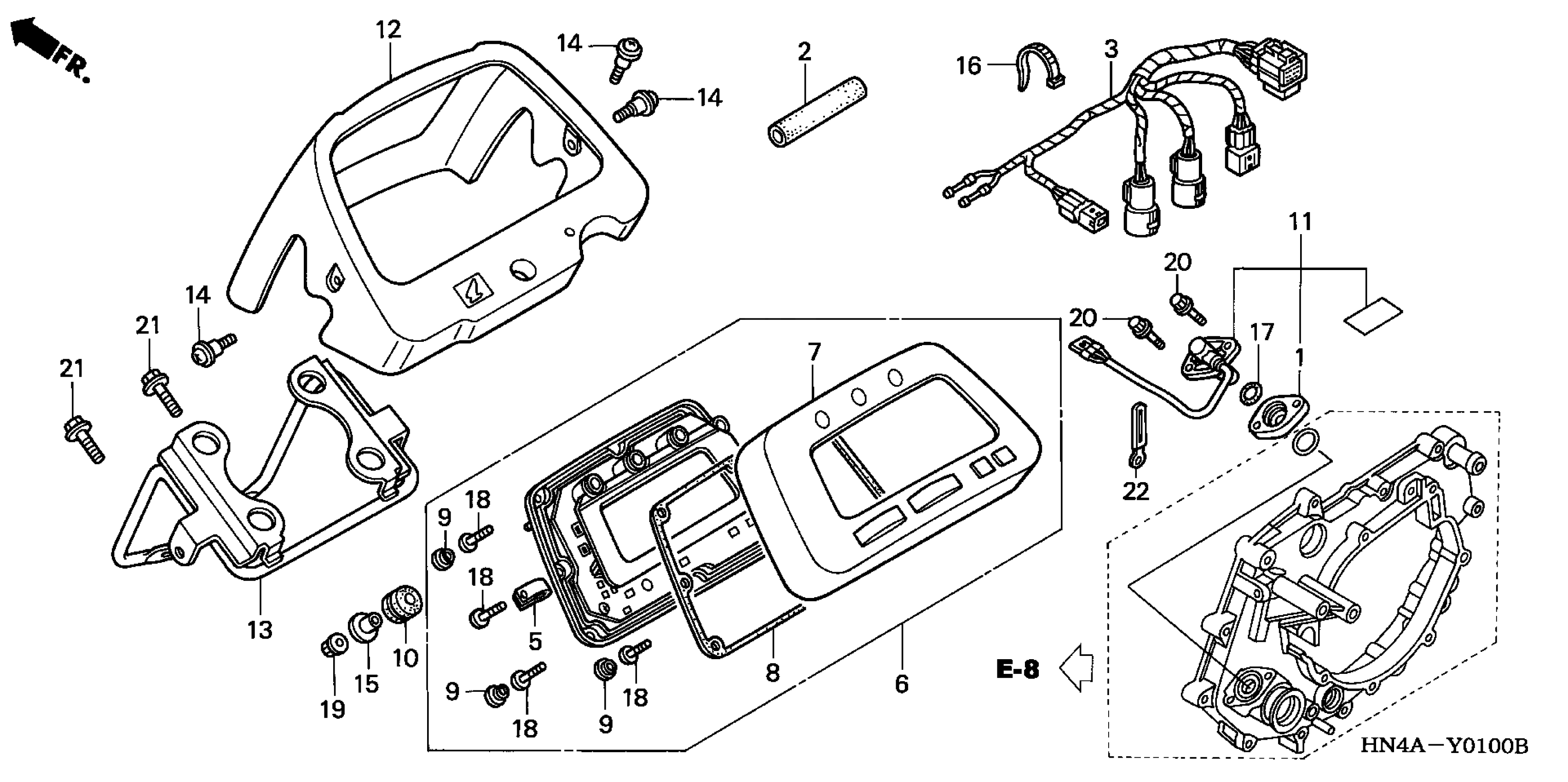

Honda TRX350FM2A (03) FOURTRAX RANCHER 4X4, USA, VIN# 478TE250-34200001 METER Diagram

INSULATOR, SPEED SENSOR

11358-HN5-651

Unavailable

TUBE, FR. FUEL CAP BREATHER

17522-HN5-A10

$2.51

SUB-HARNESS, METER

32300-HN5-671

$38.70

CLAMP

37121-KV3-008

$4.36

METER ASSY., COMBINATION

37200-HN5-671

Unavailable

CASE (UPPER)

37201-HN0-A01

$86.74

GASKET

37211-HN0-A01

$4.44

CAP

37212-HN0-A01

$3.79

RUBBER, MOUNTING

37215-HM5-670

$2.20

SENSOR SET, SPEED

37010-HN5-305

Unavailable

COVER, HANDLE *NH1* (BLACK)

53205-HN5-A10ZA

$57.48

STAY, HANDLE COVER

53207-HN5-A10

$19.16

SCREW, PROTECTOR SETTING

90114-MG9-770

$2.07

COLLAR, RR. FENDER

90502-GG2-000

$5.75

BAND, WIRE HARNESS

90650-MA6-720

$4.15

O-RING (18.3X2.4) (NOK)

91321-PF4-004

$2.92

SCREW, TAPPING (4X16)

93903-24420

$1.49

NUT, FLANGE (6MM)

94050-06070

$1.49

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

BOLT, FLANGE (8X16)

95701-08016-07

$1.80

CLIP (2X60)

91410-679-000

$10.06
