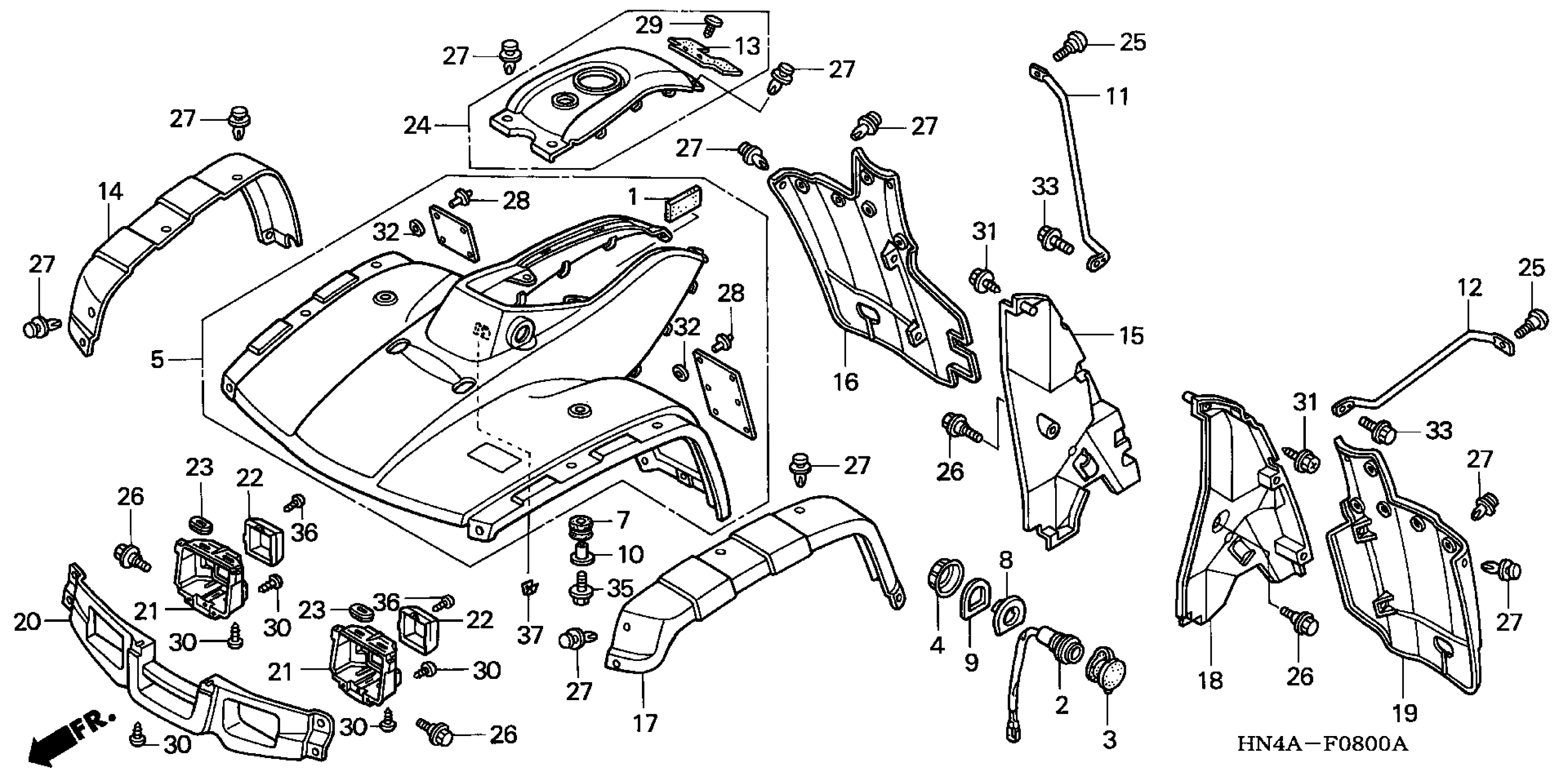

Honda TRX350FM2A (03) FOURTRAX RANCHER 4X4, USA, VIN# 478TE250-34200001 FRONT FENDER Diagram

#

Description
Price

1

CUSHION, TANK

17514-HC0-310

$14.25

2

SOCKET, ACCESSORY

31651-HN5-671

Unavailable

3

CAP

31652-HN0-A01

$10.12

4

NUT

31653-HN0-A01

$4.64

5

FENDER, FR. *R232* (WOL) (PATRIOT RED)

61100-HN5-670ZA

$299.31

5

FENDER, FR. *G152* (WOL) (ADVENTURE GREEN)

61100-HN5-670ZB

$300.38

5

FENDER, FR. *YR222R* (WOL) (ZEST ORANGE-R)

61100-HN5-670ZC

$300.51

7

RUBBER, FR. FENDER MOUNTING

61103-HM5-850

$1.52

8

SPACER, ACCESSORY SOCKET (OUTER) *NH1* (BLACK)

61103-HN5-670ZB

$2.28

9

SPACER, ACCESSORY SOCKET INSIDE *NH1* (BLACK)

61104-HN5-670ZA

$2.70

10

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.42

10

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

11

STAY, R. FR. FENDER SUPPORT

61105-HN5-670

$8.72

12

STAY, L. FR. FENDER SUPPORT

61106-HN5-670

$30.28

13

RUBBER, SNORKEL SEAL

61730-HN5-670

Unavailable

14

SPLASH GUARD, R. FR. SIDE *NH1* (BLACK)

61861-HN5-670ZA

$82.37

15

FENDER, R. (INNER)

61862-HN5-670

Unavailable

16

SPLASH GUARD, R. FR. (LOWER) *NH1* (BLACK)

61863-HN5-670ZA

$387.30

17

SPLASH GUARD, L. FR. SIDE *NH1* (BLACK)

61866-HN5-670ZA

$82.37

18

FENDER, L. (INNER)

61867-HN5-670

$52.46

19

SPLASH GUARD, L. FR. (LOWER) *NH1* (BLACK)

61868-HN5-670ZA

$215.31

20

GRILLE, FR. *NH1* (BLACK)

66300-HN5-670ZA

Unavailable

21

COVER, HEADLIGHT

66301-HN5-670

$64.74

22

CAP, HEADLIGHT TAIL

66303-HN5-670

$4.62

23

GROMMET A, SIDE COVER

83601-MB0-000

$4.53

24

COVER ASSY., FUEL TANK TOP *NH1* (BLACK)

83750-HN5-670ZA

$77.16

25

SCREW, SPECIAL (6X8)

90102-HN5-670

$1.49

26

BOLT, FLANGE (6MM)

90111-162-000

$2.89

27

CLIP, SPLASH GUARD

90653-HC4-900

$1.49

28

RIVET, POP (3.2)

90841-HF1-910

$1.49

29

CLIP, WASHER MOUTH

91504-SD5-901

$4.39

30

SCREW, TAPPING (5X12)

93903-25220

$1.49

31

SCREW, TAPPING (6X16)

93904-26210

$1.49

32

WASHER, PLAIN (3MM)

94103-03800

$1.49

33

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

35

BOLT, FLANGE (6X22)

95701-06022-00

$1.80

36

SCREW, TAPPING (4X12)

93903-24320

$1.49

37

CLAMP, WIRE HARNESS

80106-HB7-000

$4.23
