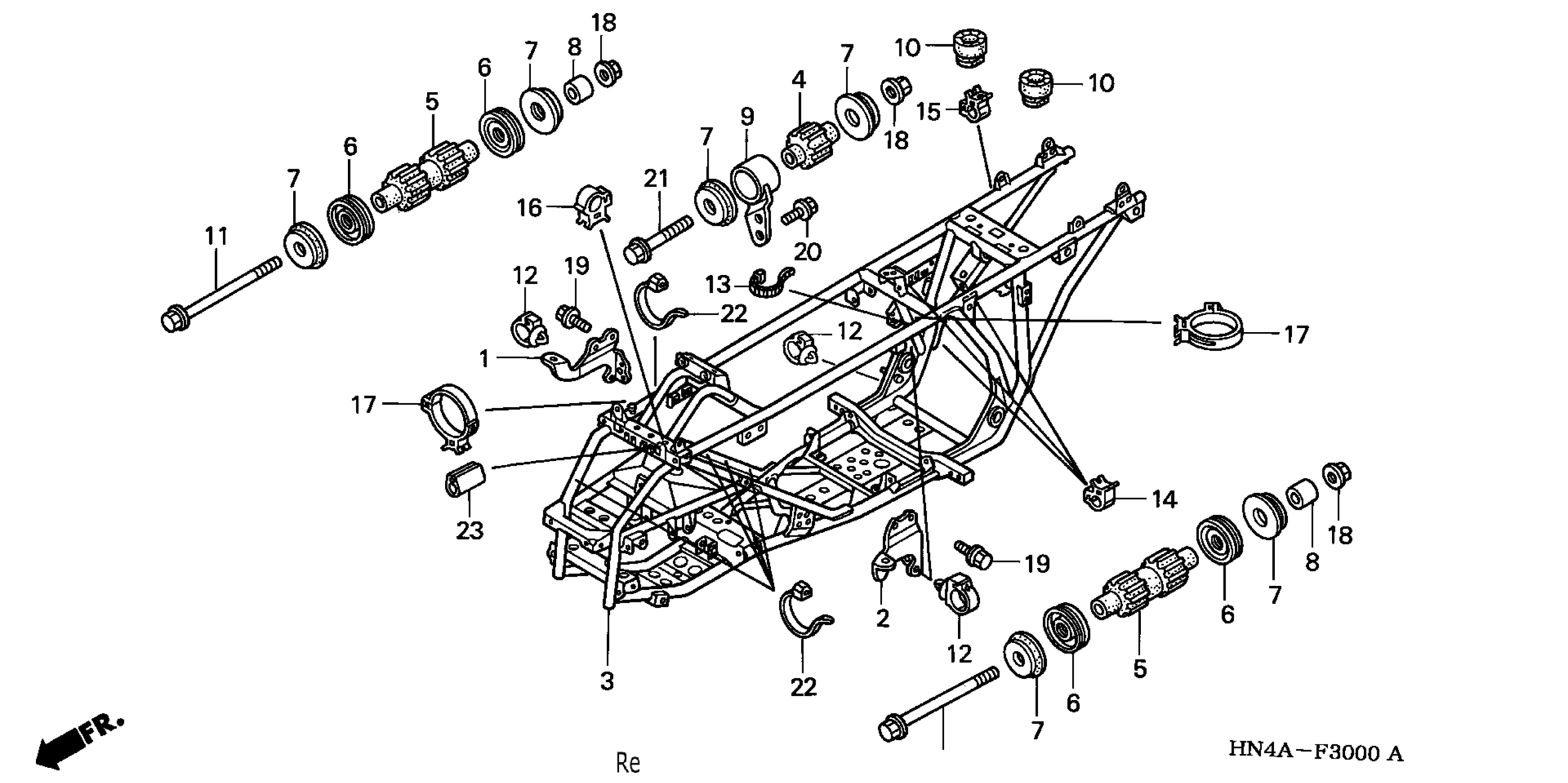

Honda TRX350FM2A (02) FOURTRAX RANCHER 4X4, USA, VIN# 478TE250-24100001 FRAME Diagram

#

Description
Price

1

STAY, R. OIL COOLER

19018-HN5-670

$4.85

2

STAY, L. OIL COOLER

19019-HN5-670

$5.10

3

FRAME This part replaces 50100-HN5-A80.

50100-HN5-M30

Unavailable

3

FRAME This part replaces 50100-HN5-M00.

50100-HN5-M30

Unavailable

3

FRAME

50100-HN5-M30

Unavailable

4

RUBBER, ENGINE HEAD MOUNTING

50201-HN5-670

Unavailable

5

RUBBER, ENGINE MOUNTING (LOWER)

50202-HM8-003

$41.90

6

DUST SEAL, ENGINE MOUNTING

50203-HM7-003

$20.39

7

RUBBER C, MOUNTING

50204-HM8-000

$6.98

8

COLLAR, ENGINE HANGER

50205-HM8-000

$8.16

9

BRACKET, HEAD HANGER

50351-HN5-670

$189.77

10

CUSHION, SEAT MOUNTING

77207-HA0-000

$7.14

11

BOLT, ENGINE HANGER (10X148)

90103-147-000

$12.74

12

CLAMP, HARNESS

90652-HC4-003

$5.95

13

CLIP, CABLE (8MM)

90690-GHB-631

$2.08

14

CLIP, CABLE (10MM)

90690-GHB-641

$2.18

15

CLIP, CABLE (15MM)

90690-GHB-651

$2.08

16

CLIP, CABLE (25MM)

90690-GHB-671

$2.18

17

CLIP, CABLE (30MM)

90690-GHB-681

$2.92

18

NUT, FLANGE (10MM)

94050-10000

$1.59

19

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

20

BOLT, FLANGE (8X22)

95701-08022-00

$2.16

21

BOLT, FLANGE (10X60)

95701-10060-00

$2.03

22

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.92

23

TRIM, FUEL TANK

17516-HC4-000

$3.90
