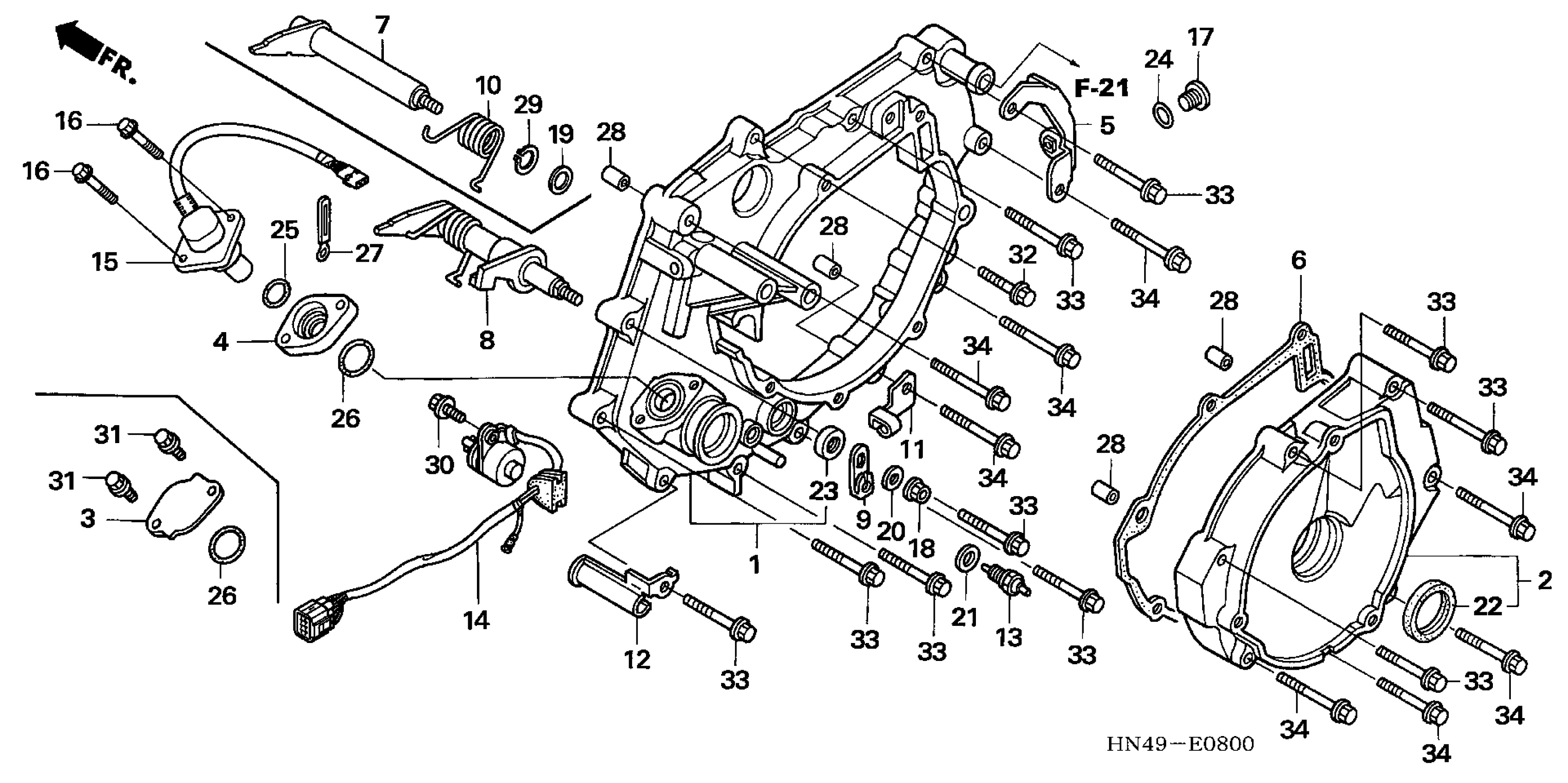

Honda TRX350FEA (06) FOURTRAX RANCHER 4X4 ES, USA, VIN# 1HFTE254-64500001 REAR CRANKCASE COVER Diagram

#

Description
Price

1

COVER, RR. CRANKCASE

11340-HN5-M10

Unavailable

2

COVER, ALTERNATOR

11350-HN5-670

Unavailable

4

INSULATOR, SPEED SENSOR

11358-HN5-M10

Unavailable

5

STAY, R. RR. ENGINE COVER

11370-HN5-670

Unavailable

6

GASKET, ALTERNATOR COVER

11396-HN5-670

$10.53

8

SHAFT, REVERSE STOPPER

24860-HN5-M10

$38.06

9

LEVER, REVERSE STOPPER

24865-HN5-670

$4.18

10

SPRING, REVERSE STOPPER

24867-HN5-670

Unavailable

11

HOLDER, REVERSE STOPPER WIRE

24871-HN5-670

Unavailable

12

CLAMP, THERMO SENSOR WIRE

32855-HN5-670

Unavailable

13

SWITCH ASSY., NEUTRAL (TOYO)

35600-HA0-003

$16.98

14

SWITCH ASSY., CHANGE

35759-HN5-A11

$115.43

15

SENSOR ASSY., SPEED

37700-HN5-M51

Unavailable

16

BOLT, FLANGE (6X25) (NSHF)

90004-GHB-670

$2.77

17

CAP (14MM)

90084-KY2-000

$14.34

18

NUT, U (6MM)

90301-473-003

$3.79

20

WASHER, CRANK ARM

90545-044-000

$1.67

21

WASHER, OIL BOLT

90545-300-000

$3.72

22

OIL SEAL (24X34X7)

91201-HN5-671

$6.35

23

OIL SEAL (10X20X5) (ARAI)

91202-HC0-003

$3.30

24

O-RING (13.8X2.5)

91303-377-000

$3.18

25

O-RING (18.3X2.4) (NOK)

91321-PF4-004

$2.80

26

O-RING (24.5X1.9)

91307-PY4-003

$2.80

26

O-RING (24.5X1.9) This part replaces 91361-MT3-003.

91307-PY4-003

$2.80

27

CLIP (2X60)

91410-679-000

$9.04

28

PIN, DOWEL (8X14)

94301-08140

$2.04

30

BOLT, FLANGE (6X14)

95701-06014-00

$0.91

32

BOLT, FLANGE (6X25)

95701-06025-00

$1.64

33

BOLT, FLANGE (6X35)

95701-06035-00

$1.71

34

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$1.97

34

BOLT, FLANGE (6X45)

95701-06045-07

$1.97
