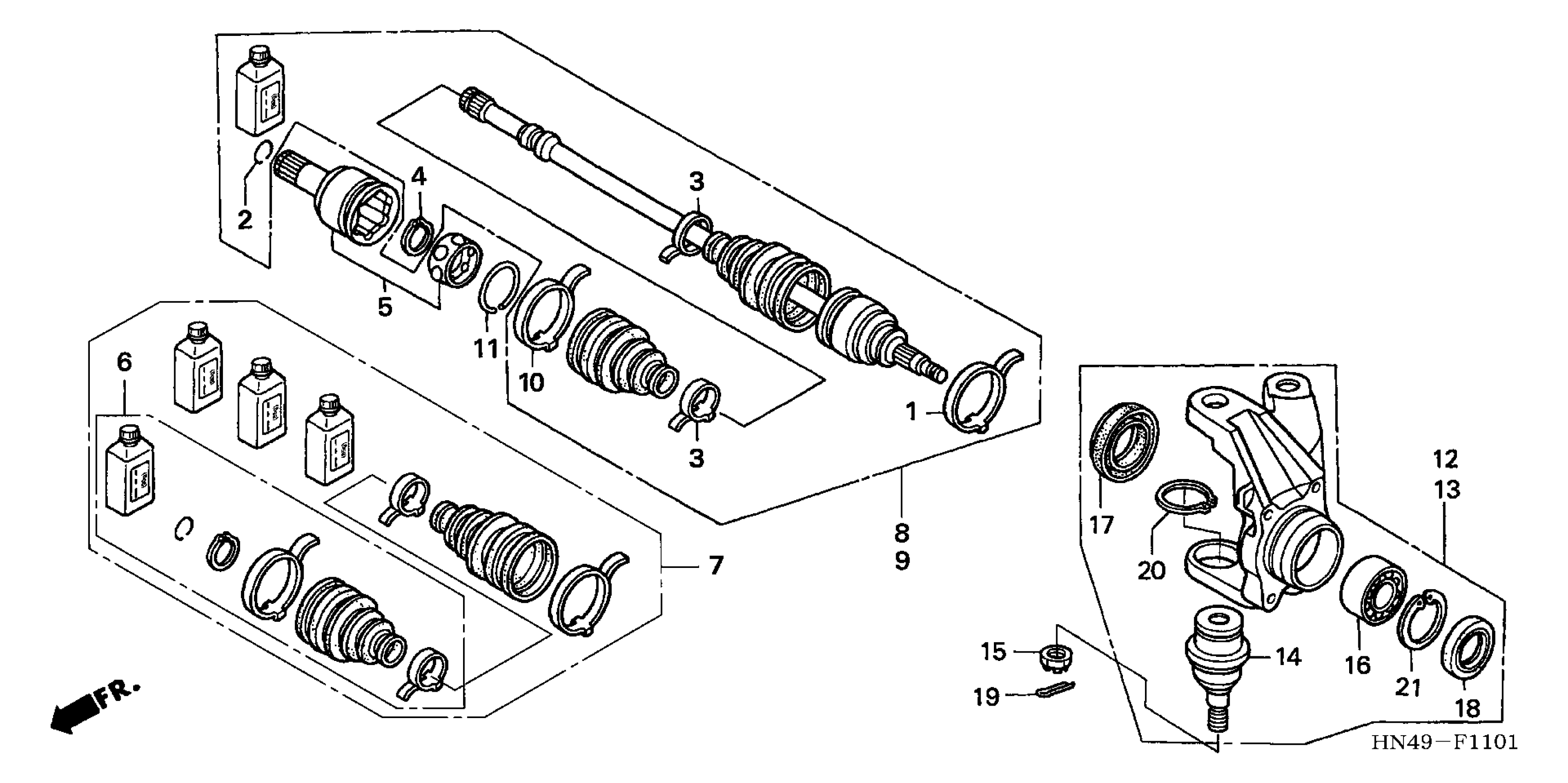

Honda TRX350FEA (06) FOURTRAX RANCHER 4X4 ES, USA, VIN# 1HFTE254-64500001 KNUCKLE (4WD) Diagram

BAND A

42204-HC5-003

$11.53

RING, SNAP

42206-HA7-671

$1.49

BAND C

42206-HC5-003

$7.68

CIRCLIP

42209-HC5-003

$1.49

JOINT, INBOARD

42220-HN5-N01

$169.25

BOOT SET, INBOARD

42230-HN5-N00

Unavailable

BOOT SET This part replaces 42240-HN5-N00.

42240-HN5-N01

$78.46

SHAFT COMP SET R This part replaces 42250-HN5-N00.

42250-HN5-N01

$349.57

SHAFT SET, L. This part replaces 42350-HN5-N00.

42350-HN5-N01

$123.41

BAND B, INBOARD

44205-HN8-A41

$8.67

RING, SNAP

44207-HN8-A41

$7.95

KNUCKLE ASSY., R.

51200-HN5-670

$579.79

KNUCKLE ASSY., L.

51250-HN5-670

$616.62

JOINT A, ARM BALL This part replaces 51355-HM5-A81.

51355-HP5-601

$19.41

JOINT A, ARM BALL

51355-HP5-601

$19.41

NUT, CASTLE (12MM)

90310-HB9-000

$6.05

BEARING, ANGULAR (30X50X20) (TOYO)

91051-HC5-003

$70.28

DUST SEAL (40X58X9)

91209-HN5-671

$9.61

DUST SEAL (38X50X7)

91256-HC5-003

$10.34

PIN, SPLIT (3.0X18)

94201-30180

$1.49

CIRCLIP (OUTER) (32MM)

94514-32000

$1.49

CIRCLIP (INNER) (50MM)

94520-50000

$2.44
