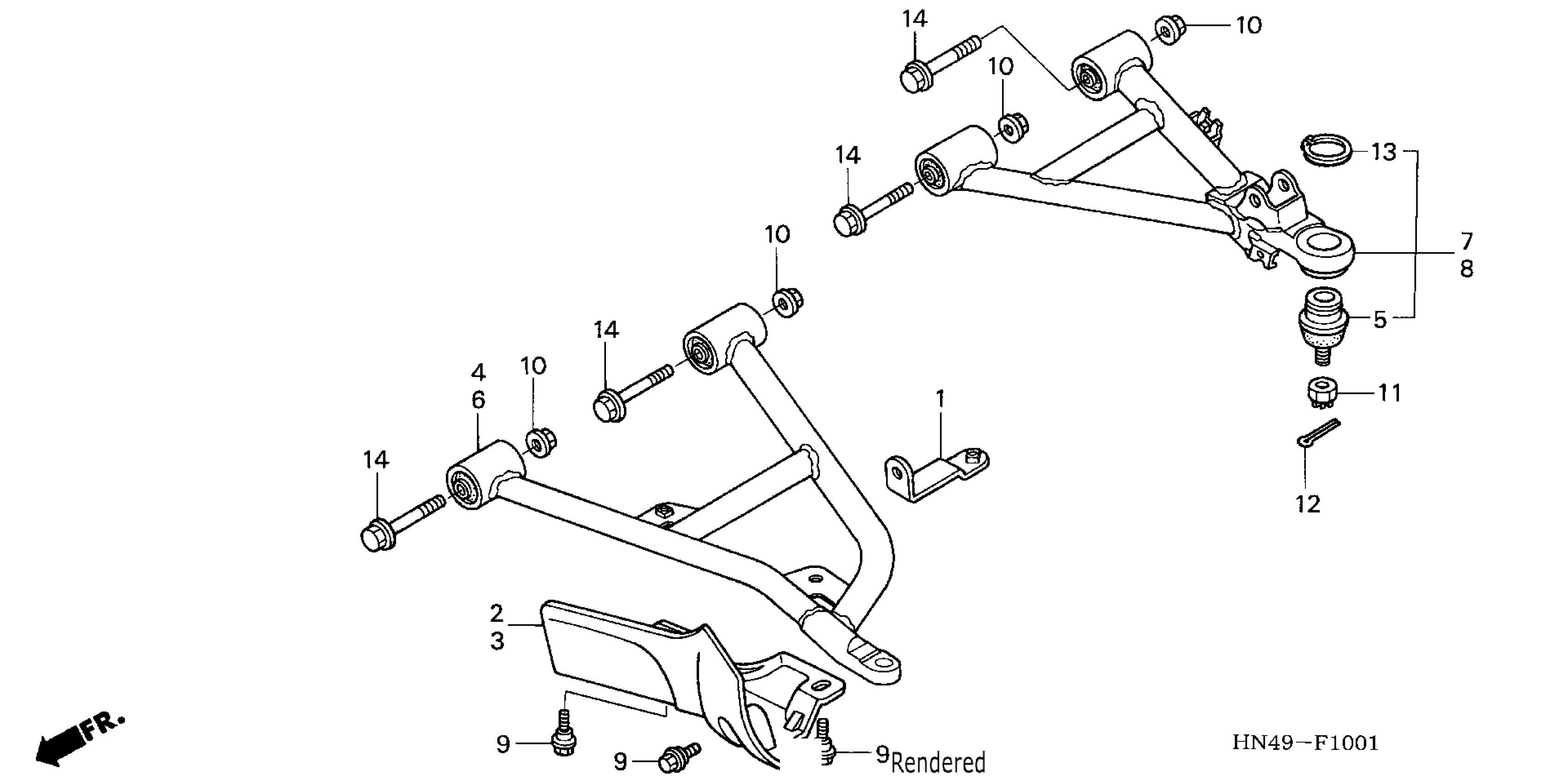

Honda TRX350FEA (06) FOURTRAX RANCHER 4X4 ES, USA, VIN# 1HFTE254-64500001 FRONT ARM (4WD) Diagram

STAY, FR. GUARD

51311-HM7-000

$50.77

GUARD, R. FR.

51315-HN2-000

$12.61

GUARD, L. FR.

51316-HN2-000

$13.38

ARM ASSY., R. (LOWER)

51350-HN5-N00

$105.28

JOINT A, ARM BALL This part replaces 51355-HN0-A01.

51375-HP5-601

$20.53

JOINT A, ARM BALL

51375-HP5-601

$20.53

ARM ASSY., L. (LOWER)

51360-HN5-N00

Unavailable

ARM ASSY., R. (UPPER)

51370-HN5-N00

Unavailable

ARM ASSY., L. (UPPER)

51380-HN5-N00

$131.01

BOLT, FLANGE (6MM)

90111-KT1-780

$14.98

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.99

NUT, CASTLE (12MM)

90310-HB9-000

$6.05

PIN, SPLIT (3.0X18)

94201-30180

$1.49

CIRCLIP, OUTER (34MM)

94514-34000

$1.85

BOLT, FLANGE (10X62)

90151-HC5-000

$7.99

BOLT, FLANGE (10X62) This part replaces 95801-10065-00.

90151-HC5-000

$7.99
