Description

Price

1

SHAFT, PROPELLER

40201-HN5-670

$36.52

2

JOINT, YOKE This part replaces 40210-HM5-731.

40210-HN7-010

$54.06

2

JOINT, YOKE

40210-HN7-010

$54.06

3

SPRING, PROPELLER SHAFT

40215-HN0-671

$2.87

4

HITCH, TRAILER

50810-HN2-000

$98.47

5

SWINGARM ASSY., RR.

52100-HN5-670

Unavailable

6

BOOT, JOINT

52101-HN5-670

$14.63

7

HOLDER, SWINGARM GREASE

52112-MA1-300

$6.72

8

STAY, SKID PLATE

52190-HN5-670

$3.59

9

PIPE ASSY., L. HOUSING

52300-HN5-670

$203.75

10

BOLT A, PIVOT

90121-HM5-930

$8.42

11

BOLT B, PIVOT

90122-HM5-930

$9.67

12

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.86

13

CAP, LOCK NUT

90312-HM5-670

$10.44

14

NUT, SWINGARM PIVOT LOCK

90355-469-000

$16.10

15

BEARING, RADIAL BALL (32X58X13UU)

91055-HN5-681

$17.64

16

BEARING, ANGULAR (7203)

91066-HC4-004

$31.29

17

OIL SEAL (42X58X10) (ARAI)

91255-HA0-681

$18.68

18

DUST SEAL (26X40X5) (NOK)

91268-HN0-A01

$5.44

19

O-RING (75X3.2) (NOK)

91320-HM7-702

$2.74

20

BAND, AIR CLEANER CONNECTING TUBE (48)

95018-48250

$6.17

21

BAND, AIR CLEANER CONNECTING TUBE (90)

95018-90320

$6.48

22

BOLT, FLANGE (10X25)

95701-10025-00

$2.06

23

BOLT, FLANGE (10X60)

95801-10060-00

$2.07

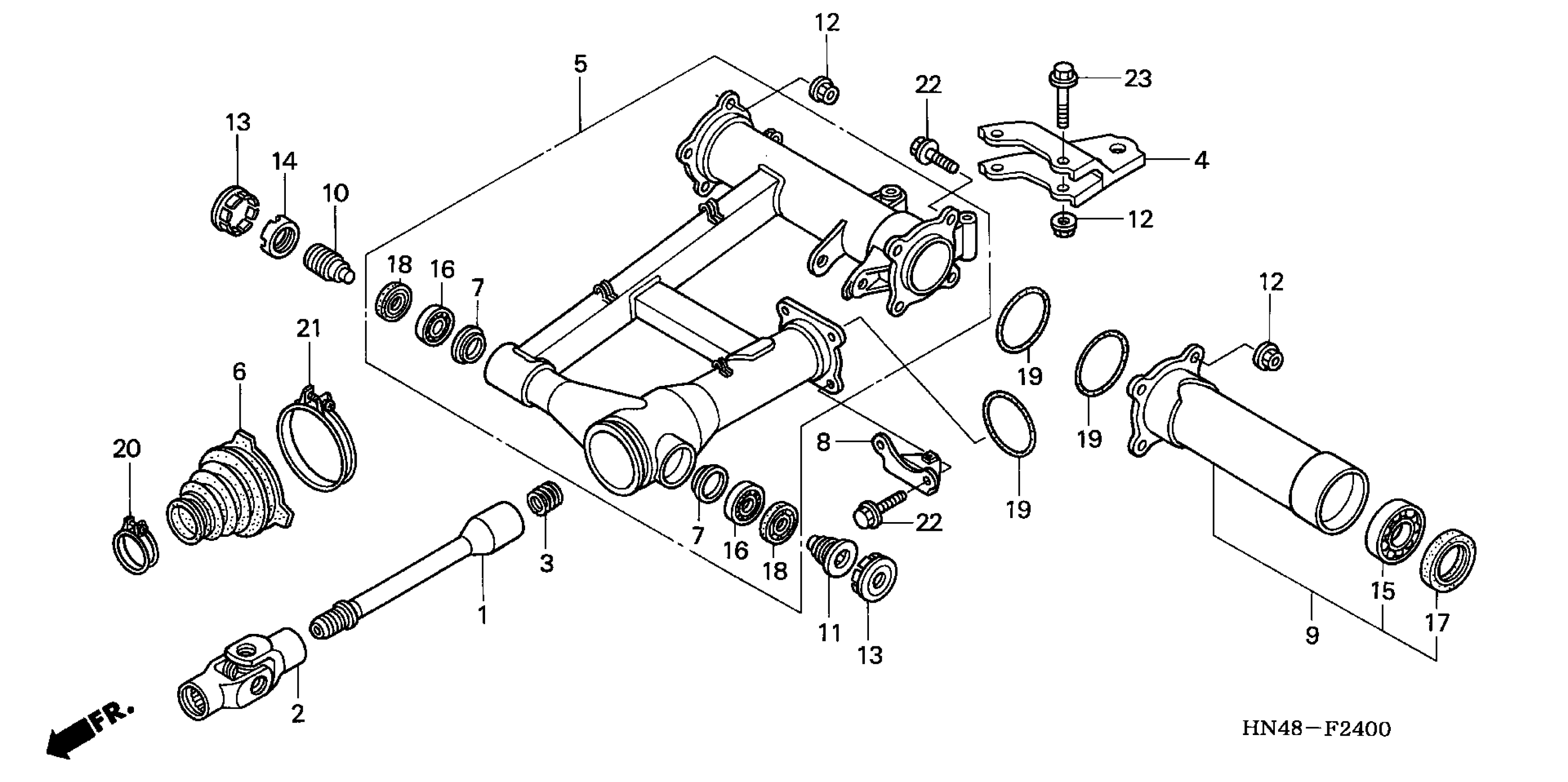

Honda TRX350FEA (05) FOURTRAX RANCHER 4X4 ES, USA, VIN# 1HFTE254-54400001 SWINGARM Diagram
