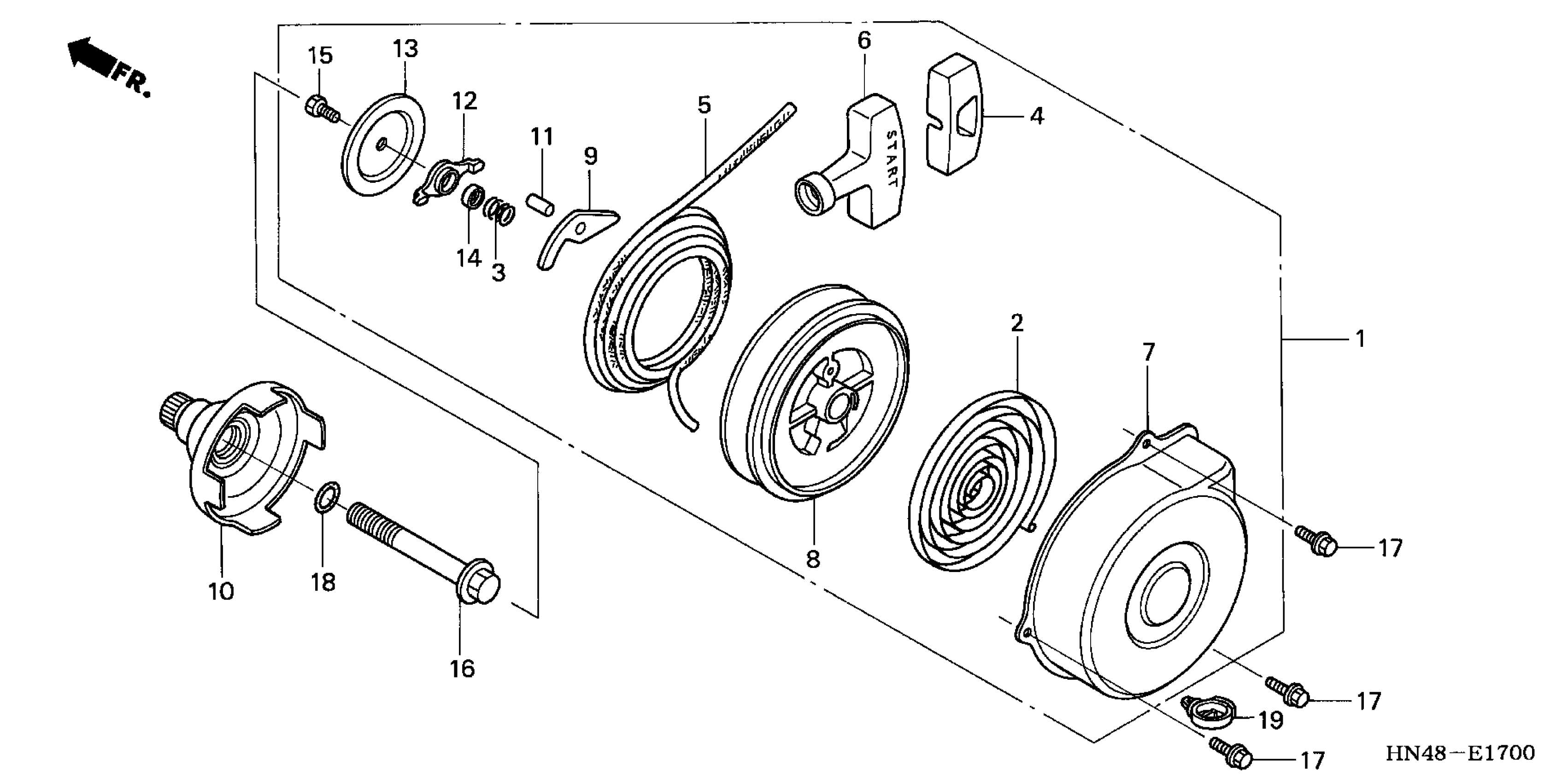

Honda TRX350FEA (05) FOURTRAX RANCHER 4X4 ES, USA, VIN# 1HFTE254-54400001 RECOIL STARTER Diagram

#

Description
Price

1

STARTER ASSY., RECOIL

28400-HN5-M01

Unavailable

2

SPRING, RECOIL STARTER

28402-HB6-004

$30.33

3

SPRING, FRICTION

28404-HN5-M01

Unavailable

4

CAP, KNOB

28405-HN5-M01

$4.94

5

ROPE, RECOIL STARTER

28407-HN5-M01

$11.61

6

KNOB, STARTER

28408-HN5-M01

$18.42

7

CASE, RECOIL STARTER

28410-HN5-M01

$19.13

8

REEL, RECOIL STARTER

28420-HN5-M01

Unavailable

9

RATCHET, STARTER

28422-ZE1-003

$4.36

10

PULLEY, RECOIL

28430-HN5-M00

$28.59

11

PIN, STARTER RATCHET

28432-HB6-004

$2.26

12

GUIDE, RATCHET

28433-HN5-M01

$4.99

13

PLATE, FRICTION

28434-HN5-M01

$13.19

14

COVER, SPRING

28446-968-004

$5.32

15

BOLT

28448-HN5-M01

$4.52

16

BOLT, SPECIAL (12MM)

90081-HN5-670

$5.90

17

BOLT, FLANGE (6X14)

90105-MCE-750

$1.30

18

O-RING (11.5X2.3)

91303-679-003

Unavailable

19

CLIP, WIRE HARNESS (BLACK)

91558-SD5-003

$7.04
