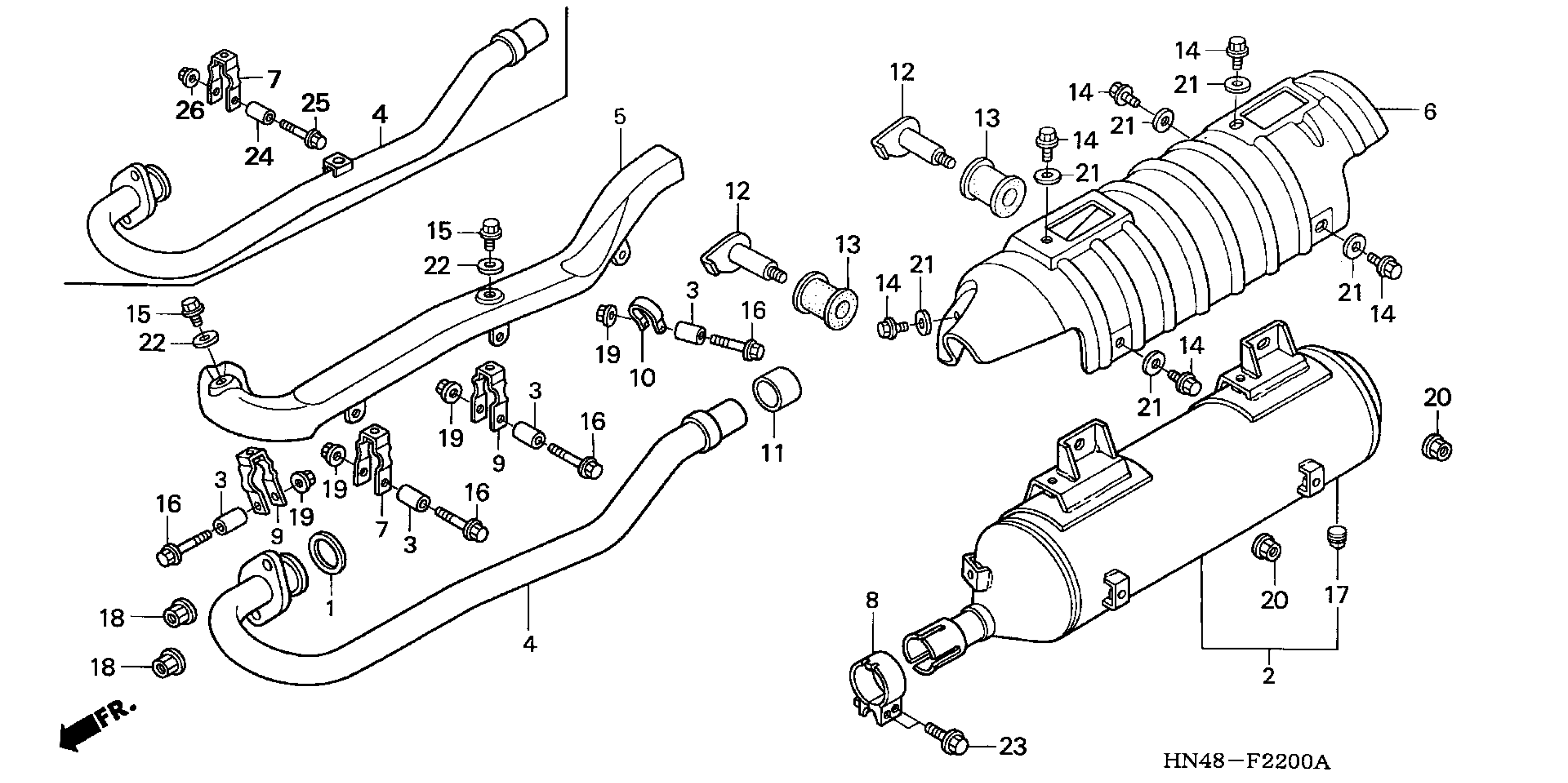

Honda TRX350FEA (05) FOURTRAX RANCHER 4X4 ES, USA, VIN# 1HFTE254-54400001 MUFFLER Diagram

#

Description
Price

1

GASKET, EX. PIPE

18291-MN4-920

$4.94

2

MUFFLER

18310-HN5-670

Unavailable

3

COLLAR, MUFFLER BAND

18318-HN5-670

Unavailable

4

PIPE, EX.

18320-HN5-N00

Unavailable

4

PIPE, EX. This part replaces 18320-HN5-670.

18320-HN5-N00

Unavailable

5

COVER, EX. PIPE

18321-HN5-670

Unavailable

6

COVER, MUFFLER This part replaces 18324-HN5-M40.

18324-HN5-N00

$73.78

6

COVER, MUFFLER

18324-HN5-N00

$73.78

7

BAND A, EX. PIPE COVER

18372-HN5-670

$22.07

8

BAND, EX. MUFFLER

18373-HA0-003

$30.16

9

BAND B, EX. PIPE COVER This part replaces 18373-HN5-670.

18373-HN5-N00

$41.06

10

BAND C, EX. PIPE COVER

18374-HN5-670

$23.16

11

GASKET, MUFFLER

18391-ML8-000

$8.27

12

BOLT, MUFFLER MOUNTING

50607-HN5-670

Unavailable

13

RUBBER, MUFFLER MOUNTING

50608-HN5-670

Unavailable

14

BOLT, FLANGE (6X10)

90011-HN0-A00

$1.16

15

BOLT, FLANGE (6X10)

90011-HN5-670

Unavailable

16

BOLT, FLANGE (6X40)

90012-HN5-670

Unavailable

17

BOLT, ARRESTER

90183-HM5-850

$2.28

18

NUT, FLANGE (8MM)

90301-HM8-000

$2.46

19

NUT, FLANGE (6MM)

94050-06000

$0.59

20

NUT, FLANGE (8MM)

94050-08000

$0.86

21

WASHER, PLAIN (6MM)

94103-06000

$0.90

22

WASHER, PLAIN (6MM)

94103-06700

$0.65

23

BOLT, FLANGE (8X35)

95701-08035-08

$1.28

24

COLLAR, MUFFLER BAND

18318-HN5-670

Unavailable

25

BOLT, FLANGE (6X40)

90012-HN5-670

Unavailable

26

NUT, FLANGE (6MM)

94050-06000

$0.59
