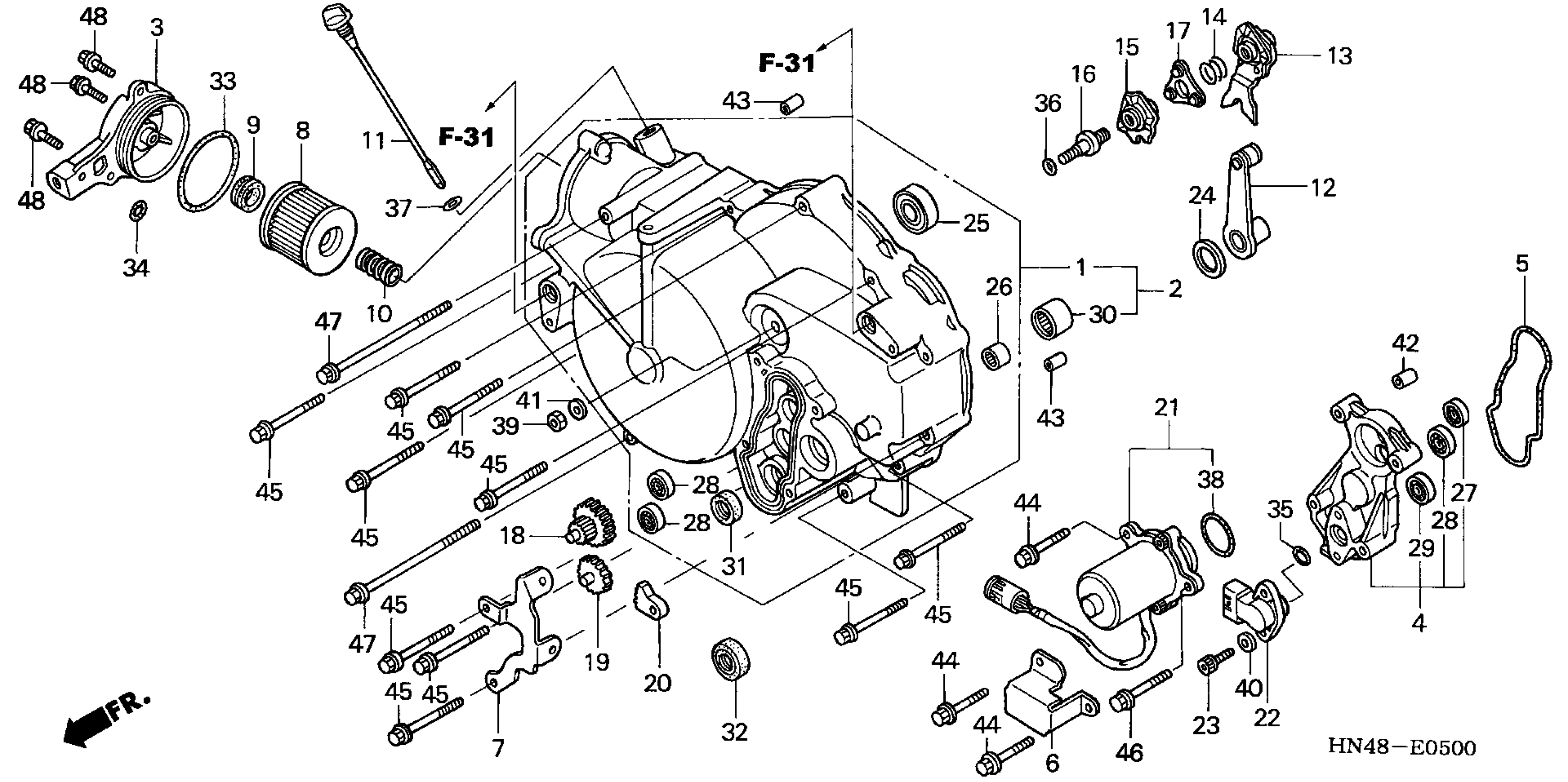

Honda TRX350FEA (05) FOURTRAX RANCHER 4X4 ES, USA, VIN# 1HFTE254-54400001 FRONT CRANKCASE COVER (TE/FE) Diagram

#

Description
Price

2

COVER, FR. CRANKCASE

11330-HN5-M10

Unavailable

3

COVER, OIL FILTER

11333-HN5-670

$48.70

4

COVER, REDUCTION GEAR

11335-HN5-A10

Unavailable

5

O-RING, REDUCTION GEAR COVER

11337-HN5-A10

$6.30

6

PROTECTOR, ANGLE SENSOR

11339-HN5-A10

$9.94

7

STAY, L. FR. ENGINE COVER

11380-HN5-670

Unavailable

8

ELEMENT, OIL FILTER

15412-HM5-A10

$5.50

9

RUBBER, FILTER

15413-MC8-000

$3.35

10

SPRING, OIL FILTER ELEMENT SETTING

15414-KF0-000

$4.24

11

DIPSTICK, OIL

15650-HN5-670

Unavailable

12

LEVER, CLUTCH

22810-HM7-700

$87.24

13

PLATE, CLUTCH CAM

22820-HN5-670

Unavailable

14

SPRING, CAM PLATE SIDE

22825-HN0-671

$3.73

15

PLATE, CLUTCH LIFTER

22830-HN5-670

Unavailable

16

BOLT, CLUTCH ADJUSTING

22841-HC4-000

$7.95

17

RETAINER, BALL

22860-HB3-000

$7.81

18

GEAR, REDUCTION (40T/12T)

24616-HN0-771

$18.28

19

GEAR, REDUCTION (41T/10T)

24615-HN0-771

$16.62

20

GEAR, REDUCTION (7/43T)

24617-HN0-771

$8.13

21

MOTOR ASSY., CONTROL

31300-HN5-A11

$261.70

22

SENSOR ASSY., ANGLE This part replaces 38800-HP0-A11.

38800-HR3-A21

$27.06

23

BOLT, SOCKET (5X20)

90116-KCY-671

$5.80

24

WASHER (10X21.5)

90413-GE0-000

$3.90

25

BEARING, RADIAL BALL (15X32X9)

91009-HF1-671

$22.40

26

BEARING, NEEDLE (10X14X10) (TORRINGTON)

91021-HN0-671

$13.89

27

BEARING, RADIAL BALL (696ZZ)

91050-HN0-A11

$10.62

28

BEARING, RADIAL BALL (626ZZ)

91060-HN0-A11

$10.91

29

BEARING, RADIAL BALL (698ZZ)

91070-HN0-A11

$11.15

30

BEARING, SWINGARM PIVOT (NTN)

91071-KS6-004

$21.15

31

OIL SEAL (10X20X5) (ARAI) This part replaces 91201-KM1-005.

91202-HC0-003

$3.54

31

OIL SEAL (10X20X5) (ARAI)

91202-HC0-003

$3.54

32

OIL SEAL (20X28X5) (KOYO)

91204-HC4-005

$7.08

33

O-RING (54X2.4) (ARAI)

91302-KF0-003

$3.47

34

O-RING (12.7X1.9)

91304-HN5-670

$2.20

35

O-RING, ANGLE SENSOR

91308-HN0-A10

$2.72

36

O-RING (8.2X1.5)

91308-MC7-000

$2.31

37

O-RING (8.4X2.4)

91316-MJ8-003

$2.61

38

O-RING, CONTROL MOTOR

91351-HM8-A51

$3.81

39

NUT, HEX. (8MM)

94030-08000

$1.49

40

WASHER, PLAIN (5MM)

94101-05800

$1.49

41

WASHER, PLAIN (8MM)

94102-08800

$1.49

42

PIN, DOWEL (8X10)

94301-08100

$2.25

43

PIN, DOWEL (8X14)

94301-08140

$2.25

44

BOLT, FLANGE (6X40)

95701-06040-00

$1.80

45

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.06

45

BOLT, FLANGE (6X45)

95701-06045-07

$2.06

46

BOLT, FLANGE (6X45)

95701-06045-08

$2.06

47

BOLT, FLANGE (6X105)

95701-06105-00

$3.09

48

BOLT, FLANGE (6X18)

96001-06018-00

$1.80
