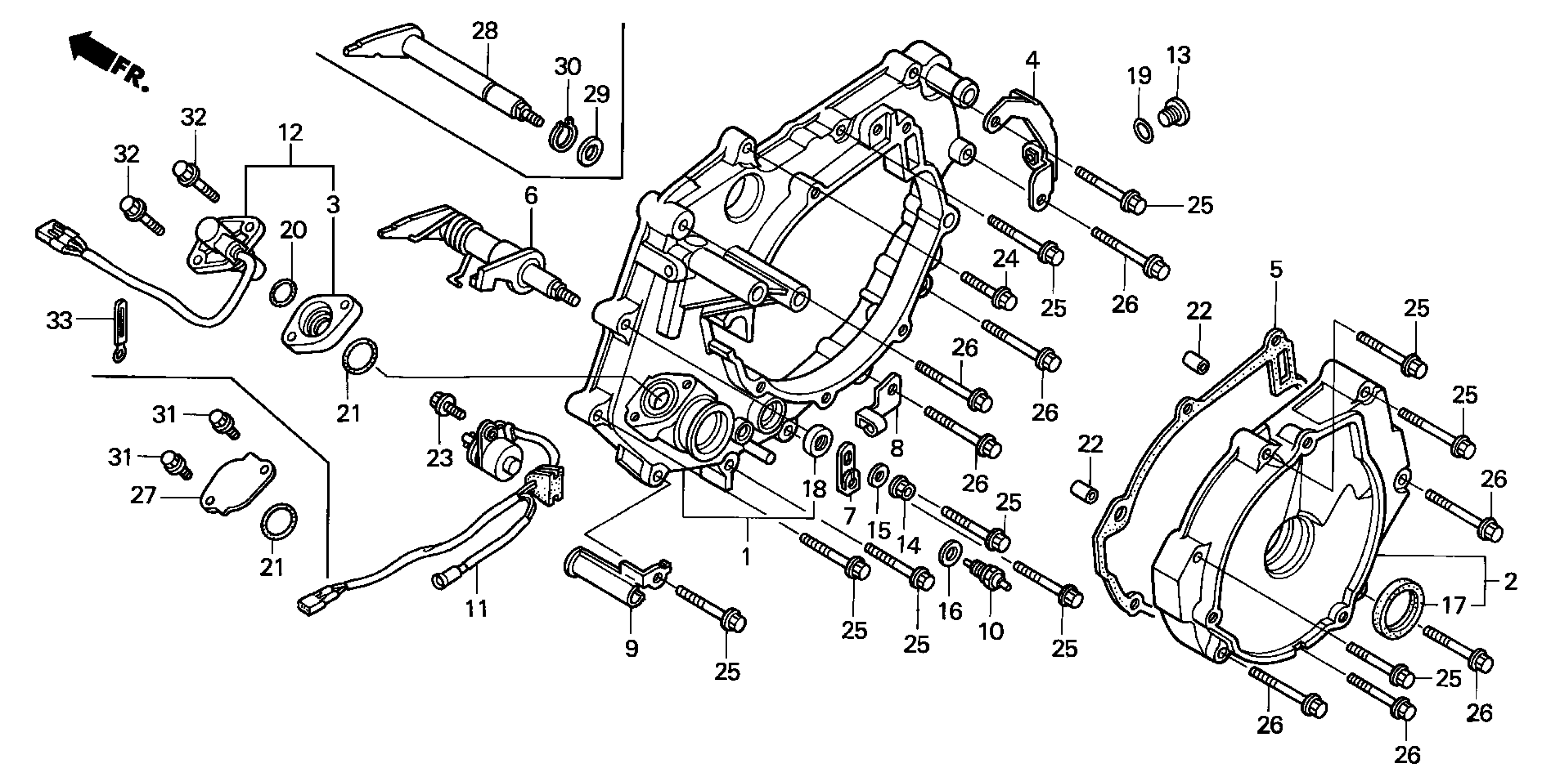

Honda TRX350FEA (01) FOURTRAX RANCHER 4X4 ES, USA, VIN# 478TE254-1A100001 REAR CRANKCASE COVER Diagram

#

Description
Price

1

COVER, RR. CRANKCASE | Use up to Engine SN 8063258 This part replaces 11340-HN5-A10.

11340-HN5-M10

Unavailable

1

COVER, RR. CRANKCASE | Use from Engine SN 8063259 This part replaces 11340-HN5-A11.

11340-HN5-M10

Unavailable

1

COVER, RR. CRANKCASE

11340-HN5-M10

Unavailable

2

COVER, ALTERNATOR

11350-HN5-670

Unavailable

3

INSULATOR, SPEED SENSOR

11358-HN5-651

Unavailable

4

STAY, R. RR. ENGINE COVER

11370-HN5-670

Unavailable

5

GASKET, ALTERNATOR COVER

11396-HN5-670

$10.53

6

SHAFT, REVERSE STOPPER

24860-HN5-A10

Unavailable

7

LEVER, REVERSE STOPPER

24865-HN5-670

$4.18

8

HOLDER, REVERSE STOPPER WIRE

24871-HN5-670

Unavailable

9

CLAMP, THERMO SENSOR WIRE

32855-HN5-670

Unavailable

10

SWITCH ASSY., NEUTRAL (TOYO)

35600-HA0-003

$16.98

11

SWITCH ASSY., CHANGE

35759-HN5-A11

$115.43

12

SENSOR SET, SPEED

37010-HN5-305

Unavailable

13

CAP (14MM)

90084-KY2-000

$14.34

14

NUT, U (6MM) (FUSERASHI)

90301-473-003

$3.79

15

WASHER, CRANK ARM

90545-044-000

$1.67

16

WASHER, OIL BOLT

90545-300-000

$3.72

17

OIL SEAL (24X34X7)

91201-HN5-671

$6.35

18

OIL SEAL (10X20X5) (ARAI)

91202-HC0-003

$3.30

19

O-RING (13.8X2.5)

91303-377-000

$3.18

20

O-RING (18.3X2.4) (NOK)

91321-PF4-004

$2.80

21

O-RING (24.5X1.9)

91307-PY4-003

$2.80

21

O-RING (24.5X1.9) This part replaces 91361-MT3-003.

91307-PY4-003

$2.80

22

PIN, DOWEL (8X14)

94301-08140

$2.04

23

BOLT, FLANGE (6X14)

95701-06014-00

$0.91

24

BOLT, FLANGE (6X25)

95701-06025-00

$1.64

25

BOLT, FLANGE (6X35)

95701-06035-00

$1.71

26

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$1.97

26

BOLT, FLANGE (6X45)

95701-06045-07

$1.97

32

BOLT, FLANGE (6X25)

95701-06025-00

$1.64

33

CLIP (2X60)

91410-679-000

$9.04
