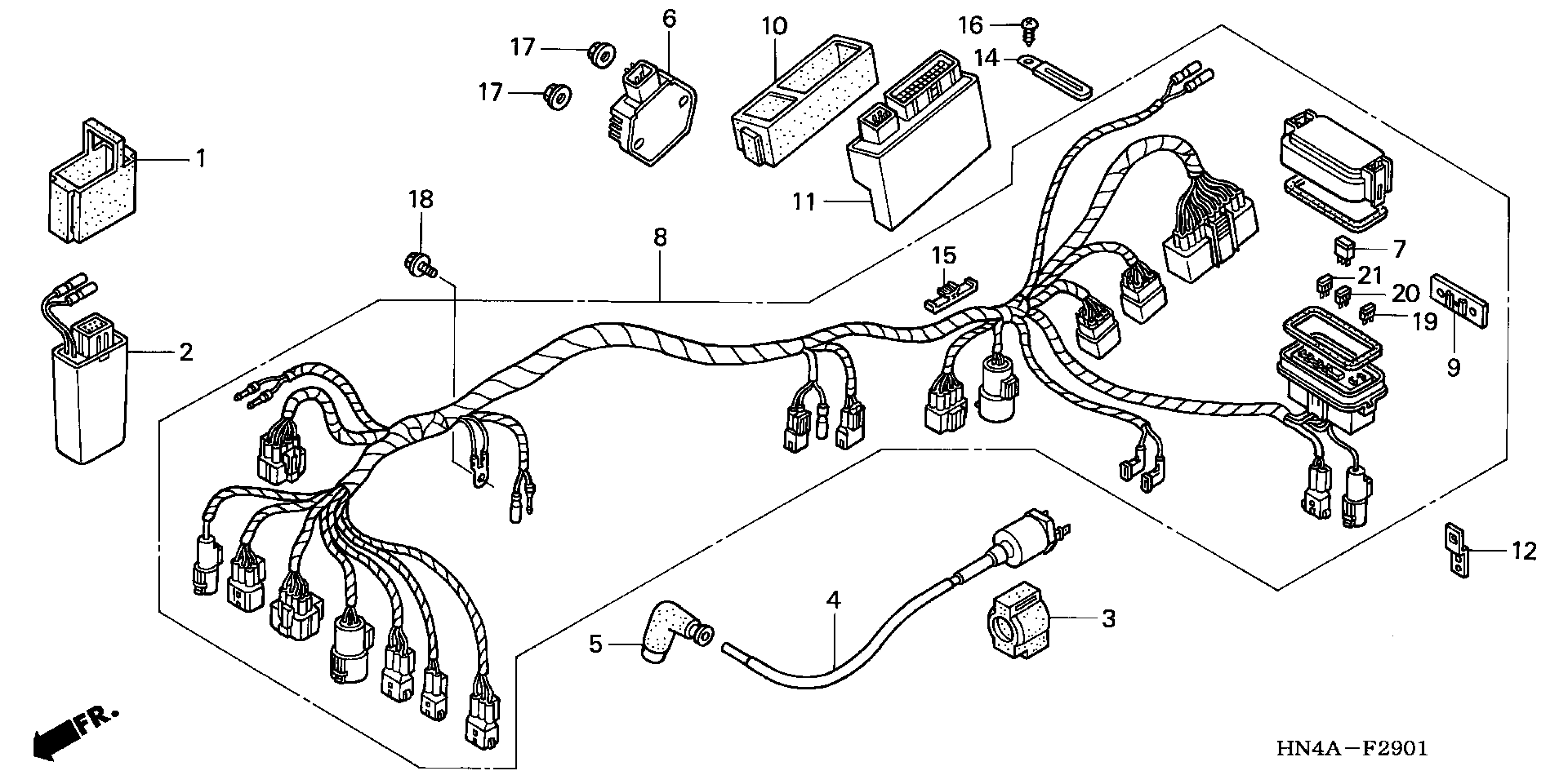

Honda TRX350FE2A (03) FOURTRAX RANCHER 4X4 ES, USA, VIN# 478TE254-34200001 WIRE HARNESS (TRX350TE/FE) Diagram

CUSHION, IGNITION CONTROL MODULE

30401-HM5-A10

$11.30

MODULE, IGNITION CONTROL DIGITAL (CDI)(DC)

30400-HN5-305

$247.88

MODULE, IGNITION CONTROL DIGITAL (CDI)(DC) This part replaces 30410-HN5-671.

30400-HN5-305

$247.88

SUSPENSION, IGNITION COIL

30506-KV3-771

$11.89

COIL, IGNITION This part replaces 30510-HN5-670.

30510-KJ2-405

$86.48

COIL, IGNITION

30510-KJ2-405

$86.48

CAP ASSY., NOISE SUPPRESSOR

30700-MA0-163

$22.32

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-965-013.

30700-MA0-163

$22.32

RECTIFIER ASSY., REGULATOR

31600-HN5-671

$103.62

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$10.81

WIRE HARNESS

32100-HN5-M10

Unavailable

BRACKET, FUSE BOX

38216-HN5-671

$1.75

SUSPENSION, CONTROL UNIT

38901-HN5-A10

$19.02

CONTROL UNIT, CHANGE This part replaces 38910-HN5-M11.

38910-HN5-M12

$532.92

STAY A, CONNECTOR

50327-HN5-670

$3.90

CLIP (4X60)

91410-KT7-000

$5.03

CLIP, WIRE HARNESS (BLACK)

91553-SF4-003

$5.52

SCREW, TAPPING (5X12)

93903-25220

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

BOLT, FLANGE (6X10)

96001-06010-00

$1.55

FUSE, MINI (10A)

98200-41000

$1.49

FUSE, MINI (15A)

98200-41500

$1.49

FUSE, MINI (30A)

98200-43000

$1.67
