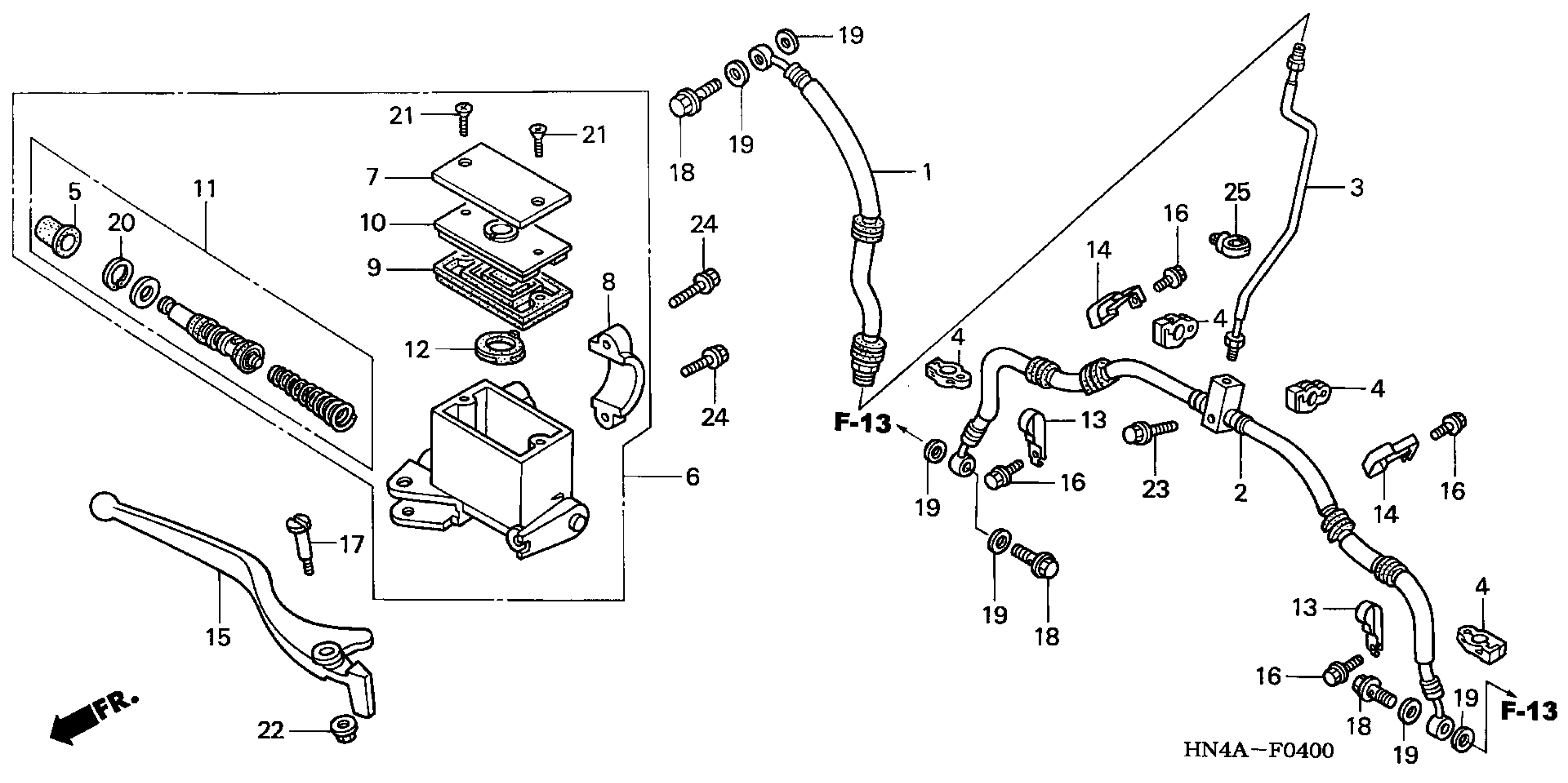

Honda TRX350FE2A (03) FOURTRAX RANCHER 4X4 ES, USA, VIN# 478TE254-34200001 FRONT BRAKE MASTER CYLINDER Diagram

HOSE ASSY., FR. BRAKE

45126-HN5-671

$16.12

HOSE B, FR. BRAKE

45127-HN5-671

$129.71

PIPE, FR. BRAKE

45128-HN5-670

Unavailable

CLIP, BRAKE HOSE

45401-HM5-850

$1.93

BOOT

45504-410-003

$12.16

MASTER CYLINDER SUB-ASSY., FR.

45510-HN5-671

$86.59

CAP, MASTER CYLINDER (COO)

45513-HR0-305

$4.28

CAP, MASTER CYLINDER (COO) This part replaces 45513-KK1-771.

45513-HR0-305

$4.28

HOLDER, MASTER CYLINDER

45517-166-006

$13.55

DIAPHRAGM

45520-MG7-006

$10.61

PLATE, DIAPHRAGM

45521-HA2-006

$10.85

MASTER CYLINDER SET

45530-471-831

$40.86

SEPARATOR

46666-HB9-006

$9.38

CLAMP B, FR. BRAKE HOSE

51208-HN5-670

Unavailable

CLAMP A, FR. BRAKE HOSE

51207-HN5-670

$51.85

LEVER, R. HANDLEBAR

53175-HC0-670

Unavailable

BOLT, FLANGE (6X10)

90107-HC5-000

$2.33

BOLT, HANDLE LEVER PIVOT

90114-166-006

$6.51

BOLT, OIL (10X22)

90145-MS9-612

$7.54

WASHER, OIL BOLT

90545-300-000

$3.99

CIRCLIP

90651-MA5-671

$2.66

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

BOLT, FLANGE (6X25)

95701-06025-07

$1.80

BOLT, FLANGE (6X22)

96001-06022-07

$1.85

CLIP, WIRE HARNESS (25MM)

90683-SA0-003

$9.47
