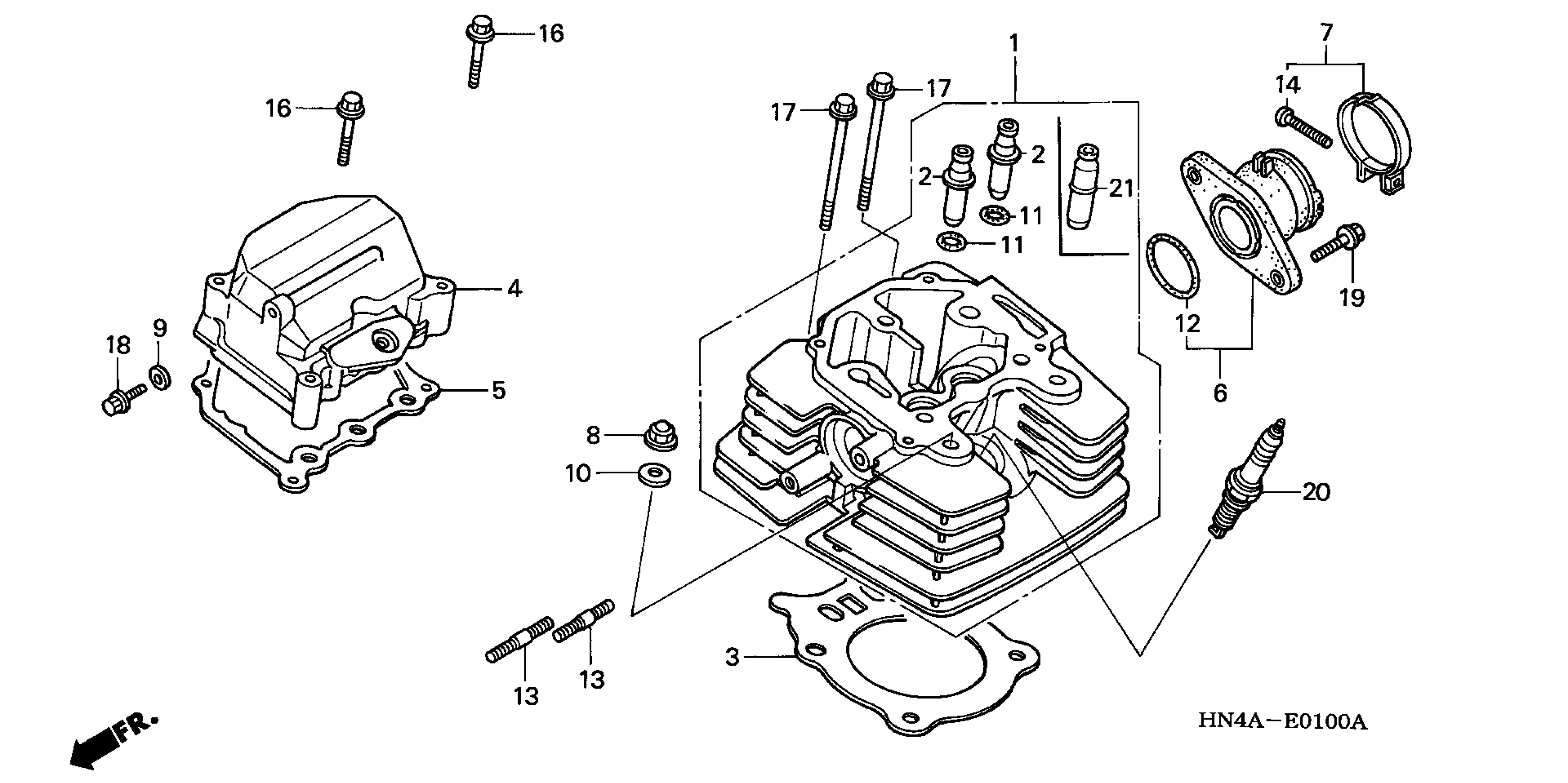

Honda TRX350FE2A (03) FOURTRAX RANCHER 4X4 ES, USA, VIN# 478TE254-34200001 CYLINDER HEAD Diagram

CYLINDER HEAD

12200-HN5-M00

$432.25

GASKET, CYLINDER HEAD

12251-HN5-671

$20.57

COVER, CYLINDER HEAD

12311-HN5-670

Unavailable

GASKET, HEAD COVER

12315-HN5-671

$12.26

INSULATOR, CARBURETOR

16210-HN5-671

$37.44

BAND, INSULATOR

16219-HC4-000

$10.56

NUT, CAP (10MM)

90201-HA0-000

$5.99

NUT, CAP (10MM) This part replaces 90202-HA0-000.

90201-HA0-000

$5.99

WASHER, SEALING (6MM)

90441-706-000

$1.06

WASHER (10MM)

90465-MM9-000

$3.30

O-RING (33.7X2.4)

91305-HN5-671

$3.96

BOLT, STUD (8X25)

92900-08025-0B

$2.00

SCREW, PAN (5X28)

93500-05028-0G

$0.62

BOLT, FLANGE (6X40)

95701-06040-00

$1.71

BOLT, FLANGE (6X110)

95701-06110-00

$2.88

BOLT, FLANGE (6X12)

96001-06012-00

$1.64

BOLT, FLANGE (6X22)

96001-06022-00

$1.13

SPARK PLUG (DPR6EA-9) (NGK) | (Optional).

98069-56916

$2.00

SPARK PLUG (X20EPR-U9) (DENSO) | (Optional).

98069-56926

$2.25

SPARK PLUG (DPR7EA-9) (NGK)

98069-57916

$2.00

SPARK PLUG (X22EPR-U9) (DENSO)

98069-57926

$2.25

GUIDE, VALVE (OVER SIZE)

12204-HN0-305

$18.72
