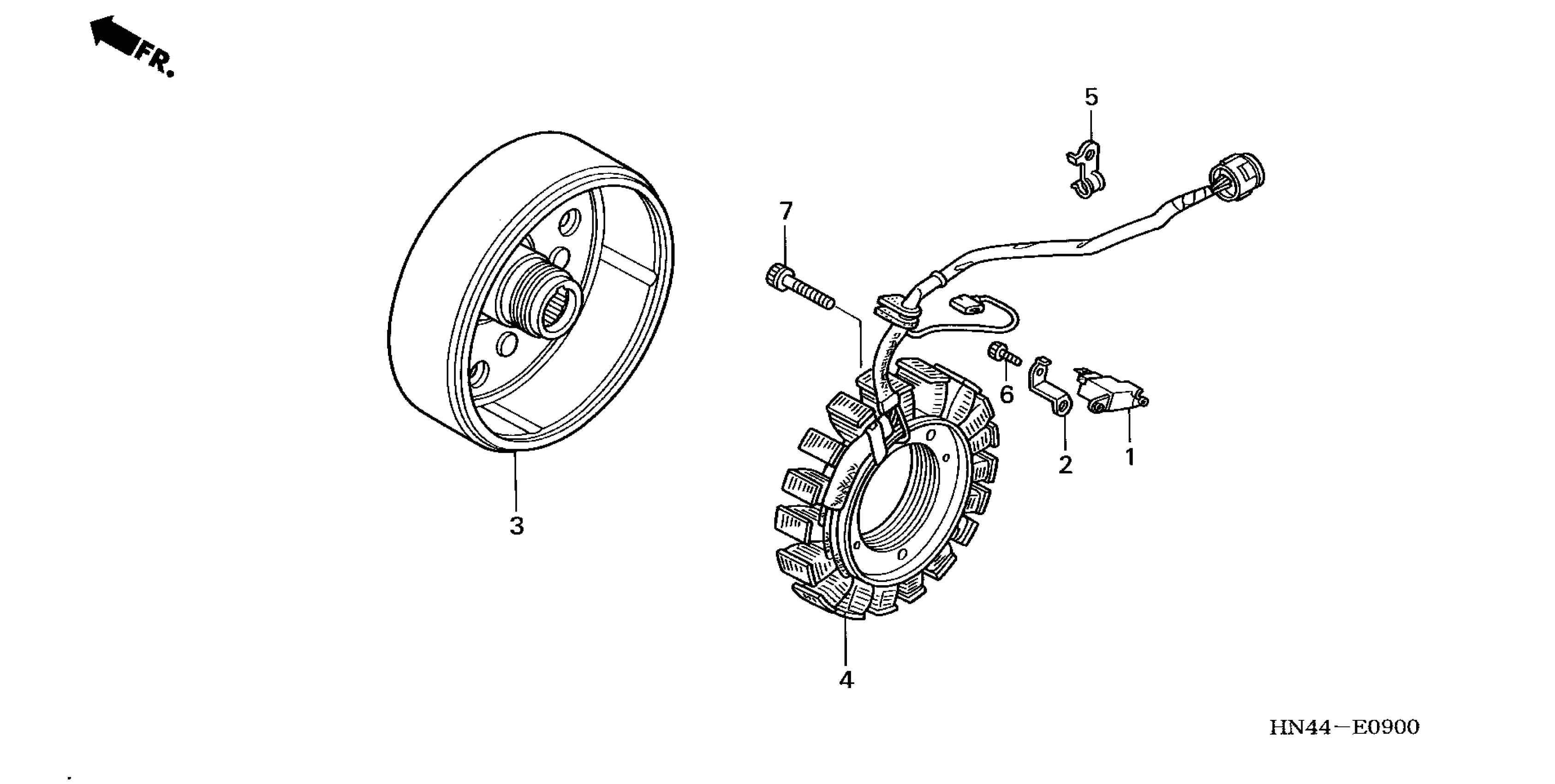

Honda TRX350FE2A (03) FOURTRAX RANCHER 4X4 ES, USA, VIN# 478TE254-34200001 ALTERNATOR Diagram

#

Description

Price

1

GENERATOR ASSY., PULSE (TEC)

30300-HA0-033

$37.40

2

CLAMP, PULSER WIRE

30301-HN5-670

Unavailable

3

FLYWHEEL (DENSO)

31110-HN5-671

Unavailable

3

FLYWHEEL (MITSUBA)

31110-HN5-672

Unavailable

4

STATOR (DENSO)

31120-HN5-M01

Unavailable

4

STATOR

31120-HN5-672

Unavailable

4

STATOR This part replaces 31120-HN5-M02.

31120-HN5-672

Unavailable

5

CLIP, ALTERNATOR WIRE

32921-HN5-670

$3.94

6

BOLT, SOCKET (5X12)

90089-KR0-000

$2.80

7

BOLT, SOCKET (6X25)

96700-06025-08

$1.85
