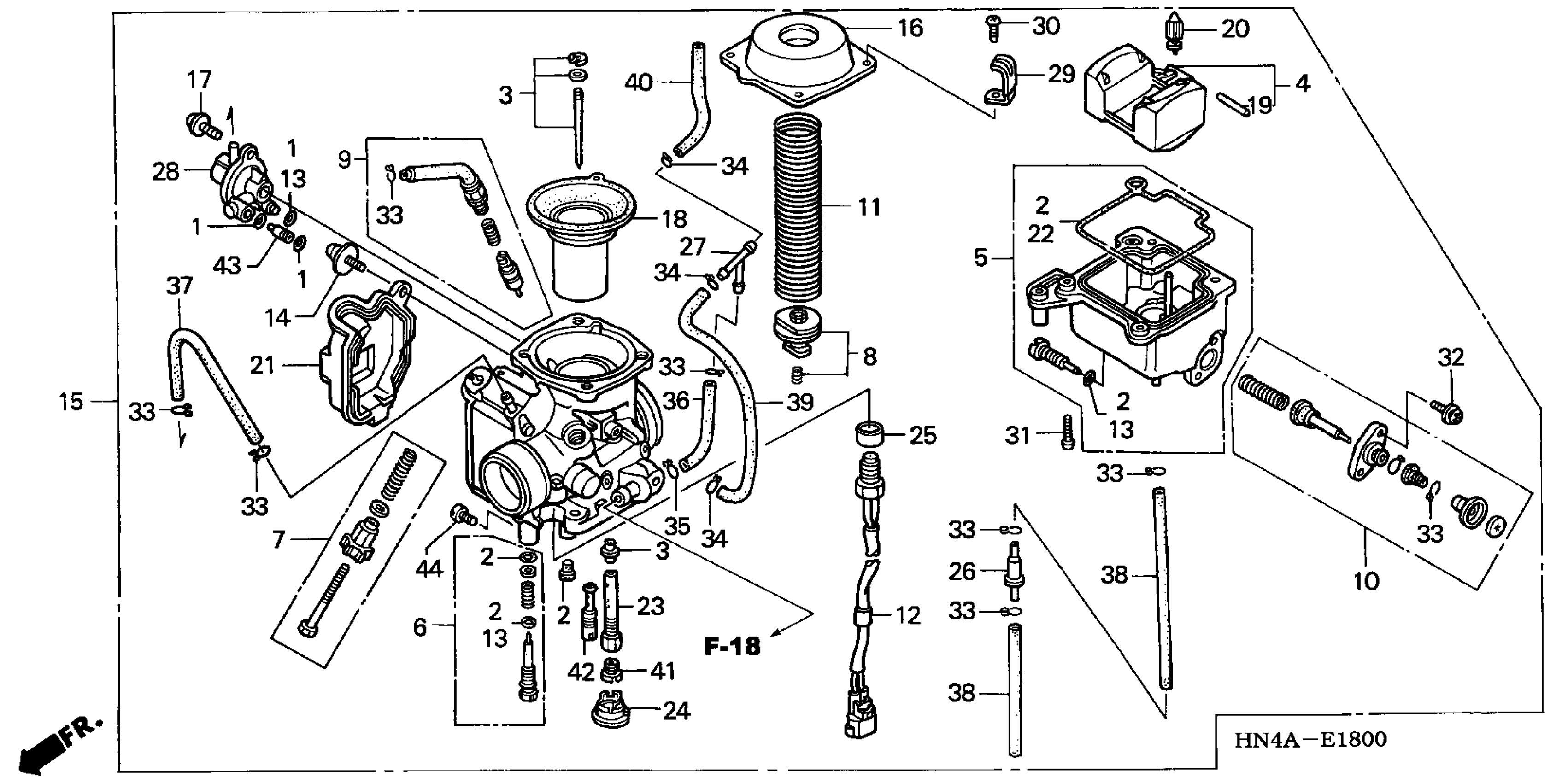

Honda TRX350FE2A (02) FOURTRAX RANCHER 4X4 ES, USA, VIN# 478TE254-24100001 CARBURETOR Diagram

#

Description
Price

1

GASKET SET C This part replaces 16010-HM7-670.

16041-MZ5-600

$16.19

2

GASKET SET

16010-HM7-700

$22.38

3

NEEDLE SET, JET

16012-HN5-671

Unavailable

4

FLOAT SET

16013-HN5-671

$38.68

5

CHAMBER SET, FLOAT

16015-HM7-700

Unavailable

6

SCREW SET

16016-HM3-L00

Unavailable

7

SCREW SET

16028-HM5-730

$15.33

8

PLATE SET, VALVE

16037-HM5-L00

$18.35

9

VALVE SET, STARTER

16046-HM5-730

$60.61

10

PUMP SET This part replaces 16048-HM7-700.

16048-HN7-003

$78.73

11

SPRING, COMPRESSION COIL

16050-HM5-L00

$10.84

12

HEATER ASSY. This part replaces 16070-HN5-671.

16070-HN5-672

$55.42

12

HEATER ASSY.

16070-HN5-672

$55.42

13

O-RING (1.3X4.3)

16075-GHB-640

$2.65

14

SCREW-WASHER

16080-HC0-003

$3.86

15

CARBURETOR ASSY. (VE94A C)

16100-HN5-673

$324.17

16

TOP

16107-KM3-702

Unavailable

17

SCREW

16108-MW0-750

$2.29

18

PISTON, VACUUM

16111-HM7-670

$83.22

19

PIN, ARM This part replaces 16152-HN5-671.

16152-HN8-003

$3.80

19

PIN, ARM

16152-HN8-003

$3.80

20

VALVE, FLOAT This part replaces 16155-KJ9-751.

16155-413-751

$29.18

20

VALVE, FLOAT

16155-413-751

$29.18

21

COVER, BODY This part replaces 16157-HC4-003.

16157-HN8-003

$24.70

21

COVER, BODY

16157-HN8-003

$24.70

22

GASKET, FLOAT CHAMBER

16163-HM7-700

$9.03

23

HOLDER, NEEDLE JET This part replaces 16165-HC4-840.

16165-HN5-B01

$28.17

23

HOLDER, NEEDLE JET

16165-HN5-B01

$28.17

24

HOLDER, JET

16168-HC4-003

$9.70

25

COLLAR, SETTING

16172-HN0-A00

Unavailable

26

VALVE, ONE-WAY

16180-HC4-003

$16.19

27

JOINT

16180-ML6-671

$14.34

28

VALVE ASSY., AIR CUT

16510-MBW-601

$112.80

29

CLIP, PLATE

17191-MN5-740

Unavailable

30

SCREW, PAN (4X8)

93500-04008-0H

$0.83

30

SCREW, PAN (4X8) This part replaces 93500-04008-1H.

93500-04008-0H

$0.83

31

SCREW, PAN (4X14)

93500-04014-0H

$0.75

31

SCREW, PAN (4X14) This part replaces 93500-04014-1H.

93500-04014-0H

$0.75

32

SCREW-WASHER (4X12)

93892-04012-08

$0.58

32

SCREW-WASHER (4X12) This part replaces 93892-04012-18.

93892-04012-08

$0.58

33

CLIP, TUBE (B7)

95002-02079

$1.09

34

CLIP, TUBE (B8)

95002-02089

Unavailable

35

CLIP, TUBE (B6.5)

95002-02659

$1.00

36

BULK HOSE, VACUUM (3.5X1000) (3.5X100)

95005-35001-50M

$12.31

37

BULK HOSE, VACUUM (3.5X1000) (3.5X100)

95005-35001-20M

$8.69

38

BULK HOSE, VACUUM (3.5X1000) (3.5X140)

95005-35001-50M

$12.31

39

BULK HOSE, VACUUM (4.5X1000) (4.5X170)

95005-45001-50M

$6.52

40

BULK HOSE, VACUUM (4.5X1000) (4.5X480)

95005-45001-50M

$6.52

41

JET, MAIN (#120) | (Optional). This part replaces 99101-GHB-1200.

99101-MBZ-1200

$8.19

41

JET, MAIN (#120) | (Optional).

99101-MBZ-1200

$8.19

41

JET (#130) This part replaces 99101-GHB-1300.

99101-MEG-1300

$9.67

41

JET (#130)

99101-MEG-1300

$9.67

42

JET, SLOW (#42) This part replaces 99103-HN5-0420.

99104-HN5-0420

$10.13

42

JET, SLOW (#42)

99104-HN5-0420

$10.13

43

JET (#140)

99108-HM7-1400

$13.28

44

JET (#75) This part replaces 99112-HN5-0750.

99110-HN5-0750

Unavailable
