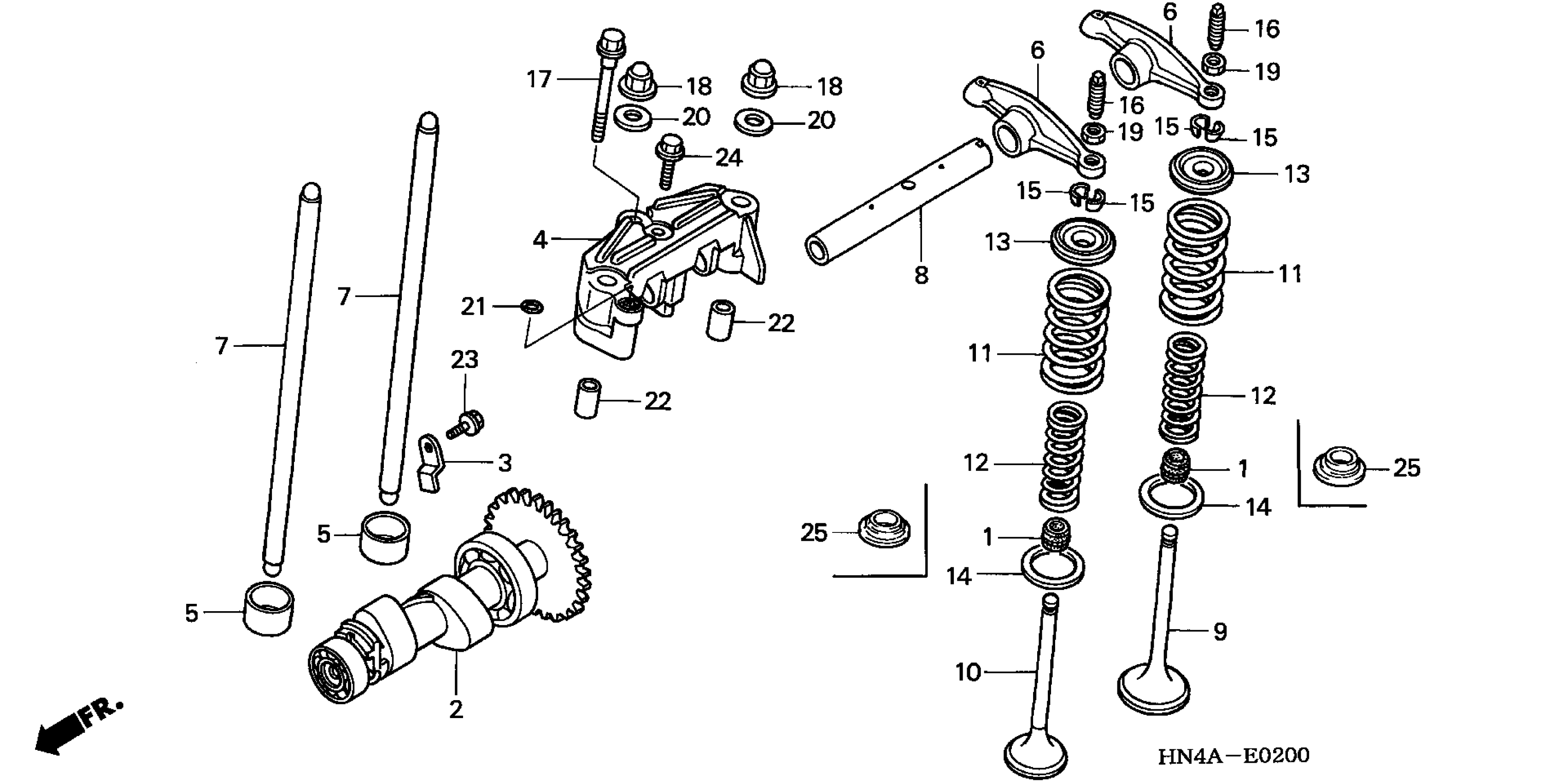

Honda TRX350FE2A (02) FOURTRAX RANCHER 4X4 ES, USA, VIN# 478TE254-24100001 CAMSHAFT Diagram

#

Description
Price

1

SEAL, VALVE STEM (NOK)

12209-KL4-005

$7.81

2

CAMSHAFT

14100-HN5-670

Unavailable

3

PLATE, CAM FIXING

14115-HN5-670

Unavailable

4

HOLDER, ROCKER ARM

14411-HN5-670

Unavailable

5

FOLLOWER, CAM

14421-HM7-000

$35.38

6

ARM, VALVE ROCKER

14431-HM8-000

Unavailable

7

ROD, PUSH

14440-HN5-670

$13.86

8

SHAFT, ROCKER ARM

14451-HN5-670

Unavailable

9

VALVE, IN.

14711-HN5-670

Unavailable

10

VALVE, EX.

14721-HN5-671

Unavailable

11

SPRING, VALVE (OUTER)

14751-HN0-A00

$9.76

12

SPRING, VALVE (INNER)

14761-HM8-000

$6.40

13

RETAINER, VALVE SPRING

14771-KE5-000

$11.72

14

SEAT, VALVE SPRING

14775-KE5-000

$4.94

15

COTTER, VALVE

14781-HA0-770

$3.45

16

SCREW, TAPPET ADJUSTING

90012-426-000

$5.94

17

BOLT, SPECIAL (8MM)

90081-HB3-000

Unavailable

18

NUT, CAP (10MM)

90201-HA0-000

$6.45

18

NUT, CAP (10MM) This part replaces 90202-HA0-000.

90201-HA0-000

$6.45

19

NUT, TAPPET ADJUSTING

90206-250-000

$2.94

20

WASHER (10MM)

90465-MM9-000

$3.54

21

O-RING (7.7X2.5)

91303-428-003

$1.90

22

PIN A, DOWEL (12X16)

94301-12160

$2.27

23

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

24

BOLT, FLANGE (6X18)

95701-06018-00

$1.62
