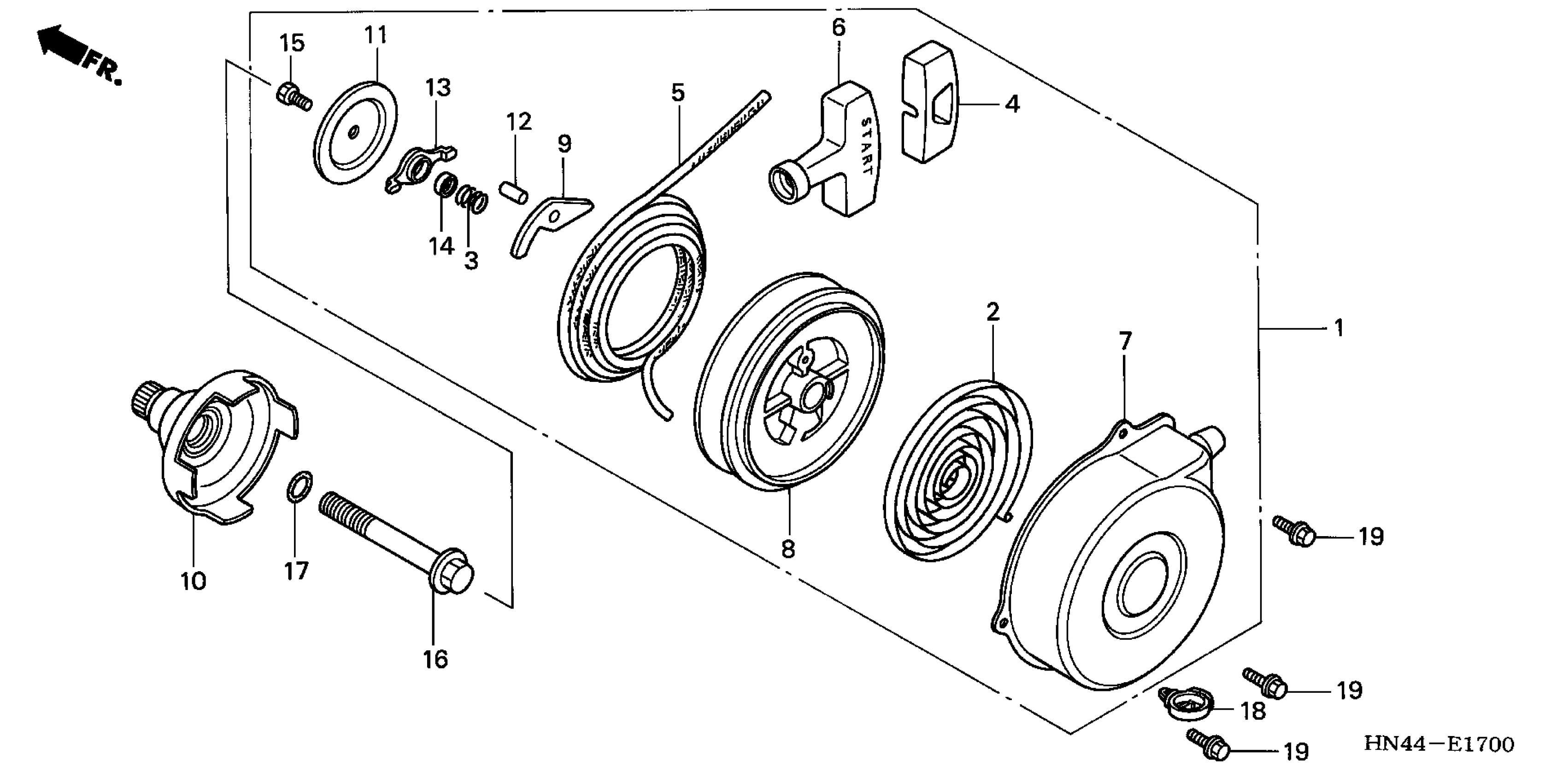

Honda TRX350FE2A (01) FOURTRAX RANCHER 4X4 ES, USA, VIN# 478TE254-14000001 RECOIL STARTER Diagram

STARTER ASSY., RECOIL

28400-HN5-671

Unavailable

SPRING, RECOIL STARTER

28402-HB6-004

$31.41

SPRING, FRICTION

28404-968-004

$3.38

CAP, KNOB

28405-HF7-004

Unavailable

ROPE, RECOIL STARTER

28407-HB6-004

Unavailable

KNOB, STARTER

28408-HF7-004

Unavailable

CASE, RECOIL STARTER

28410-HN5-671

Unavailable

REEL, RECOIL STARTER

28420-HN5-671

Unavailable

RATCHET, STARTER

28422-ZE1-003

$4.80

PULLEY, RECOIL

28430-HN5-670

Unavailable

PLATE, FRICTION

28431-ZE1-003

$5.08

PIN, STARTER RATCHET

28432-HB6-004

$2.48

GUIDE, RATCHET

28433-968-004

Unavailable

COVER, SPRING

28446-968-004

$5.84

BOLT

28448-HB6-004

Unavailable

BOLT, SPECIAL (12MM)

90081-HN5-670

$6.34

O-RING (11.5X2.3)

91303-679-003

$2.66

CLIP, WIRE HARNESS (BLACK)

91558-SD5-003

$7.56

BOLT, FLANGE (6X14)

96001-06014-00

$1.72
