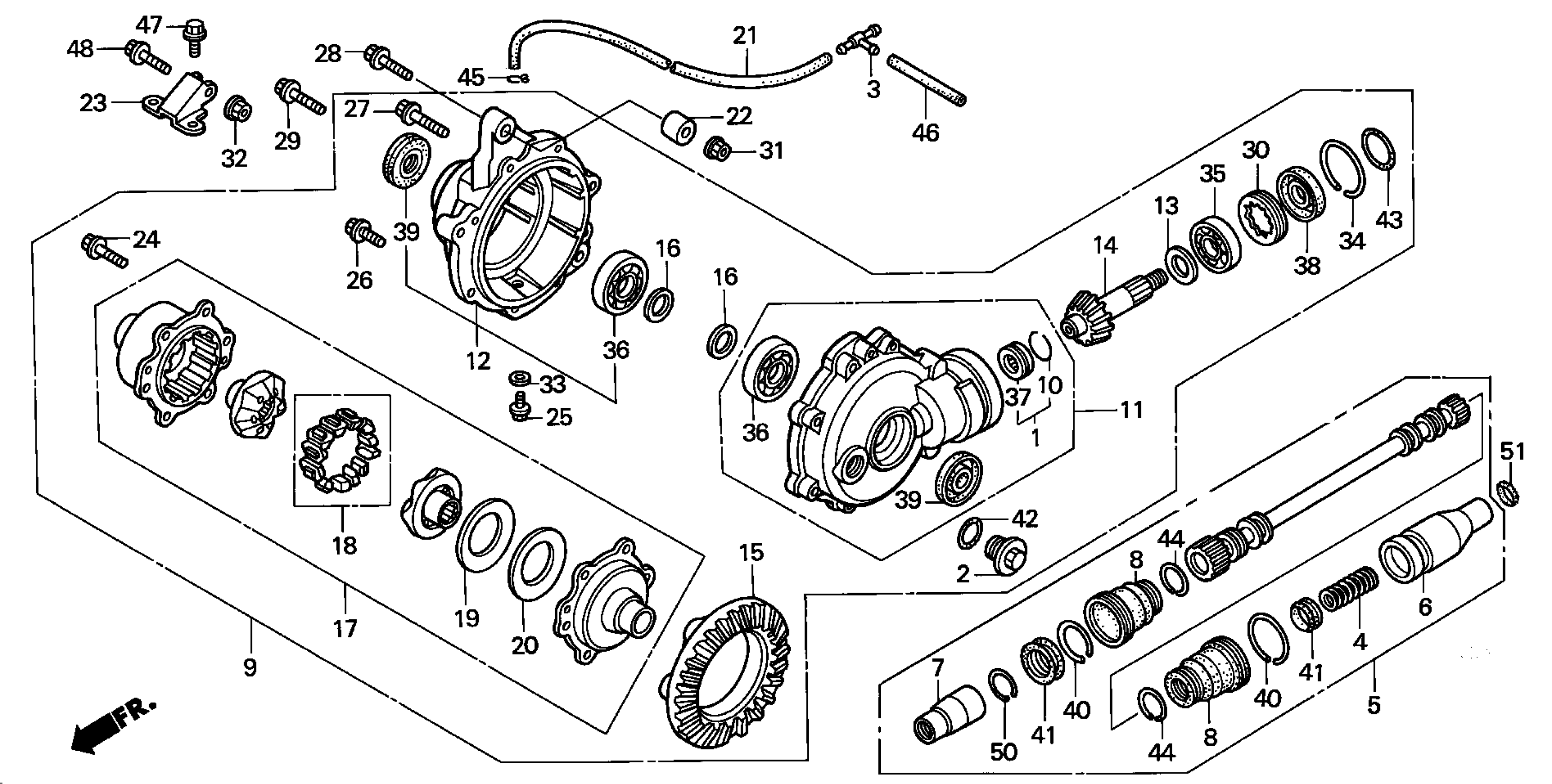

Honda TRX350FE2A (01) FOURTRAX RANCHER 4X4 ES, USA, VIN# 478TE254-14000001 FRONT FINAL GEAR Diagram

#

Description
Price

1

BEARING SET, NEEDLE

06910-HM7-610

$13.19

2

CAP, VALVE ADJ. This part replaces 12361-035-000.

12361-300-000

Unavailable

2

CAP, VALVE ADJ.

12361-300-000

Unavailable

2

CAP, VALVE ADJ. This part replaces 12361-371-980.

12361-300-000

Unavailable

3

JOINT, TUBE This part replaces 38581-671-003.

38581-679-003

$13.22

3

JOINT, TUBE

38581-679-003

$13.22

4

SPRING, SHAFT

40215-HM7-000

$1.87

5

SHAFT ASSY., FR. PROPELLER

40400-HN5-N00

$142.99

5

SHAFT ASSY., FR. PROPELLER This part replaces 40400-HN5-670.

40400-HN5-N00

$142.99

6

JOINT, FR. PROPELLER SHAFT

40402-HN5-670

$56.78

7

JOINT, FR. FINAL

40403-HN5-670

$51.29

8

BOOT B, PROPELLER

40420-HM7-A00

$12.01

9

GEAR ASSY., FR. FINAL

41400-HN5-670

$867.14

10

RING, STOPPER

41405-HA7-670

$2.80

11

CASE SUB-ASSY., FR. GEAR

41411-HN5-670

$155.90

12

COVER SUB-ASSY., FR. GEAR This part replaces 41420-HN5-670.

41420-HN5-671

$117.17

12

COVER SUB-ASSY., FR. GEAR

41420-HN5-671

$117.17

13

SHIM L, PINION GEAR (1.64)

41447-HM7-000

$8.46

13

SHIM M, PINION GEAR (1.70)

41448-HM7-000

$9.58

13

SHIM N, PINION GEAR (1.76)

41449-HM7-000

$9.09

13

SHIM A, PINION GEAR (1.82)

41451-HA0-000

$7.32

13

SHIM B, PINION GEAR (1.88)

41452-HA0-000

Unavailable

13

SHIM C, PINION GEAR (1.94)

41453-HA0-000

Unavailable

13

SHIM D, PINION GEAR (2.00)

41454-HA0-000

$7.32

13

SHIM E, PINION GEAR (2.06)

41455-HA0-000

Unavailable

13

SHIM F, PINION GEAR (2.12)

41456-HA0-000

Unavailable

13

SHIM G, PINION GEAR (2.18)

41457-HA0-000

Unavailable

14

GEAR, FR. PINION

41521-HN5-670

Unavailable

15

GEAR, FR. RING

41531-HN5-670

Unavailable

16

SHIM A, DIFFERENTIAL CASE (0.50)

41631-HC5-000

$11.32

16

SHIM B, DIFFERENTIAL CASE (0.55)

41632-HC5-000

$10.84

16

SHIM C, DIFFERENTIAL CASE (0.60)

41633-HC5-000

$10.84

16

SHIM D, DIFFERENTIAL CASE (0.65)

41634-HC5-000

$10.84

16

SHIM E, DIFFERENTIAL CASE (0.70)

41635-HC5-000

$10.84

16

SHIM F, DIFFERENTIAL CASE (0.75)

41636-HC5-000

$10.84

16

SHIM G, DIFFERENTIAL CASE (0.80)

41637-HC5-000

$10.84

16

SHIM H, DIFFERENTIAL CASE (0.85)

41638-HC5-000

$10.84

16

SHIM I, DIFFERENTIAL CASE (0.90)

41639-HC5-000

$10.84

16

SHIM J, DIFFERENTIAL CASE (0.95)

41640-HC5-000

$10.84

16

SHIM K, DIFFERENTIAL CASE (1.00)

41641-HC5-000

$11.32

16

SHIM L, DIFFERENTIAL CASE (1.05)

41642-HC5-000

$10.84

16

SHIM M, DIFFERENTIAL CASE (1.10)

41643-HC5-000

$10.84

16

SHIM N, DIFFERENTIAL CASE (1.15)

41644-HC5-000

$11.32

16

SHIM O, DIFFERENTIAL CASE (1.20)

41645-HC5-000

$10.84

16

SHIM P, DIFFERENTIAL CASE (1.25)

41646-HC5-000

$10.84

16

SHIM Q, DIFFERENTIAL CASE (1.30)

41647-HC5-000

$10.84

16

SHIM R, DIFFERENTIAL CASE (1.35)

41648-HC5-000

$10.84

16

SHIM S, DIFFERENTIAL CASE (1.40)

41649-HC5-000

$10.84

16

SHIM T, DIFFERENTIAL CASE (1.45)

41650-HC5-000

$10.84

16

SHIM U, DIFFERENTIAL CASE (1.50)

41651-HC5-000

$10.84

16

SHIM V, DIFFERENTIAL CASE (1.55)

41652-HC5-000

$10.84

16

SHIM W, DIFFERENTIAL CASE (1.60)

41653-HC5-000

$10.84

17

DIFFERENTIAL ASSY.

42400-HN0-671

$282.83

17

DIFFERENTIAL ASSY. This part replaces 42400-HN5-671.

42400-HN0-671

$282.83

18

FOLLOWER SET, CAM

42440-HN5-671

$52.25

19

SHIM A (1.3) This part replaces 42451-HN5-671.

42451-HN7-003

$1.88

19

SHIM A (1.3)

42451-HN7-003

$1.88

19

SHIM B (1.4) This part replaces 42452-HN5-671.

42452-HN7-003

$1.88

19

SHIM B (1.4)

42452-HN7-003

$1.88

19

SHIM C (1.5) This part replaces 42453-HN5-671.

42453-HN7-003

$1.88

19

SHIM C (1.5)

42453-HN7-003

$1.88

19

SHIM D (1.6) This part replaces 42454-HN5-671.

42454-HN7-003

$1.88

19

SHIM D (1.6)

42454-HN7-003

$1.88

19

SHIM E (1.7) This part replaces 42455-HN5-671.

42455-HN7-003

$1.88

19

SHIM E (1.7)

42455-HN7-003

$1.88

19

SHIM F (1.8)

42456-HN5-671

$1.88

19

SHIM G (1.9) This part replaces 42457-HN5-671.

42457-HN7-003

$1.88

19

SHIM G (1.9)

42457-HN7-003

$1.88

20

SPRING, DIFFERENTIAL SIDE CONED

42461-HN5-671

$14.19

21

TUBE, BREATHER (3.5X1050)

44121-HN5-670

$2.39

22

COLLAR, FR. ENGINE HANGER

50304-KS3-900

$8.20

23

BRACKET, FR. GEAR CASE

50350-HN5-670

$32.17

24

BOLT, UBS (8X17) This part replaces 90101-HA7-670.

90101-HN2-680

$3.91

25

BOLT, SEALING (8MM)

90109-371-000

$2.46

26

BOLT, FLANGE (8X27)

90133-MB0-000

$7.54

27

BOLT, FLANGE (10X35)

90134-HA0-000

$7.34

28

BOLT, FLANGE (10X62)

90151-HC5-000

$7.22

29

BOLT, FLANGE (10X48)

90154-HC5-000

$7.78

30

NUT, LOCK (60MM)

90244-HA0-000

$34.48

31

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.80

32

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.12

32

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.12

33

GASKET (8MM)

90471-580-000

$2.80

34

CLIP, PISTON PIN (1.2X18)

90601-430-000

$3.06

35

BEARING, RADIAL BALL (63/22) This part replaces 91001-MN8-911.

91002-KY4-901

$21.88

35

BEARING, RADIAL BALL (63/22) This part replaces 91001-436-003.

91002-KY4-901

$21.88

35

BEARING, RADIAL BALL (63/22)

91002-KY4-901

$21.88

36

BEARING, RADIAL BALL (29X52X12) (NTN)

91052-HC5-003

$33.03

36

BEARING, RADIAL BALL (29X52X12) (KOYO)

91052-HC5-004

$30.70

37

BEARING, NEEDLE (14X24.5X15) (NTN) This part replaces 91061-HA7-672.

91061-HC4-003

$39.01

37

BEARING, NEEDLE (14X24.5X15) (NTN)

91061-HC4-003

$39.01

38

OIL SEAL (30X64X11)

91251-HN5-671

$8.94

39

OIL SEAL (22X48X7) (ARAI)

91252-HC5-003

$8.42

40

BAND, BOOT (D27)

91302-HM7-A00

$7.38

41

SEAL, PROPELLER

91302-HN5-671

$3.48

42

O-RING (30.8MM)

91302-001-020

$3.41

43

O-RING (11X1.9) (NOK)

91303-HA0-004

$1.94

44

BAND, BOOT (D20)

91303-HM7-A00

$7.38

45

CLIP, TUBE (C6.5)

95002-35000

$0.68

46

BULK HOSE, VACUUM (3.5X1000) (3.5X250)

95005-35001-30M

$7.74

47

BOLT, FLANGE (8X16)

95701-08016-07

$1.59

48

BOLT, FLANGE (8X30)

95801-08030-00

$1.39

50

CLIP, NEEDLE THRUST BEARING (12MM)

91012-KF0-000

$2.80

51

O-RING (16X1.9)

91306-329-000

$2.78
