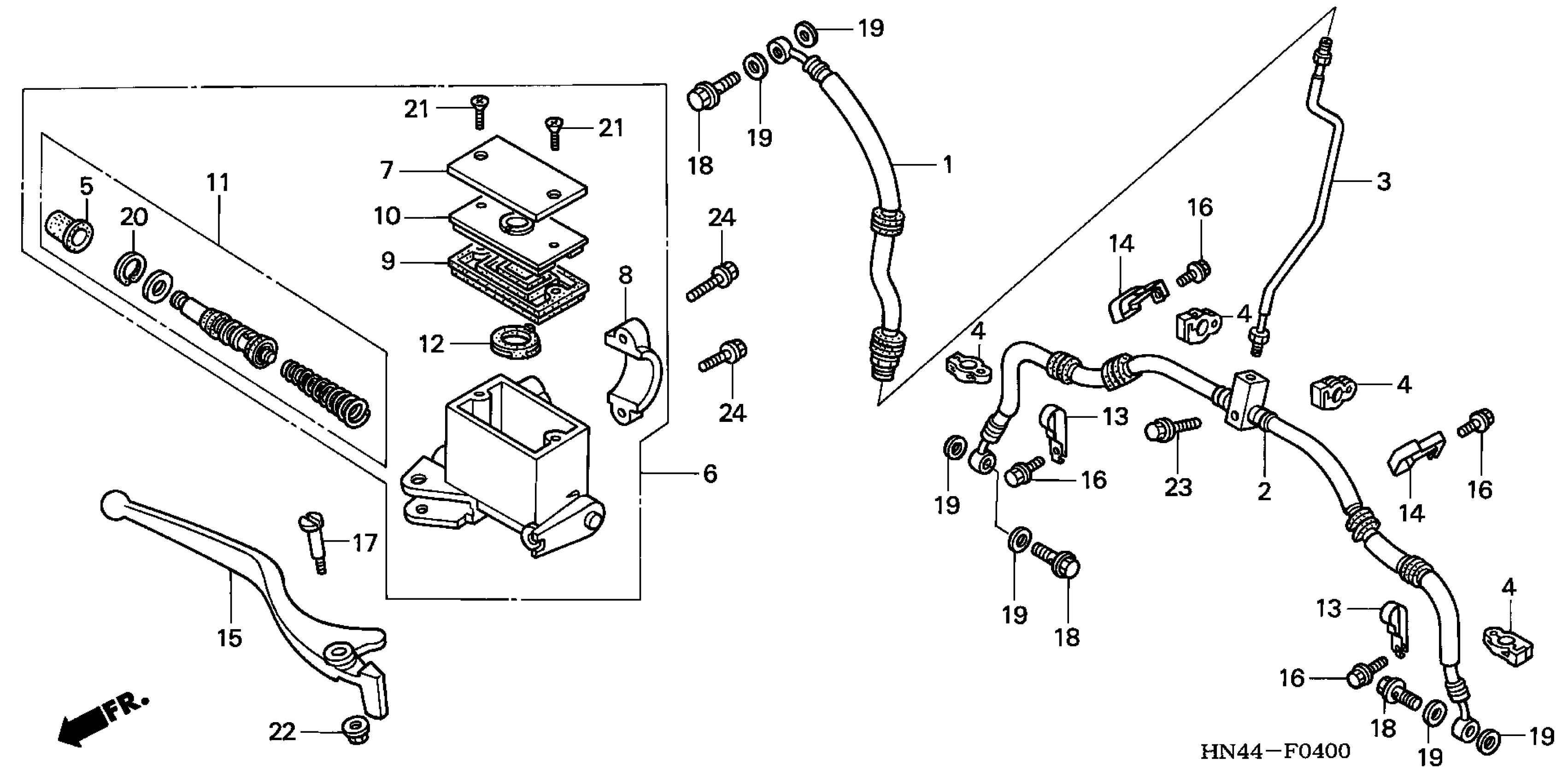

Honda TRX350FE2A (01) FOURTRAX RANCHER 4X4 ES, USA, VIN# 478TE254-14000001 FRONT BRAKE MASTER CYLINDER Diagram

HOSE ASSY., FR. BRAKE

45126-HN5-671

$14.05

HOSE B, FR. BRAKE

45127-HN5-671

$113.08

PIPE, FR. BRAKE

45128-HN5-670

Unavailable

CLIP, BRAKE HOSE

45401-HM5-850

$1.71

BOOT

45504-410-003

$10.93

MASTER CYLINDER SUB-ASSY., FR.

45510-HN5-671

$75.49

CAP, MASTER CYLINDER (COO)

45513-HR0-305

$3.87

CAP, MASTER CYLINDER (COO) This part replaces 45513-KK1-771.

45513-HR0-305

$3.87

HOLDER, MASTER CYLINDER

45517-166-006

$12.17

DIAPHRAGM

45520-MG7-006

$9.52

PLATE, DIAPHRAGM

45521-HA2-006

$9.75

MASTER CYLINDER SET

45530-471-831

Unavailable

SEPARATOR

46666-HB9-006

$8.42

CLAMP B, FR. BRAKE HOSE

51208-HN5-670

Unavailable

CLAMP A, FR. BRAKE HOSE

51207-HN5-670

$45.84

LEVER, R. HANDLEBAR

53175-HC0-670

Unavailable

BOLT, FLANGE (6X10)

90107-HC5-000

$2.12

BOLT, HANDLE LEVER PIVOT

90114-166-006

$6.04

BOLT, OIL (10X22)

90145-MS9-612

$6.82

WASHER, OIL BOLT

90545-300-000

$3.72

CIRCLIP

90651-MA5-671

$2.38

SCREW, FLAT (4X12)

93600-04012-0G

$0.83

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.83

NUT, FLANGE (6MM)

94050-06000

$0.59

BOLT, FLANGE (6X25)

95701-06025-07

$1.64

BOLT, FLANGE (6X22)

96001-06022-07

$1.68
