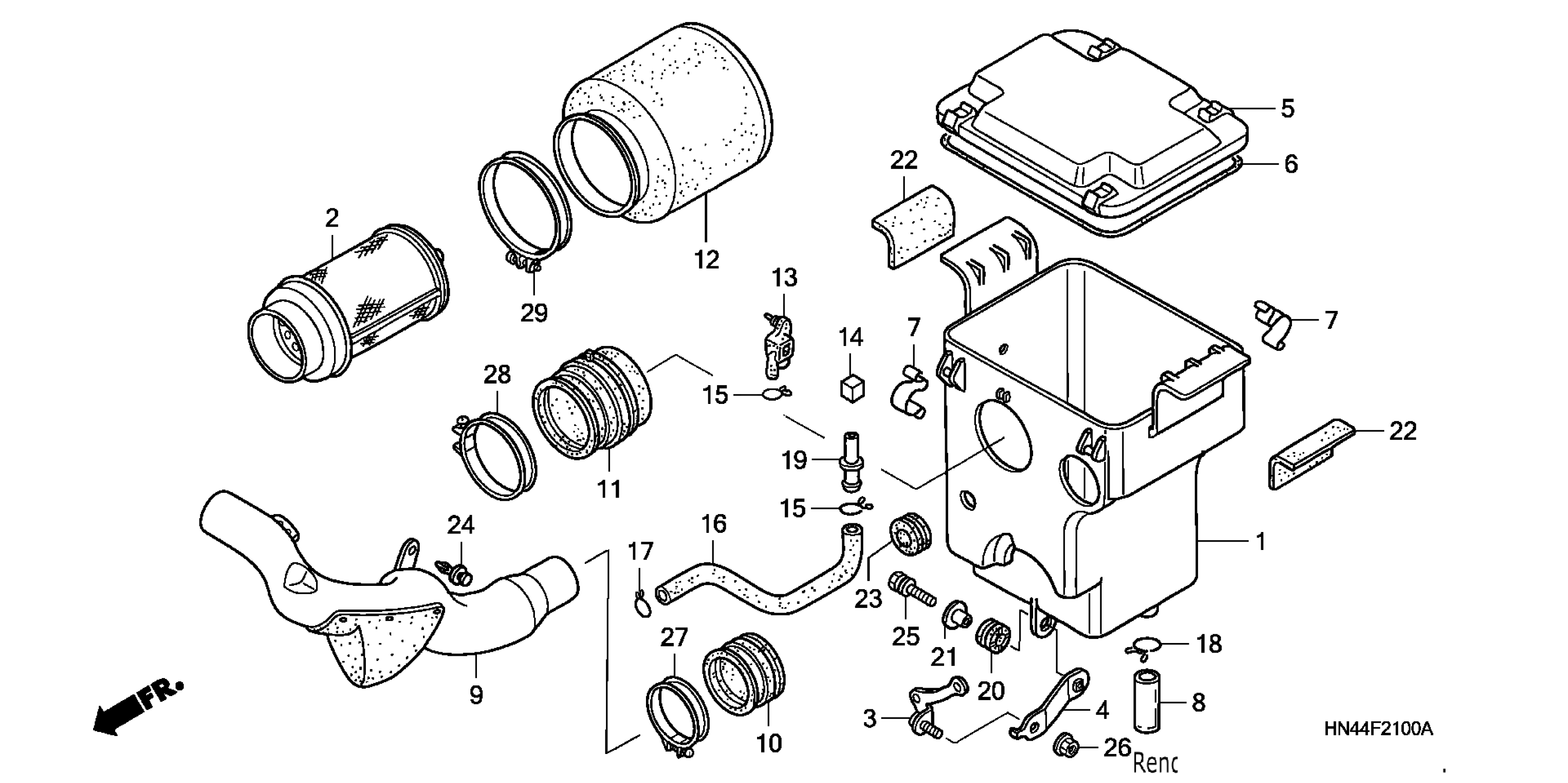

Honda TRX350FE2A (01) FOURTRAX RANCHER 4X4 ES, USA, VIN# 478TE254-14000001 AIR CLEANER Diagram

#

Description
Price

1

HOUSING, AIR CLEANER

17210-HN5-670

$34.80

2

BODY, AIR CLEANER

17211-HN5-670

$41.26

3

STAY A, AIR CLEANER

17212-HN5-670

$4.83

4

STAY B, AIR CLEANER

17213-HN5-670

$13.04

5

LID, AIR CLEANER HOUSING

17217-HN5-670

$10.52

6

SEAL, AIR CLEANER COVER

17219-HN5-670

$13.56

7

SPRING, AIR CLEANER HOUSING LID

17223-HM8-000

$1.65

8

TUBE, AIR CLEANER DRAIN

17224-HM5-930

$9.45

9

DUCT ASSY., SNORKEL

17250-HN5-N00

Unavailable

9

DUCT ASSY., SNORKEL This part replaces 17250-HN5-670.

17250-HN5-N00

Unavailable

10

SEAL, SNORKEL DUCT

17252-HN5-670

$4.51

11

TUBE, AIR CLEANER CONNECTING This part replaces 17253-HN5-670.

17253-HN5-M00

$5.16

12

ELEMENT, AIR CLEANER

17254-HN5-670

$18.91

13

JOINT, BREATHER

17255-HN5-670

$17.27

14

COVER, DUST

17256-HN5-670

$5.30

15

CLIP, BREATHER TUBE

17316-611-000

$8.28

16

TUBE, BREATHER

17366-HN5-670

$51.31

17

CLIP, SUB-TANK HOSE

17724-102-700

Unavailable

18

CLIP, AIR HOSE (21.5)

18532-634-670

$7.39

19

JOINT (TWO-WAY)

18631-MAH-710

$7.73

20

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.08

21

COLLAR, RADIATOR MOUNTING This part replaces 19052-MN8-000.

19052-MGH-640

$2.26

22

RUBBER, BATTERY CUSHION

31511-KE2-850

$3.52

23

GROMMET, RR. FENDER

80102-KFJ-900

$4.61

24

CLIP, SPLASH GUARD

90653-HC4-900

$0.54

25

BOLT-WASHER (6X25)

93404-06025-00

$1.00

26

NUT, FLANGE (6MM)

94050-06000

$0.59

27

BAND, AIR CLEANER CONNECTING TUBE (52)

95018-52250

$4.78

28

BAND, AIR CLEANER CONNECTING TUBE (60)

95018-60250

$5.81

29

BAND, AIR CLEANER CONNECTING TUBE (74)

95018-74250

$6.32
