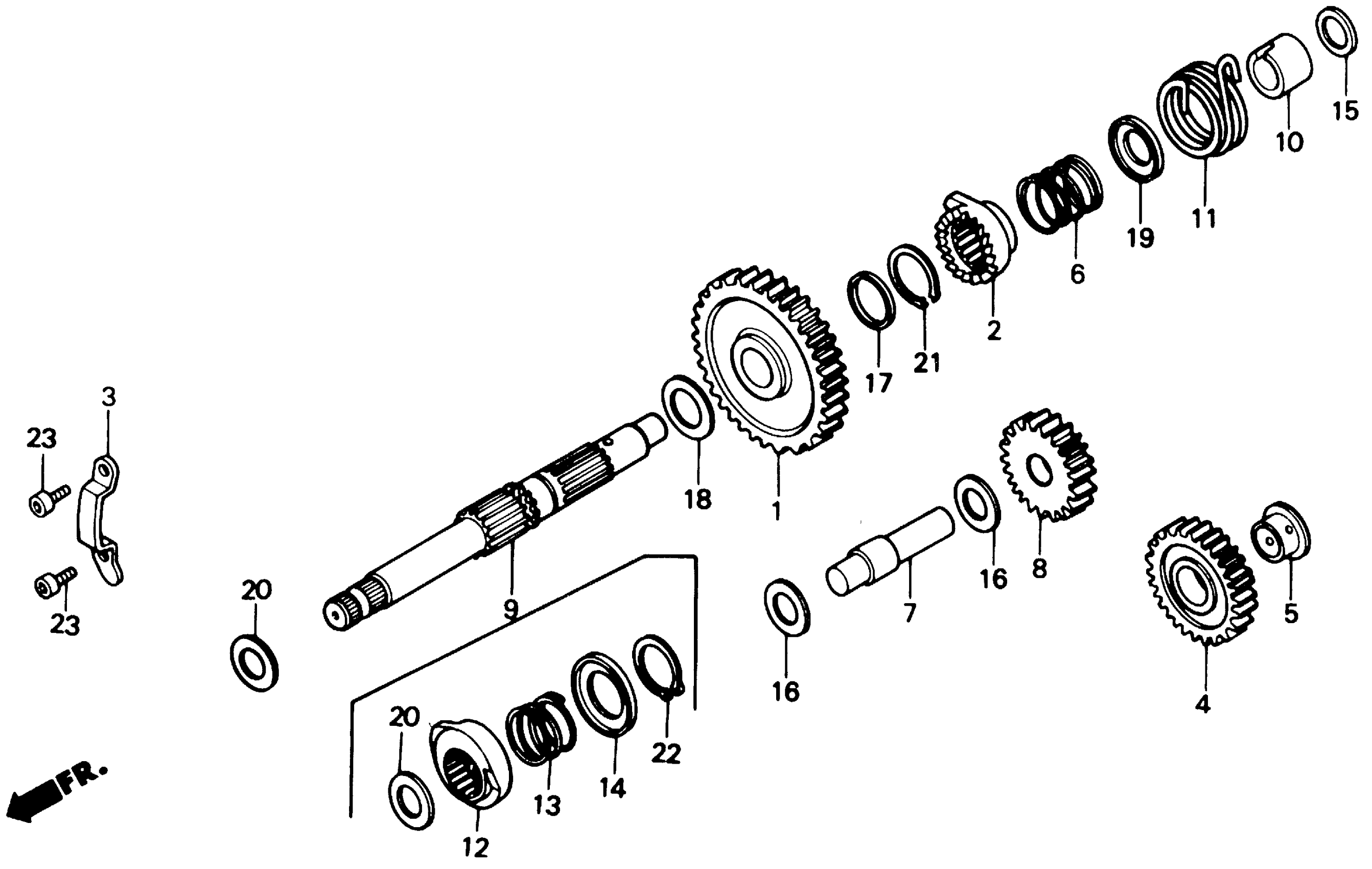

Honda TRX350DA (89) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH3TE071-KK200001 KICK STARTER SPINDLE Diagram

PINION, KICK STARTER (34T) (NOT AVAILABLE)

28211-HA7-670

Unavailable

RATCHET, KICK STARTER (NOT AVAILABLE)

28213-HA0-000

Unavailable

PLATE, KICK STOPPER (NOT AVAILABLE)

28215-HA0-000

Unavailable

GEAR, SECOND KICK IDLE (20T) (NOT AVAILABLE)

28221-HA5-000

Unavailable

BUSH (14MM)

28222-HA5-670

Unavailable

SPRING, KICK STARTER RATCHET

28223-HA0-000

Unavailable

SHAFT, FIRST KICK IDLE (NOT AVAILABLE)

28242-HA5-670

Unavailable

GEAR, FIRST KICK IDLE (16T)

28243-HA5-670

Unavailable

SPINDLE, KICK STARTER (33T)

28250-HA7-650

Unavailable

COLLAR, KICK STARTER (NOT AVAILABLE)

28255-HA5-000

Unavailable

SPRING, KICK STARTER (NOT AVAILABLE)

28261-HA5-000

Unavailable

WASHER B, THRUST (14MM)

90428-958-000

$4.66

WASHER, THRUST (15MM)

90451-107-000

$1.49

WASHER, THRUST (22MM)

90453-428-000

$2.90

WASHER, THRUST (22MM)

90456-323-000

Unavailable

WASHER, KICK RATCHET SPRING

90501-KF0-000

$6.74

WASHER, THRUST (20MM)

90454-428-000

$2.53

WASHER, THRUST (20X1.00) This part replaces 90554-700-000.

90454-428-000

$2.53

CIRCLIP (22MM)

90601-329-000

$2.67

BOLT, SOCKET (6X16)

96600-06016-10

$4.07

BOLT, SOCKET (6X16) This part replaces 96700-06016-10.

96600-06016-10

$4.07
