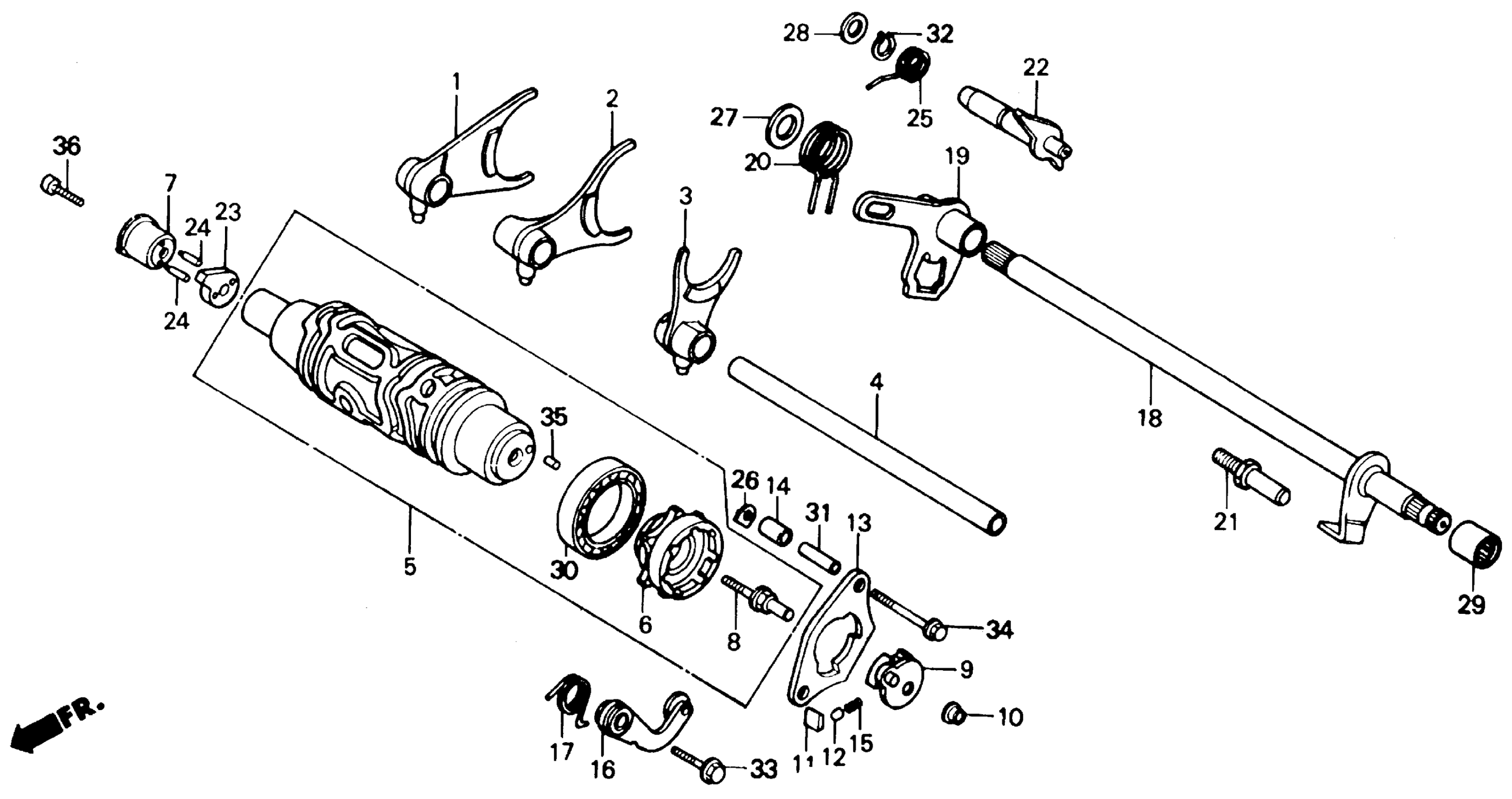

Honda TRX350DA (89) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH3TE071-KK200001 GEARSHIFT DRUM Diagram

#

Description
Price

1

FORK, R. GEARSHIFT

24211-HA0-010

Unavailable

2

FORK, CENTER GEARSHIFT (NOT AVAILABLE)

24212-HA0-000

Unavailable

3

FORK, L. GEARSHIFT

24213-HA0-000

Unavailable

4

SHAFT, GEARSHIFT FORK GUIDE This part replaces 24241-HA0-000.

24241-HM3-670

$35.30

4

SHAFT, GEARSHIFT FORK GUIDE

24241-HM3-670

$35.30

5

DRUM ASSY., GEARSHIFT

24300-HA0-003

Unavailable

6

CENTER, SHIFT DRUM

24312-HA0-004

Unavailable

7

ROTOR, NEUTRAL SWITCH

24314-HA0-000

Unavailable

8

PIN, SHIFTER

24315-HA0-000

$12.60

9

SHIFTER, DRUM

24321-HA0-004

Unavailable

10

COLLAR, SHIFTER

24322-HA0-000

$5.49

11

PAWL, RATCHET

24324-KA3-740

Unavailable

12

PLUNGER, PAWL This part replaces 24326-360-000.

24326-360-010

$5.19

12

PLUNGER, PAWL

24326-360-010

$5.19

13

PLATE, GUIDE

24328-HA0-000

Unavailable

14

COLLAR, GUIDE PLATE DISTANCE

24329-HA0-000

$5.81

15

SPRING, PAWL PLUNGER

24329-KA3-740

$2.92

16

STOPPER, GEARSHIFT DRUM

24430-HA0-000

Unavailable

17

SPRING, SHIFT DRUM STOPPER (NOT AVAILABLE)

24435-HA0-000

$3.17

18

SPINDLE, GEARSHIFT

24610-HA7-670

Unavailable

19

ARM, GEARSHIFT (NOT AVAILABLE)

24621-HA7-670

Unavailable

20

SPRING, GEARSHIFT RETURN

24651-HA0-000

Unavailable

21

PIN, GEARSHIFT RETURN SPRING

24652-HA0-000

$8.52

22

SHAFT, REVERSE STOPPER (NOT AVAILABLE)

24860-HA0-000

Unavailable

23

CAM, REVERSE STOPPER

24862-HA0-000

Unavailable

24

PIN, REVERSE STOPPER CAM

24863-HA0-000

Unavailable

25

SPRING, REVERSE STOPPER (NOT AVAILABLE)

24867-HA0-000

Unavailable

26

PLATE, BEARING HOLDER

90441-HA0-000

Unavailable

27

WASHER, THRUST (13MM)

90451-459-770

$2.48

28

WASHER (12MM) This part replaces 90546-HA0-000.

90546-KF0-000

Unavailable

28

WASHER (12MM)

90546-KF0-000

Unavailable

29

BEARING, NEEDLE (19X13X12) (NOT AVAILABLE)

91002-459-773

Unavailable

30

BEARING (16005) (KOYO)

91051-719-003

$28.92

31

PIN, DOWEL (8X26.5)

91104-HA0-000

$4.74

32

CIRCLIP, OUTER (12MM)

94510-12000

$1.78

33

BOLT, FLANGE (6X32)

95701-06032-00

$1.89

34

BOLT, FLANGE (6X40)

95701-06040-08

$1.80

35

ROLLER (4X8)

96220-40080

$1.49

36

BOLT, SOCKET (6X20)

96700-06020-10

Unavailable
