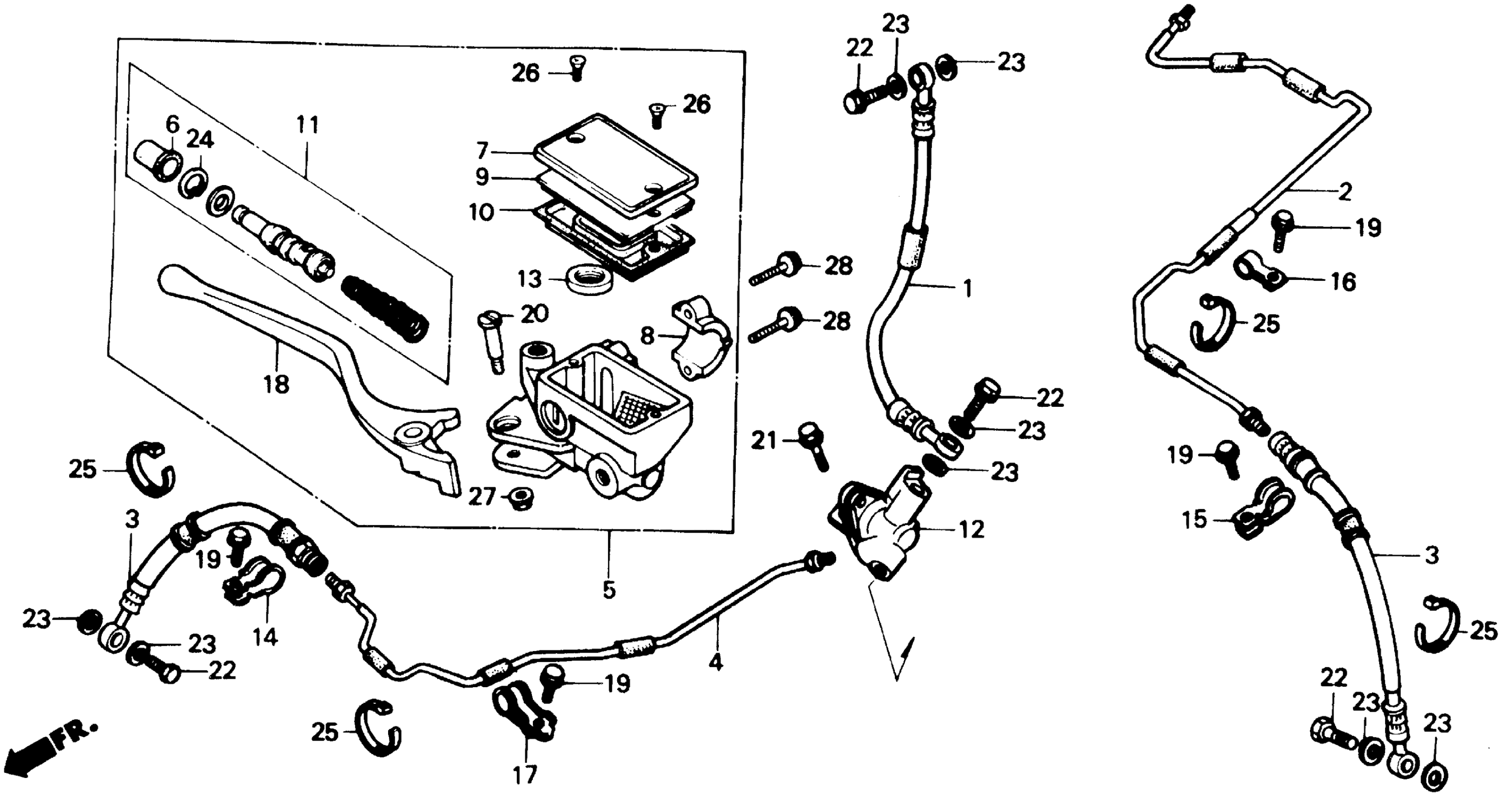

Honda TRX350DA (89) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH3TE071-KK200001 FRONT BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

HOSE A, FR. BRAKE This part replaces 45126-HA7-671.

45126-HA7-881

Unavailable

2

PIPE A, FR. BRAKE (NOT AVAILABLE)

45127-HA7-670

Unavailable

3

HOSE B, FR. BRAKE This part replaces 45128-HA7-671.

45128-HA7-881

Unavailable

4

PIPE B, FR. BRAKE

45129-HA7-670

Unavailable

5

MASTER CYLINDER ASSY., FR. BRAKE (NOT AVAILABLE)

45500-HA8-771

Unavailable

6

BOOT

45504-410-003

$12.16

7

CAP, MASTER CYLINDER

45513-KE5-026

$41.77

8

HOLDER, MASTER CYLINDER

45517-MA5-671

$29.30

9

PLATE, DIAPHRAGM

45518-MB4-671

$12.13

10

DIAPHRAGM

45520-MA5-672

$18.13

11

MASTER CYLINDER SET

45530-HA8-771

$40.36

12

VALVE ASSY., PRESSURE CONTROL (NOT AVAILABLE)

46210-HA7-671

Unavailable

13

SEPARATOR

46666-961-013

$8.68

14

CLAMP, R. FR. BRAKE HOSE (NOT AVAILABLE)

51201-HA7-650

Unavailable

15

CLAMP, L. FR. BRAKE HOSE (NOT AVAILABLE)

51202-HA7-650

Unavailable

16

CLAMP B, FR. BRAKE HOSE

51203-HA7-670

Unavailable

17

CLAMP C, FR. BRAKE HOSE (NOT AVAILABLE)

51204-HA7-670

Unavailable

18

LEVER, R. HANDLE

53175-HA8-680

$29.11

19

BOLT, SPECIAL FLANGE (6X10)

90107-HA7-670

Unavailable

20

BOLT, HANDLE LEVER PIVOT

90114-MA5-671

$9.43

21

BOLT, FLANGE (8X10)

90116-965-000

Unavailable

22

BOLT, OIL (10X22) (SAGA) This part replaces 90145-KM3-750.

90145-KM3-751

$11.02

23

WASHER, OIL BOLT

90545-300-000

$3.99

24

CIRCLIP

90651-MA5-671

$2.66

25

BAND, SELF-LOCK

91058-MG9-681

$2.21

26

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

26

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

27

NUT, FLANGE (6MM)

94050-06000

$1.49

28

BOLT, FLANGE (6X22)

96001-06022-07

$1.85
