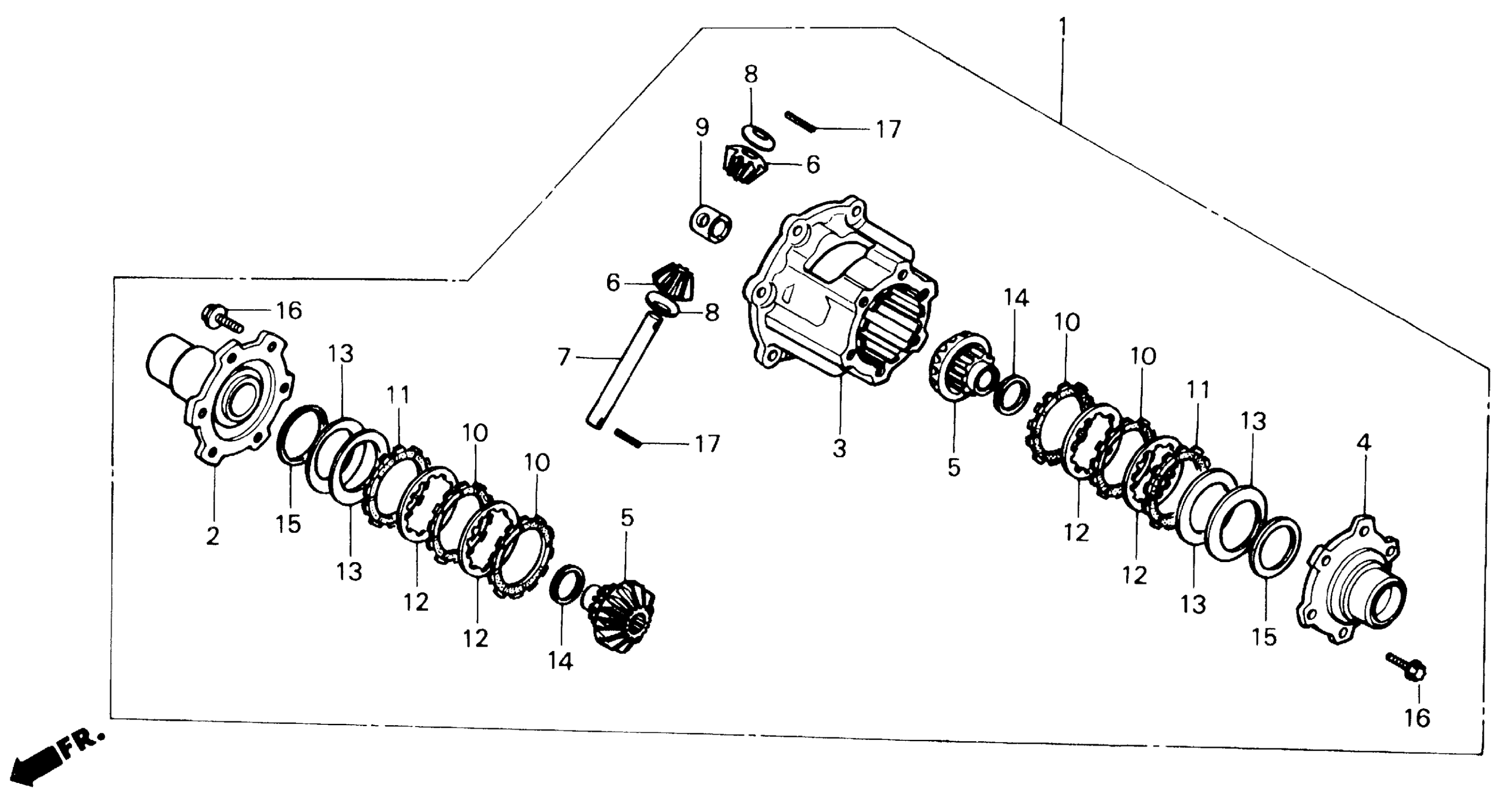

Honda TRX350DA (89) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH3TE071-KK200001 DIFFERENTIAL GEAR Diagram

#

Description
Price

1

DIFFERENTIAL ASSY. (NOT AVAILABLE)

42400-HA7-771

Unavailable

2

CAP, L. DIFFERENTIAL CASE

42411-HA7-771

Unavailable

3

CASE, DIFFERENTIAL (NOT AVAILABLE)

42421-HA7-671

Unavailable

4

CAP, R. DIFFERENTIAL CASE

42422-HA7-771

Unavailable

5

GEAR, DIFFERENTIAL SIDE (NOT AVAILABLE)

42431-HA7-671

Unavailable

6

PINION, DIFFERENTIAL (NOT AVAILABLE)

42433-HA7-671

Unavailable

7

SHAFT, DIFFERENTIAL PINION

42434-HA7-670

Unavailable

8

WASHER, DIFFERENTIAL PINION SIDE

42435-HA7-671

Unavailable

9

COLLAR, DIFFERENTIAL CENTER

42436-HA7-670

Unavailable

10

DISK A, DIFFERENTIAL CLUTCH FRICTION

42532-HA7-671

Unavailable

11

DISK B, DIFFERENTIAL CLUTCH FRICTION

42533-HA7-671

Unavailable

12

PLATE, DIFFERENTIAL CLUTCH

42534-HA7-671

Unavailable

13

SPRING, DIFFERENTIAL CLUTCH CONED

42535-HA7-671

Unavailable

14

WASHER (32X26X0.6)

42538-HA7-771

Unavailable

15

SEAT A, DIFFERENTIAL CLUTCH SPRING (1.00)

42541-HA7-671

$10.25

15

SEAT B, DIFFERENTIAL CLUTCH SPRING (1.20)

42542-HA7-671

$10.42

15

SEAT C, DIFFERENTIAL CLUTCH SPRING (1.40)

42543-HA7-671

$10.20

15

SEAT D, DIFFERENTIAL CLUTCH SPRING (1.60)

42544-HA7-671

Unavailable

15

SEAT E, DIFFERENTIAL CLUTCH SPRING (1.80)

42545-HA7-671

Unavailable

16

BOLT, TORX (8X16)

90105-HA7-671

Unavailable

17

PIN, SPRING (4X22)

94305-40222

$1.83
