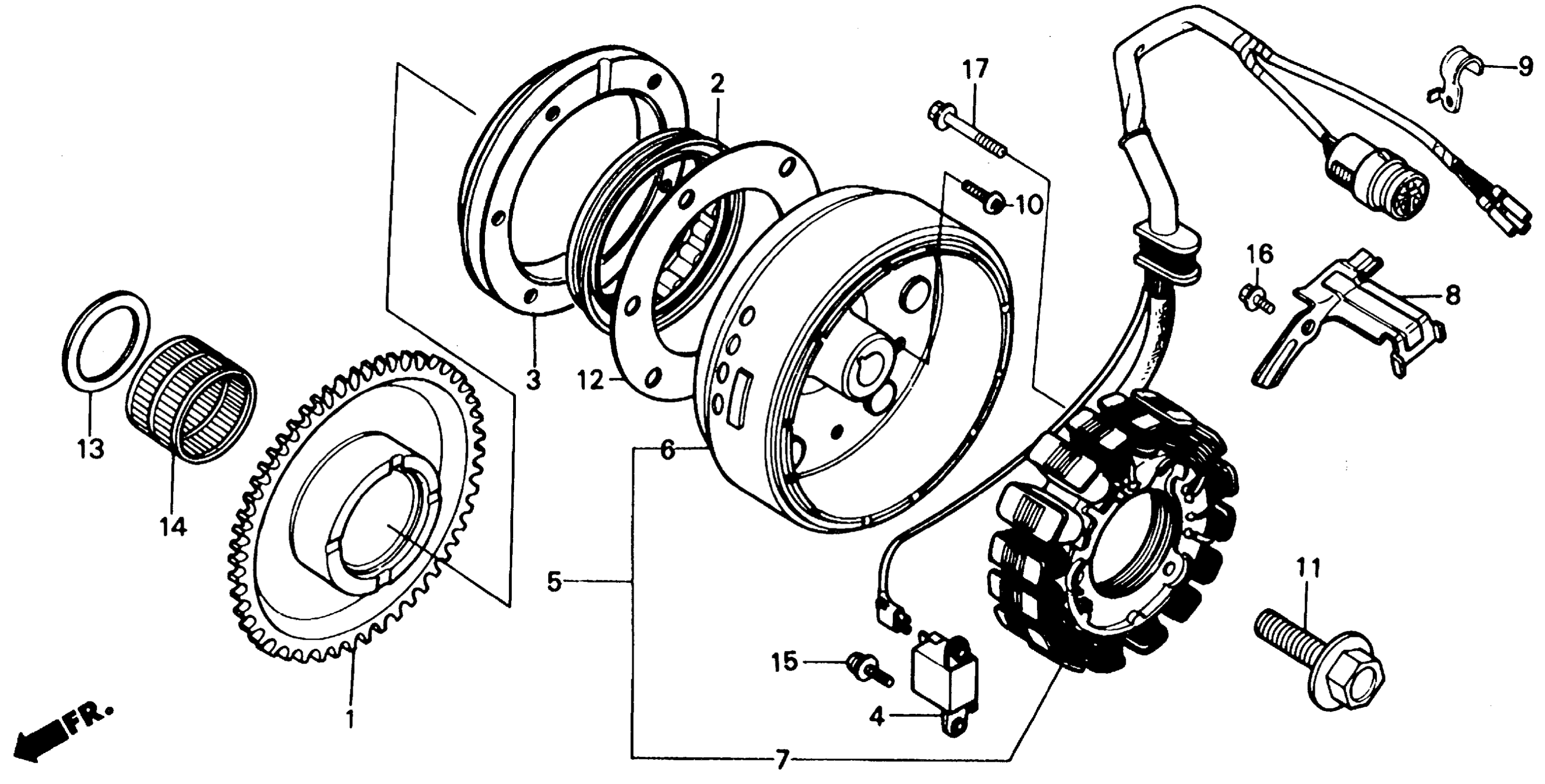

Honda TRX350DA (89) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH3TE071-KK200001 ALTERNATOR Diagram

GEAR, STARTING DRIVEN (70T) (NOT AVAILABLE)

28110-HA7-770

Unavailable

CLUTCH, ONE-WAY This part replaces 28125-HA7-673.

28126-HA7-673

$85.98

CLUTCH, ONE-WAY

28126-HA7-673

$85.98

CLUTCH, STARTER ONE-WAY (OUTER)

28126-HA7-672

Unavailable

GENERATOR ASSY., PULSE (TEC)

30300-HA0-033

$40.74

GENERATOR ASSY., PULSE (TEC) | Use up to Engine SN 8211301 This part replaces 30300-HA0-023.

30300-HA0-033

$40.74

GENERATOR ASSY., FLYWHEEL TYPEA.C. (DENSO) (NOT AVAILABLE)

31100-HA7-651

Unavailable

FLYWHEEL (DENSO)

31110-HA7-751

Unavailable

STATOR (DENSO) (NOT AVAILABLE)

31120-HA7-651

Unavailable

CLAMP, WIRE (NOT AVAILABLE)

32111-HA7-670

Unavailable

CLAMP, ALTERNATOR CABLE

32922-HA0-000

Unavailable

BOLT, SOCKET (8MM) (NOT AVAILABLE)

90010-HA0-680

Unavailable

BOLT, FLANGE (12X45) This part replaces 90023-HA7-670.

90024-MT3-000

Unavailable

BOLT, FLANGE (12X45)

90024-MT3-000

Unavailable

WASHER, ONE-WAY SIDE (NOT AVAILABLE)

90408-HA7-670

Unavailable

WASHER, THRUST (30.1MM)

90458-422-000

Unavailable

BEARING, NEEDLE (30X35X26ZW) (NOT AVAILABLE)

91061-KE5-003

Unavailable

SCREW-WASHER (5X14)

93892-05014-08

$1.49

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

BOLT, FLANGE (6X28)

96001-06028-00

$2.06
