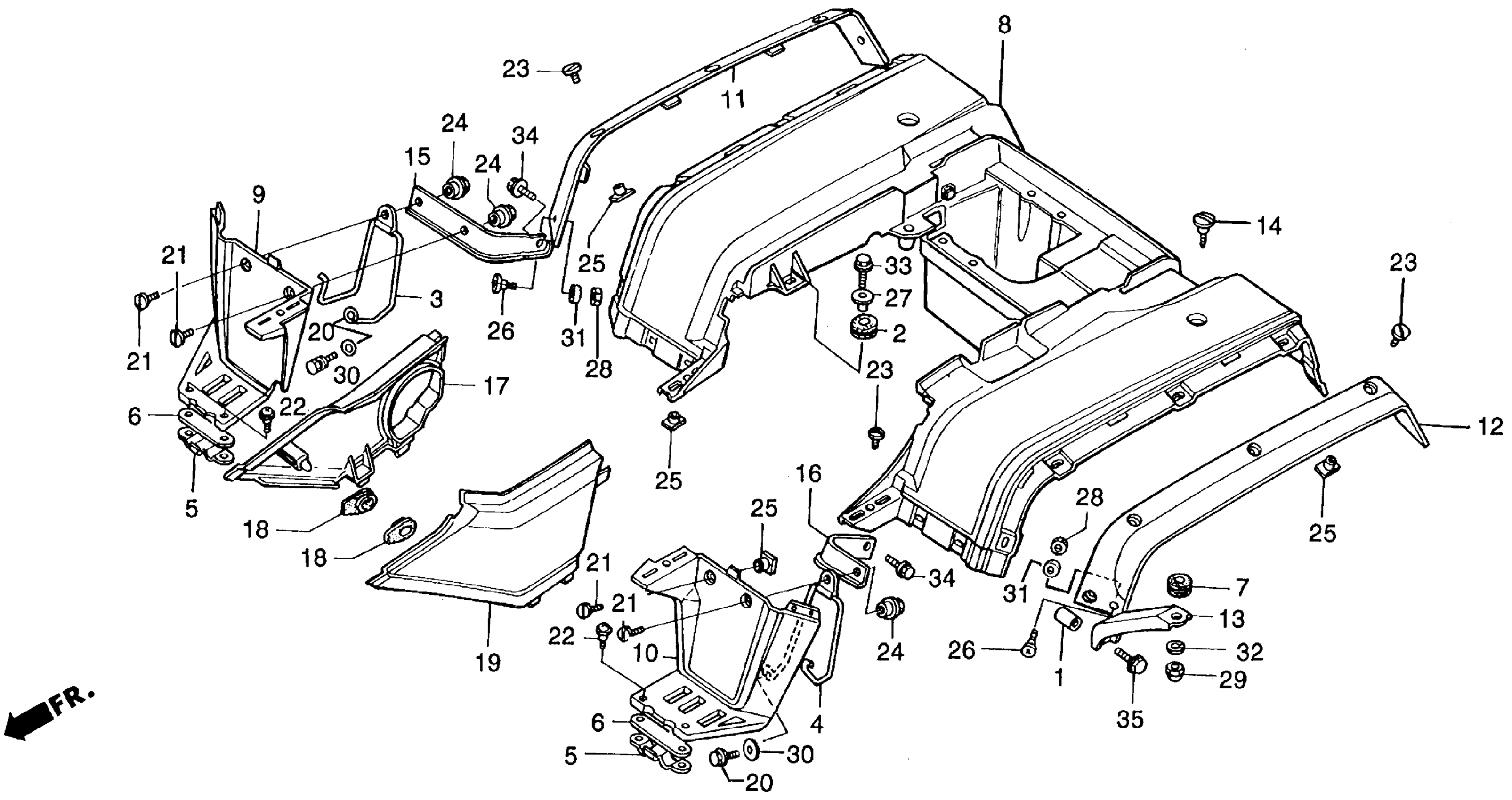

Honda TRX350DA (89) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH3TE071-KK200001 350D REAR FENDER 89 Diagram

#

Description
Price

1

COLLAR, CUSHION RUBBER BUSH (SHOWA)

52486-074-000

$3.77

2

GROMMET, FR. FENDER SETTING

66101-HA7-670

$3.24

3

STAY, R. RR. SPLASH GUARD

80123-HA7-832

Unavailable

4

STAY, L. RR. SPLASH GUARD | Use up to Frame SN KK200587 This part replaces 80124-HA7-832.

80124-HA7-833

Unavailable

4

STAY, L. RR. SPLASH GUARD

80124-HA7-833

Unavailable

5

HOLDER, SPLASH GUARD (LOWER) This part replaces 80127-HC4-770.

80127-HM5-850

$36.74

5

HOLDER, SPLASH GUARD (LOWER)

80127-HM5-850

$36.74

6

HOLDER, SPLASH GUARD (UPPER)

80128-HA7-830

$5.85

7

RUBBER, RR. FENDER

80152-958-680

$5.14

8

FENDER, RR. *R109* This part replaces 80210-HA7-740ZA.

80210-HA7-741ZA

Unavailable

9

SPLASH GUARD, R. RR. FOOT

80211-HA7-831

Unavailable

10

SPLASH GUARD, L. RR. FOOT

80212-HA7-831

Unavailable

11

SPLASH GUARD, R. RR. SIDE

80213-HA7-830

Unavailable

12

SPLASH GUARD, L. RR. SIDE

80214-HA7-830

Unavailable

13

STAY B, RR. FENDER

81302-HA7-670

Unavailable

14

BOLT, FENDER SETTING

81313-HA7-670

Unavailable

15

STAY, R. RR. FENDER (LOWER) (NOT AVAILABLE)

81401-HA7-771

Unavailable

16

STAY, L. RR. FENDER This part replaces 81402-HA7-771.

81402-HA7-880

Unavailable

16

STAY, L. RR. FENDER

81402-HA7-880

Unavailable

17

COVER, R. SI *R109* This part replaces 83600-HA7-770ZA.

83600-HA7-771ZA

Unavailable

18

GROMMET, R. SIDE COVER (NOT AVAILABLE)

83615-HA7-670

Unavailable

19

COVER, L. SI *R109* This part replaces 83700-HA7-670ZA.

83700-HA7-671ZA

Unavailable

20

BOLT, FLANGE (6X20)

90010-ML0-720

$2.92

21

SCREW, SPLASH GUARD (NOT AVAILABLE)

90102-HA7-672

Unavailable

22

SCREW, SPLASH GUARD

90103-HC4-770

$2.23

23

SCREW, SPLASH GUARD

90120-HA7-670

$10.13

24

NUT, COLLAR (NOT AVAILABLE)

90201-HA7-670

Unavailable

25

NUT, SPECIAL (6X7)

90303-HA0-680

$3.85

26

SCREW, SPECIAL (6X12) This part replaces 90380-MA6-000.

90380-MA6-010

$3.01

26

SCREW, SPECIAL (6X12)

90380-MA6-010

$3.01

27

COLLAR, BATTERY BOX This part replaces 90501-HA7-670.

90504-KPS-900

$2.94

27

COLLAR, BATTERY BOX

90504-KPS-900

$2.94

28

NUT, HEX. (6MM)

94001-06080-0S

$1.49

29

NUT, CAP (8MM)

94021-08000-0S

$1.55

30

WASHER, PLAIN (6MM)

94103-06000

$1.49

31

WASHER, PLAIN (6MM)

94103-06800

$1.49

32

WASHER, SPRING (8MM)

94111-08800

$1.49

33

BOLT, FLANGE (6X20)

95701-06020-08

$1.49

34

BOLT, FLANGE (8X14)

95701-08014-08

$1.80

35

BOLT, FLANGE (8X40)

95701-08040-08

$2.28
