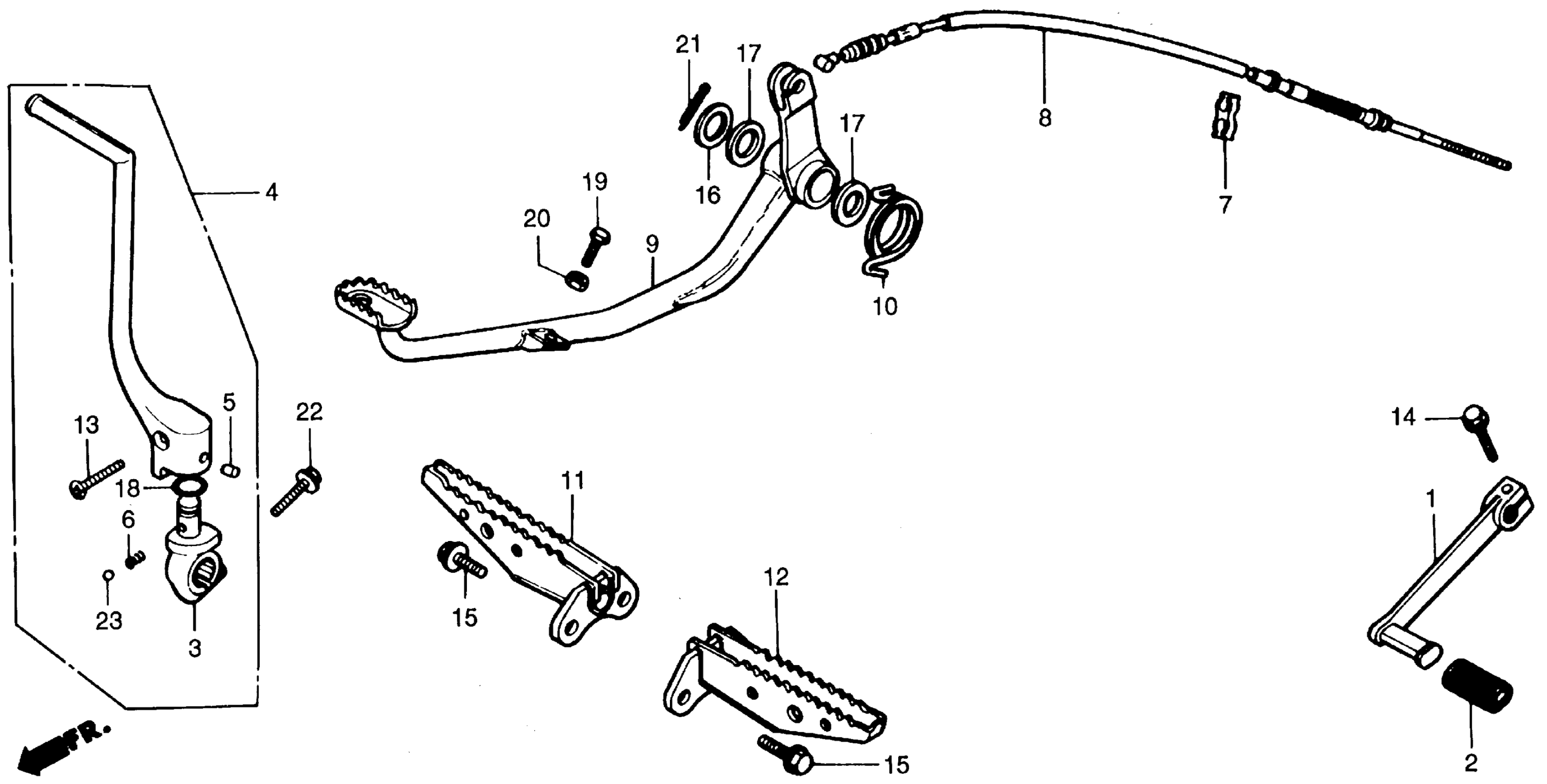

Honda TRX350DA (88) FOURTRAX FOREMAN 4X4, JPN, VIN# JH3TE071-JK100003 TO JH3TE071-JK110676 STEP Diagram

#

Description
Price

1

PEDAL, GEARSHIFT (NOT AVAILABLE)

24700-HA7-670

Unavailable

2

RUBBER, CHANGE PEDAL

24781-371-000

$5.13

3

JOINT, KICK ARM

28241-HA0-000

Unavailable

4

ARM ASSY., KICK STARTER

28300-HA7-770

Unavailable

5

PLUG, KICK ARM

28302-965-000

$2.59

6

SPRING, KICK STARTER STOPPER

28333-124-000

$2.26

7

CLAMP, IGNITION WIRE

32802-MB2-000

Unavailable

8

CABLE, FOOT BRAKE

43470-HA7-770

Unavailable

9

PEDAL, RR. BRAKE (NOT AVAILABLE)

46500-HA7-670

Unavailable

10

SPRING, BRAKE RETURN (NOT AVAILABLE)

46514-HA7-670

Unavailable

11

BAR, STEP (NOT AVAILABLE) This part replaces 50616-HA7-650.

50616-HA7-653

Unavailable

13

SCREW (6X28) | Use up to Frame SN JK107429

90104-965-003

Unavailable

13

SCREW, OVAL (6X28) | Use from Frame SN JK107430

90101-HC4-000

Unavailable

14

BOLT, FLANGE (6X20)

90118-968-000

$4.24

15

BOLT, UBS (10X48)

90163-HA8-000

Unavailable

16

WASHER (17.5MM)

90512-303-000

$1.77

17

DUST SEAL (17X23X3) (NOK)

91206-968-003

$3.69

17

DUST SEAL (17X23X3) (NOK) This part replaces 91206-968-004.

91206-968-003

$3.69

18

O-RING (14MM) (ARAI)

91353-671-003

$2.73

19

BOLT, HEX. (6X20) This part replaces 92020-06020-0A.

92101-06020-0A

$1.49

19

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

20

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM)

94001-06200-0S

$1.49

21

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

21

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

21

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

21

PIN, SPLIT (3.0X45)

94201-30450

$1.49

22

BOLT, FLANGE (8X28)

95701-08028-08

$2.06

23

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
