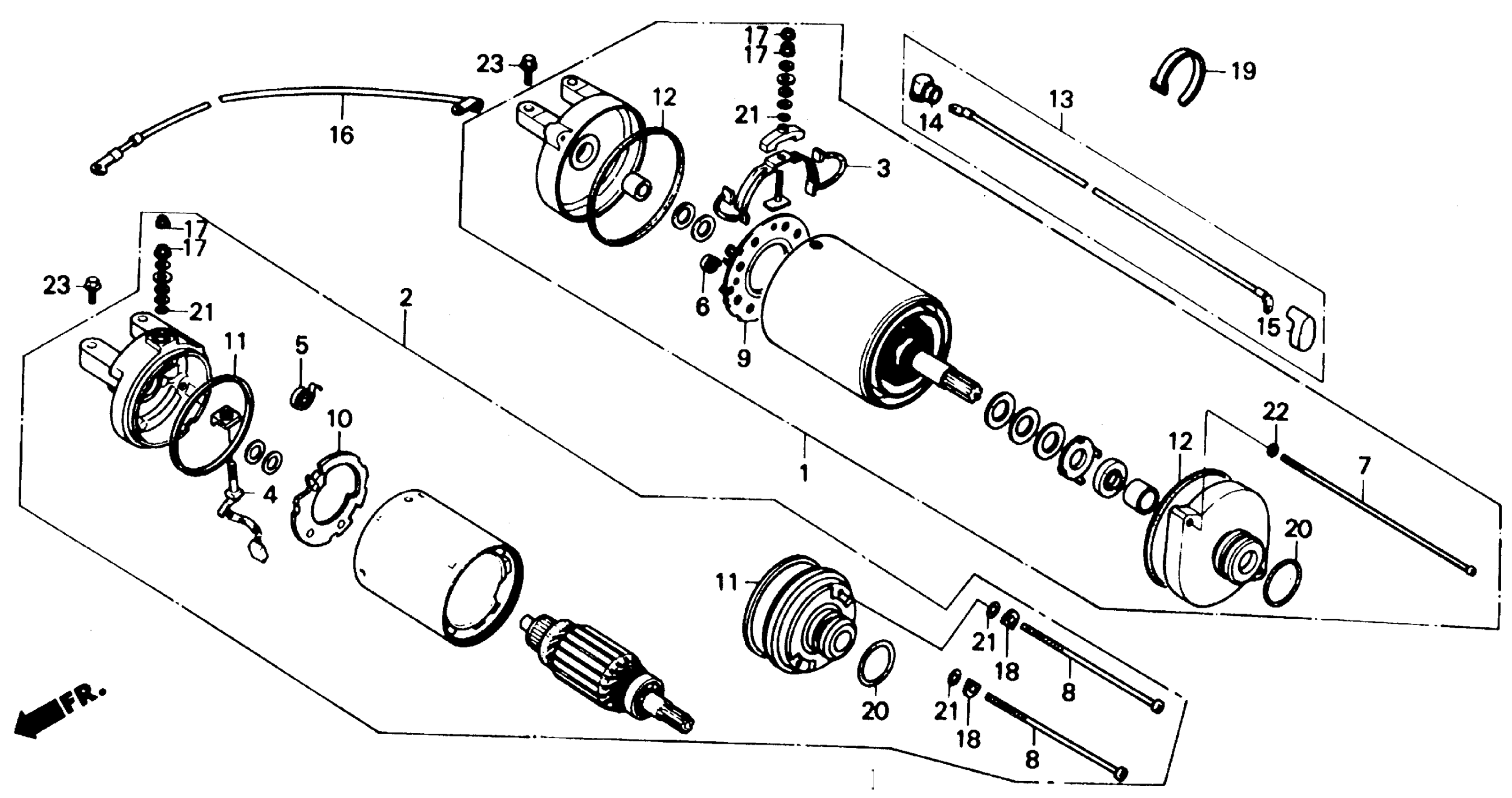

Honda TRX350DA (88) FOURTRAX FOREMAN 4X4, JPN, VIN# JH3TE071-JK100003 TO JH3TE071-JK110676 STARTER MOTOR Diagram

#

Description
Price

1

STARTER MOTOR ASSY. | Use up to Engine SN 8207621 This part replaces 31200-HA7-771.

31200-HA7-773

Unavailable

1

STARTER MOTOR ASSY. | Use up to Engine SN 8207621 This part replaces 31200-HA7-772.

31200-HA7-773

Unavailable

2

STARTER MOTOR ASSY. | Use from Engine SN 8207622 This part replaces 31200-HA7-772.

31200-HA7-773

Unavailable

3

TERMINAL SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8) | Use up to Engine SN 8207621

31201-KG7-000

$31.18

4

TERMINAL SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-13) | Use from Engine SN 8207622

31201-KS5-901

$24.71

5

SPRING, CARBON BRUSH | Use from Engine SN 8207622

31204-KS5-901

$2.92

6

SPRING, CARBON BRUSH | Use up to Engine SN 8207621

31204-MA6-000

$5.72

7

BOLT, SETTING (NOT AVAILABLE) | Use up to Engine SN 8207621

31205-HA0-000

Unavailable

8

BOLT, SETTING | Use from Engine SN 8207622

31205-MN4-008

$5.80

9

HOLDER SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8) | Use up to Engine SN 8207621

31206-MM5-008

$19.33

9

HOLDER SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8) | Use up to Engine SN 8207621 This part replaces 31206-HA0-771.

31206-MM5-008

$19.33

10

HOLDER SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-13) | Use from Engine SN 8207622

31206-KW1-901

$26.42

11

RING | Use from Engine SN 8207622

31207-KS5-901

$3.12

12

RING, SEAL | Use up to Engine SN 8207621

31207-179-711

$4.22

13

CABLE, STARTER MOTOR

32402-HA7-670

Unavailable

14

COVER, STARTER MOTOR TERMINAL

32411-230-000

$6.40

14

COVER, STARTER MOTOR TERMINAL This part replaces 32411-253-000.

32411-230-000

$6.40

15

COVER, MAGNETIC SWITCH TERMINAL This part replaces 32415-HA7-670.

32416-HB6-000

Unavailable

16

CABLE, BATTERY GROUND

32601-HA7-670

Unavailable

17

NUT-WASHER (6MM)

90071-MB0-000

$1.97

18

WASHER, STEEL PLATE | Use from Engine SN 8207622

90122-MN4-008

$2.97

19

BAND, WIRE HARNESS

90652-MB0-000

$3.15

20

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

$6.34

20

O-RING (24.4X3.1)

91312-MG7-003

$6.34

21

O-RING (4X2) | Use up to Engine SN 8207621

91320-MB0-000

$2.43

21

O-RING (4X2) | Use from Engine SN 8207622

91320-MB0-000

$2.43

22

WASHER, SPRING (5MM) | Use up to Engine SN 8207621

94111-05000

$1.49

23

BOLT, FLANGE (6X22)

96001-06022-00

$1.49
