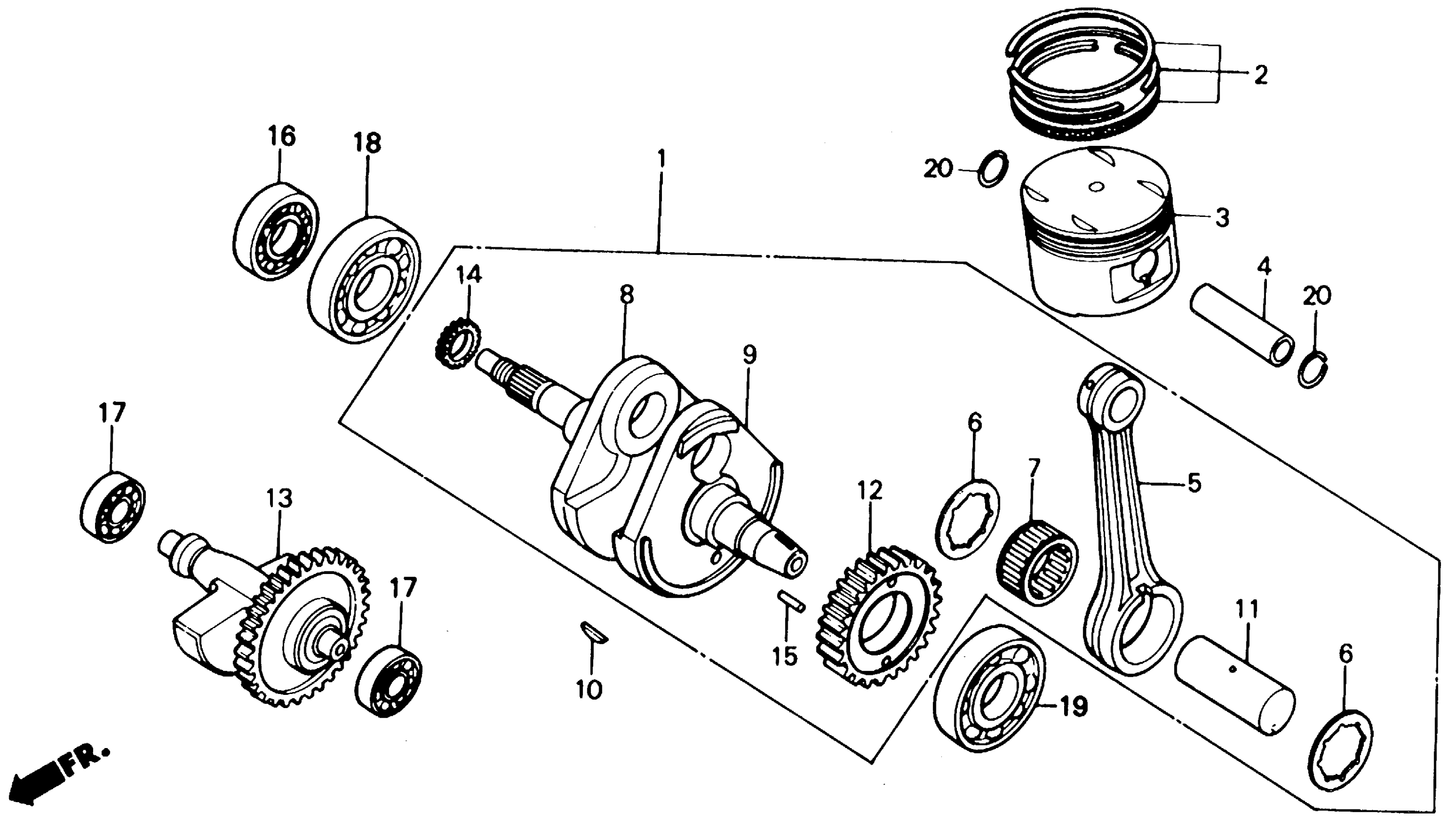

Honda TRX350DA (88) FOURTRAX FOREMAN 4X4, JPN, VIN# JH3TE071-JK100003 TO JH3TE071-JK110676 CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT

13000-HA7-771

Unavailable

1

CRANKSHAFT This part replaces 13000-HA7-770.

13000-HA7-771

Unavailable

2

RING SET, PISTON (STD)

13011-HA5-305

$57.72

2

RING SET, PISTON (OVER SIZE) (0.25) | (Optional).

13021-HA5-305

Unavailable

2

RING SET, PISTON (OVER SIZE) (0.50) | (Optional).

13031-HA5-305

Unavailable

2

RING SET, PISTON (OVER SIZE) (0.75) (NOT AVAILABLE) | (Optional).

13041-HA5-305

Unavailable

2

RING SET, PISTON (1.00) (NOT AVAILABLE) | (Optional).

13051-HA5-305

Unavailable

3

PISTON (STD) (NOT AVAILABLE)

13101-HA5-010

Unavailable

3

PISTON (OVER SIZE) (0.25) (NOT AVAILABLE) | (Optional).

13102-HA5-305

Unavailable

3

PISTON (0.50) (NOT AVAILABLE) | (Optional).

13103-HA5-305

Unavailable

3

PISTON (OVER SIZE) (0.75) | (Optional).

13104-HA5-305

Unavailable

3

PISTON (1.00) | (Optional).

13105-HA5-305

Unavailable

4

PIN, PISTON

13111-HA5-000

Unavailable

5

ROD, CONNECTING

13201-HA7-670

Unavailable

6

PLATE, CONNECTING ROD SIDE

13202-429-300

Unavailable

7

BEARING, CONNECTING ROD (WHITE) (NOT AVAILABLE)

13213-HA5-003

Unavailable

7

BEARING, CONNECTING ROD (RED)

13211-HA5-003

Unavailable

7

BEARING, CONNECTING ROD (BLUE)

13212-HA5-003

Unavailable

8

CRANKSHAFT, R. (NOT AVAILABLE)

13311-HA7-770

Unavailable

9

CRANKSHAFT, L. (NOT AVAILABLE)

13321-HA7-770

Unavailable

10

KEY, SPECIAL WOODRUFF (25X18)

13331-357-000

$3.60

11

PIN, CRANK (NOT AVAILABLE)

13381-HA5-300

Unavailable

12

GEAR, BALANCER DRIVE (34T)

13410-HA0-300

Unavailable

13

SHAFT, BALANCER

13420-HA7-770

Unavailable

14

GEAR, OIL PUMP DRIVE (24T)

15130-HA0-300

Unavailable

15

PIN, STOPPER (NA USE ALT:13000-HN2-000)

90701-HA0-000

Unavailable

16

BEARING, RADIAL BALL

91001-KE5-018

Unavailable

16

BEARING, RADIAL BALL (6303SP)

91009-HA0-004

$39.30

17

BEARING, RADIAL BALL RSH (6203)

91003-HA7-672

$26.81

18

BEARING, RADIAL BALL (40X76X17.5) (KOYO) This part replaces 91010-HA0-004.

91010-HC4-004

Unavailable

18

BEARING, RADIAL BALL (40X76X17.5) (KOYO)

91010-HC4-004

Unavailable

19

BEARING, RADIAL BALL

91001-KE5-018

Unavailable

19

BEARING, RADIAL BALL This part replaces 91001-KE5-008.

91001-KE5-018

Unavailable

20

CLIP, PISTON PIN (21MM)

94601-21000

$1.49
