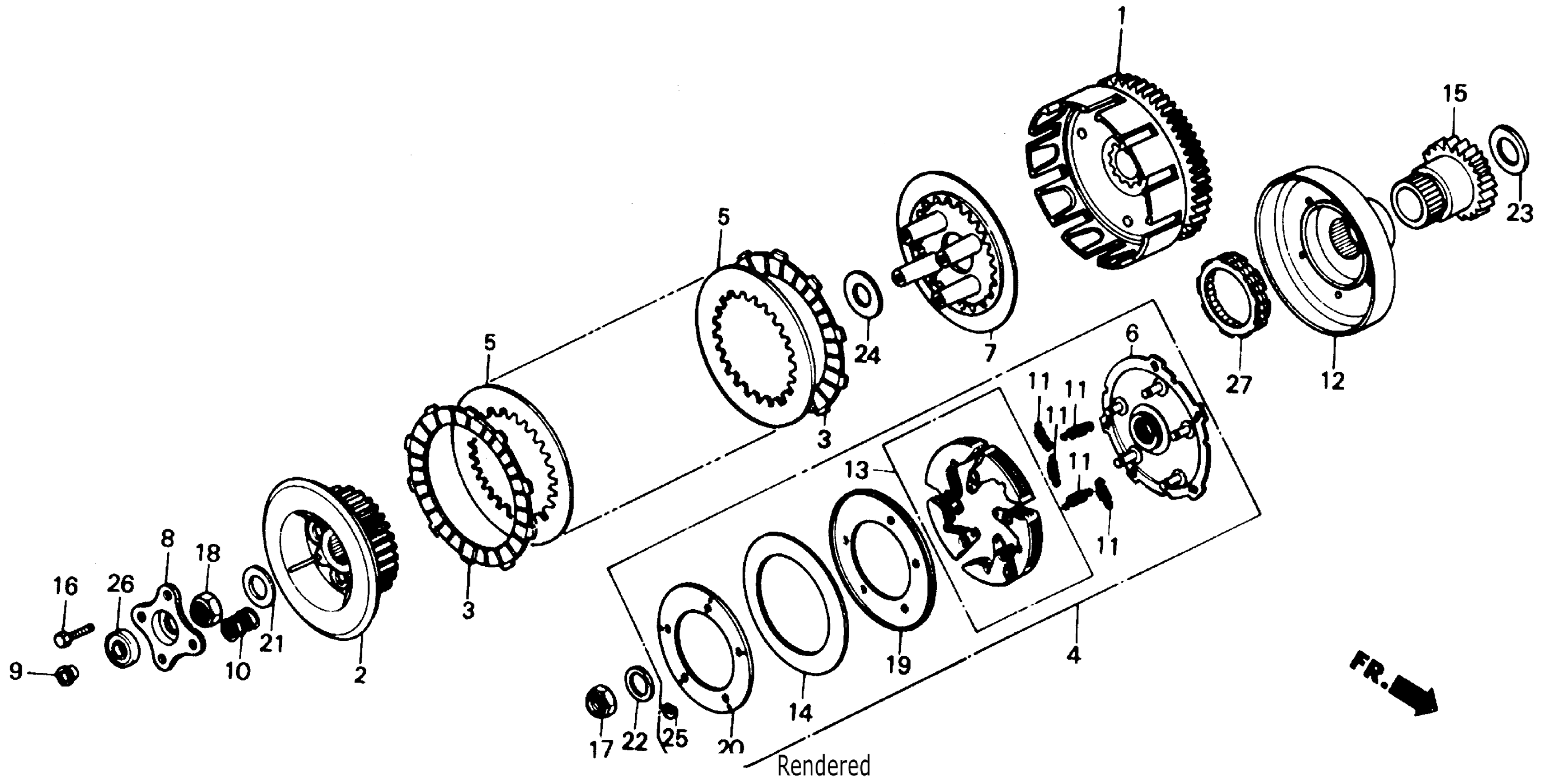

Honda TRX350DA (88) FOURTRAX FOREMAN 4X4, JPN, VIN# JH3TE071-JK100003 TO JH3TE071-JK110676 CLUTCH Diagram

#

Description
Price

1

CLUTCH (OUTER)

22100-HA7-770

Unavailable

2

CENTER, CLUTCH

22120-HA7-670

Unavailable

3

DISK, CLUTCH FRICTION

22201-ML4-610

$16.40

3

DISK, CLUTCH FRICTION This part replaces 22201-377-000.

22201-ML4-610

$16.40

5

PLATE, CLUTCH This part replaces 22321-KF0-000.

22321-KF0-770

$14.92

5

PLATE, CLUTCH

22321-KF0-770

$14.92

6

PLATE, DRIVE (NOT AVAILABLE)

22350-HA7-650

Unavailable

7

PLATE, CLUTCH PRESSURE

22351-HA7-670

Unavailable

8

CAP, CLUTCH LIFTER (NOT AVAILABLE)

22366-HA0-010

Unavailable

9

PIECE, CLUTCH LIFTER (NOT AVAILABLE)

22367-HA0-003

Unavailable

10

SPRING, CLUTCH

22401-HA7-670

$4.94

11

SPRING, CLUTCH DRIVE This part replaces 22451-HA7-650.

22451-HC4-000

$5.79

11

SPRING, CLUTCH DRIVE

22451-HC4-000

$5.79

12

CLUTCH (OUTER) (NOT AVAILABLE)

22500-HA7-670

Unavailable

13

WEIGHT SET, CLUTCH This part replaces 22535-HA7-670.

22535-HA7-305

Unavailable

14

SPRING, CONE DISK

22714-HA0-010

Unavailable

15

GEAR, DRIVE

23120-HA7-771

Unavailable

15

GEAR, DRIVE This part replaces 23120-HA7-770.

23120-HA7-771

Unavailable

16

BOLT, HEX. (6X28)

90001-HA5-000

$4.04

17

NUT, LOCK (20MM)

90235-HA0-680

$11.54

18

NUT, LOCK (18MM)

90236-HA0-000

$10.45

19

WASHER (64X122X1.0)

90406-HA7-671

Unavailable

20

WASHER (64X105X1.6)

90407-HA7-671

$18.18

21

WASHER (18MM)

90432-KE5-000

$4.85

22

WASHER, SPRING (20MM)

90432-426-000

$9.98

23

WASHER, THRUST (27X40) This part replaces 90457-HA0-000.

90457-HC4-000

Unavailable

23

WASHER, THRUST (27X40)

90457-HC4-000

Unavailable

24

WASHER, THRUST (22X45X0.8)

90458-KE8-000

$3.97

25

CIRCLIP (7MM)

90605-166-720

$1.80

26

BEARING, RADIAL BALL (16003) This part replaces 91008-KK6-000.

91011-KK6-013

$15.40

26

BEARING, RADIAL BALL (16003) This part replaces 91008-362-000.

91011-KK6-013

$15.40

26

BEARING, RADIAL BALL (16003) This part replaces 91010-HC0-003.

91011-KK6-013

$15.40

27

CLUTCH, ONE-WAY This part replaces 91101-HA7-671.

91101-HA7-674

Unavailable

27

CLUTCH, ONE-WAY This part replaces 91101-HA7-672.

91101-HA7-674

Unavailable
